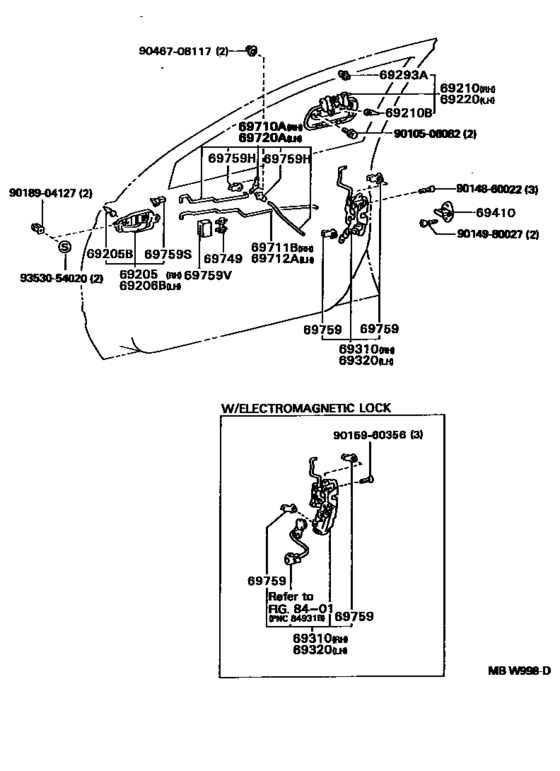

Front Door Lock & Handle ([08.1992 - ] (9208- )) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69205
|
69205
69205-20120-B1 Handle Sub-Assy, Front Door Inside, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
69205-20120-B1 |
from US $24.12 |
||
|
69205
|
69205
69205-20120-E1
Handle Sub-Assy, Front Door Inside, Rh
[08.1994 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
69205-20120-E1 |
— | ||
| replacement | |||||
|
69205
|
69205
69205-20120-B0 Handle Sub-Assy, Front Door Inside, Rh (GRAY)[08.1994 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
69205-20120-B0 |
US $26.03 |
||
|
69205B
|
69205B
90541-04014 Cushion, Console Box[08.1992 - 08.1996] AT19#,CT19#,ST19# |
90541-04014 |
from US $1.23 |
||
|
69206B
|
69206B
69206-20120-B1 Handle Sub-Assy, Front Door Inside, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
69206-20120-B1 |
US $26.03 |
||
|
69206B
|
69206B
69206-20120-E1
Handle Sub-Assy, Front Door Inside, Lh
[08.1994 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
69206-20120-E1 |
— | ||
| replacement | |||||
|
69206B
|
69206B
69206-20120-B0 Handle Sub-Assy, Front Door Inside, Lh (GRAY)[08.1994 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
69206-20120-B0 |
US $26.03 |
||
|
69210
|
69210
69210-20280-A0
Handle Assy, Front Door, Outside Rh
[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI SUPER WHITE 2,040 |
69210-20280-A0 |
— | ||
|
69210
|
69210
69210-20280-B0
Handle Assy, Front Door, Outside Rh
[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI DARK BLUEISH GRAY ME,183 |
69210-20280-B0 |
— | ||
|
69210
|
69210
69210-20280-C0
Handle Assy, Front Door, Outside Rh
[08.1994 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI BLACK ME,205 |
69210-20280-C0 |
— | ||
|
69210
|
69210
69210-20280-D2
Handle Assy, Front Door, Outside Rh
[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI WINE RED MICA,3J8 |
69210-20280-D2 |
— | ||
|
69210
|
69210
69210-20280-F0
Handle Assy, Front Door, Outside Rh
[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI PALE YELLOW OPAL,574 |
69210-20280-F0 |
— | ||
|
69210
|
69210
69210-20280-G4
Handle Assy, Front Door, Outside Rh
[04.1996 - 08.1996] AT19#..SX,SXI DK GREEN MICA,6M1; AT19#,CT190..SG,SGI ｶﾗ- ﾊﾟﾂｹ-ｼﾞ OR ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,DK GREEN MICA,6M1 |
69210-20280-G4 |
— | ||
|
69210
|
69210
69210-20280-J2
Handle Assy, Front Door, Outside Rh
[08.1994 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI DK.BLUE MM,8G5 |
69210-20280-J2 |
— | ||
|
69210B
|
69210B
90541-04018 Cushion(For Front Door Inside Handle)[08.1992 - 08.1996] AT19#,CT19#,ST19# |
90541-04018 |
US $2.56 |
||
|
69220
|
69220
69220-20280-A0
Handle Assy, Front Door Outside, Lh
[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI SUPER WHITE 2,040 |
69220-20280-A0 |
— | ||
|
69220
|
69220
69220-20280-B0
Handle Assy, Front Door Outside, Lh
[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI DARK BLUEISH GRAY ME,183 |
69220-20280-B0 |
— | ||
|
69220
|
69220
69220-20280-C0
Handle Assy, Front Door Outside, Lh
[08.1994 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI BLACK ME,205 |
69220-20280-C0 |
— | ||
|
69220
|
69220
69220-20280-D2
Handle Assy, Front Door Outside, Lh
[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI WINE RED MICA,3J8 |
69220-20280-D2 |
— | ||
|
69220
|
69220
69220-20280-F0
Handle Assy, Front Door Outside, Lh
[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI PALE YELLOW OPAL,574 |
69220-20280-F0 |
— | ||
|
69220
|
69220
69220-20280-G4
Handle Assy, Front Door Outside, Lh
[04.1996 - 08.1996] AT19#..SX,SXI DK GREEN MICA,6M1; AT19#,CT190..SG,SGI ｶﾗ- ﾊﾟﾂｹ-ｼﾞ OR ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,DK GREEN MICA,6M1 |
69220-20280-G4 |
— | ||
|
69220
|
69220
69220-20280-J2
Handle Assy, Front Door Outside, Lh
[08.1994 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI DK.BLUE MM,8G5 |
69220-20280-J2 |
— | ||
|
69293A
|
69293A
69293-12030 Snap, Front Door Outside Handle[08.1992 - 08.1996] AT19#,CT19#,ST19# 右側 |
69293-12030 |
from US $1.99 |
||
|
69293A
|
69293A
69293-12040 Snap, Front Door Outside Handle[08.1992 - 08.1996] AT19#,CT19#,ST19# 左側 |
69293-12040 |
from US $2 |
||
|
69310
|
69310
69030-20530 Lock Assy, Front Door, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
69030-20530 |
US $257.71 |
||
|
69320
|
69320
69040-20570 Lock Assy, Front Door, Lh[08.1992 - 08.1996] AT19#,ST19#..SL,SX,SXI |
69040-20570 |
US $215.49 |
||
|
69410
|
69410
69410-87001 Plate Assy, Front Door Lock Striker[08.1992 - 08.1996] AT19#,CT19#,ST19# |
69410-87001 |
from US $10.22 |
||
| replacement | |||||
|
69410
|
69410
69410-AA020 Plate Assy, Front Door Lock Striker[08.1992 - 08.1996] AT19#,CT19#,ST19# |
69410-AA020 |
US $37.29 |
||
|
69710A
|
69710A
69710-20070 Lever Assy, Front Door Lock Control, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
69710-20070 |
US $9.17 |
||
|
69711B
|
69711B
69701-20060 Link, Front Door Lock Remote Control, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
69701-20060 |
US $15.14 |
||
|
69712A
|
69712A
69702-20060 Link, Front Door Lock Remote Control, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
69702-20060 |
US $15.14 |
||
|
69720A
|
69720A
69720-20070 Lever Assy, Front Door Lock Control, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
69720-20070 |
US $9.17 |
||
|
69749
|
69749
69749-32030 Clamp, Front Door Lock Link[08.1992 - 08.1996] AT19#,CT19#,ST19# |
69749-32030 |
US $1.60 |
||
|
69759
|
69759
69759-24010 Snap(For Rear Door Inside Handle)[08.1992 - 08.1996] AT19#,CT19#,ST19# RH,NATURAL |
69759-24010 |
from US $2.15 |
||
|
69759
|
69759
69759-24020 Snap(For Rear Door Inside Handle)[08.1992 - 08.1996] AT19#,CT19#,ST19# LH,BLUE |
69759-24020 |
from US $2.88 |
||
|
69759
|
69759
69759-24050 Snap, Hood Auxiliary Catch Hook Control Link[08.1994 - 08.1996] AT19#,CT19#,ST195 LH,GREEN |
69759-24050 |
from US $3.84 |
||
|
69759
|
69759
69759-24060 Snap(For Rear Door Lock)[08.1992 - 08.1996] AT19#,CT19#,ST19# RH,GRAY |
69759-24060 |
from US $4.64 |
||
|
69759H
|
69759H
69759-20380
Snap, Door Lock Control Link, No.1
[08.1992 - 08.1996] AT19#,CT19#,ST19# ブラック |
69759-20380 |
— | ||
|
69759H
|
69759H
69759-24030 Snap, Door Inside Handle Link[08.1992 - 08.1996] AT19#,CT19#,ST19# レッド |
69759-24030 |
from US $2.80 |
||
|
69759S
|
69759S
69759-14050 Snap(For Rear Door Inside Handle)[08.1994 - 08.1996] AT19#,CT19#,ST195 PINK |
69759-14050 |
from US $2.16 |
||
|
69759S
|
69759S
69759-24070 Snap(For Rear Door Inside Handle)[08.1994 - 08.1996] AT19#,CT19#,ST195 イエロー |
69759-24070 |
US $2.88 |
||
|
69759V
|
69759V
69759-12060 Pad, Back Panel Silencer, Upper[08.1992 - 08.1996] AT19#,CT19#,ST19# |
69759-12060 |
US $3.93 |
||
|
9010506082
|
9010506082
90105-06082 BOLT |
90105-06082 |
US $1.68 |
||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.53 |
||
| replacement | |||||
|
9014860022
|
9014860022
90148-A0005 Hexalobular Screw |
90148-A0005 |
US $2.73 |
||
|
9014980027
|
9014980027
90149-80027 New Genuine Part |
90149-80027 |
US $1.60 |
||
|
9015960356
|
9015960356
90159-60356 New Genuine Part |
90159-60356 |
US $1.92 |
||
|
9018904127
|
9018904127
90189-04127 New Genuine Part |
90189-04127 |
US $1.05 |
||
|
9046708117
|
9046708117
90467-08117 Clamp, Rear Door Lock |
90467-08117 |
US $1.44 |
||
|
9353054020
|
9353054020
93530-54020 New Genuine Part |
93530-54020 |
US $0.87 |
||
