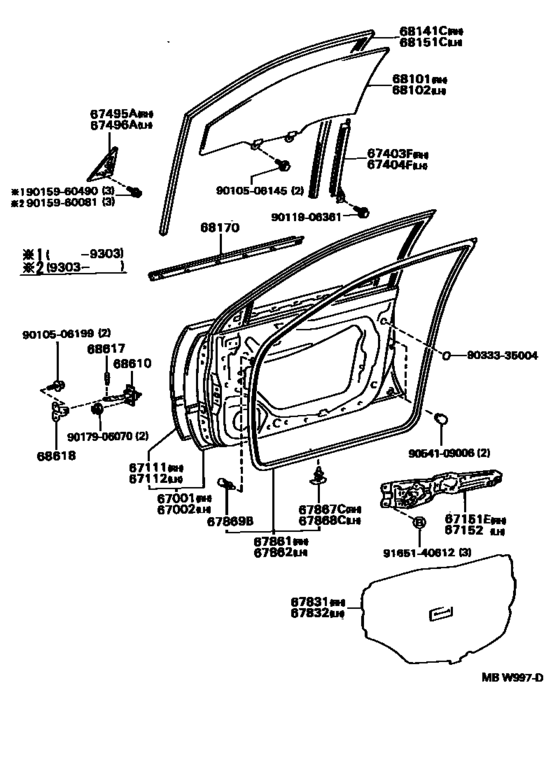

Front Door Panel & Glass ([08.1992 - ] (9208- )) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-20890 Panel Sub-Assy, Front Door, Rh[08.1992 - 09.1995] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
67001-20890 |
US $883.79 |
||
| replacements | |||||
|
67001
|
67001
67001-2B120 Panel Sub-Assy, Front Door, Rh[08.1992 - 09.1995] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
67001-2B120 |
US $883.79 |
||
|
67001
|
67001
90189-05027 GROMMET[08.1992 - 09.1995] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
90189-05027 |
from US $0.70 |
||
|
67001
|
67001
67001-2B120 Panel Sub-Assy, Front Door, Rh[09.1995 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI; CT190..SG ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ |
67001-2B120 |
US $883.79 |
||
|
67002
|
67002
67002-20850
Panel Sub-Assy, Front Door, Lh
[08.1992 - 09.1995] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
67002-20850 |
— | ||
| replacements | |||||
|
67002
|
67002
67002-2B100 Panel Sub-Assy, Front Door, Lh[08.1992 - 09.1995] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
67002-2B100 |
US $883.79 |
||
|
67002
|
67002
90189-05027 GROMMET[08.1992 - 09.1995] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
90189-05027 |
from US $0.70 |
||
|
67002
|
67002
67002-2B100 Panel Sub-Assy, Front Door, Lh[09.1995 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI; CT190..SG ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ |
67002-2B100 |
US $883.79 |
||
|
67111
|
67111
67111-20330 Panel, Front Door, Outer Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
67111-20330 |
US $355.26 |
||
|
67112
|
67112
67112-20350 Panel, Front Door, Outer Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
67112-20350 |
US $355.26 |
||
|
67151E
|
67151E
67053-20010 Reinforcement Sub-Assy, Front Door Inside Panel, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
67053-20010 |
US $54.31 |
||
|
67152
|
67152
67054-20010 Reinforcement Sub-Assy, Front Door Inside Panel, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
67054-20010 |
US $54.31 |
||
|
67403F
|
67403F
67403-20120 Frame Sub-Assy, Front Door, Rear Lower Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
67403-20120 |
US $17.33 |
||
|
67404F
|
67404F
67404-20100 Frame Sub-Assy, Front Door, Rear Lower Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
67404-20100 |
US $17.33 |
||
|
67495A
|
67495A
67495-20120 Cover, Front Door Front Lower Frame, Upper Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
67495-20120 |
US $19.80 |
||
|
67496A
|
67496A
67496-20090 Cover, Front Door Front Lower Frame, Upper Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
67496-20090 |
US $19.80 |
||
|
67831
|
67831
67831-20420 Cover, Front Door Service Hole, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
67831-20420 |
US $14.27 |
||
|
67832
|
67832
67832-20260 Cover, Front Door Service Hole, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
67832-20260 |
US $14.27 |
||
|
67861
|
67861
67861-20360 Weatherstrip, Front Door, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
67861-20360 |
US $113.57 |
||
|
67862
|
67862
67862-20360 Weatherstrip, Front Door, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
67862-20360 |
US $113.57 |
||
|
67867C
|
67867C
67868-20140 Retainer, Front Door Weatherstrip, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
67868-20140 |
US $2.33 |
||
| replacement | |||||
|
67867C
|
67867C
67867-12150 Clip(For Hood Air Intake Duct Seal)[08.1992 - 08.1996] AT19#,CT19#,ST19# |
67867-12150 |
from US $1.60 |
||
|
67868C
|
67868C
67868-20140 Retainer, Front Door Weatherstrip, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
67868-20140 |
US $2.33 |
||
| replacement | |||||
|
67868C
|
67868C
67867-12150 Clip(For Hood Air Intake Duct Seal)[08.1992 - 08.1996] AT19#,CT19#,ST19# |
67867-12150 |
from US $1.60 |
||
|
67869B
|
67869B
67869-20050 Clip, Front Door Weatherstrip[08.1992 - 08.1996] AT19#,CT19#,ST19# |
67869-20050 |
US $2.48 |
||
|
68101
|
68101
68101-20190 Glass Sub-Assy, Front Door, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# ＊ＴＴ，厚さ＝３．１ |
68101-20190 |
US $288.29 |
||
|
68101
|
68101
68101-20200 Glass Sub-Assy, Front Door, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI ＊ＴＥＭ，厚さ＝３．１，ブロンズ |
68101-20200 |
US $297.02 |
||
|
68101
|
68101
68101-20210 Glass Sub-Assy, Front Door, Rh[04.1995 - 08.1996] AT19#..SX,SXI ＊ＴＥＭ，厚さ＝３．１，グレー,ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ |
68101-20210 |
US $372.74 |
||
|
68102
|
68102
68102-20190 Glass Sub-Assy, Front Door, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# ＊ＴＴ，厚さ＝３．１ |
68102-20190 |
US $288.29 |
||
|
68102
|
68102
68102-20200 Glass Sub-Assy, Front Door, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI ＊ＴＥＭ，厚さ＝３．１，ブロンズ |
68102-20200 |
US $297.02 |
||
|
68102
|
68102
68102-20210 Glass Sub-Assy, Front Door, Lh[04.1995 - 08.1996] AT19#..SX,SXI ＊ＴＥＭ，厚さ＝３．１，グレー,ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ |
68102-20210 |
US $372.74 |
||
|
68141C
|
68141C
68141-20250
Run, Front Door Glass, Rh
[08.1992 - 08.1996] AT19#,CT19#,ST19# |
68141-20250 |
— | ||
|
68151C
|
68151C
68151-20080 Run, Front Door Glass, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
68151-20080 |
US $52.42 |
||
|
68170
|
68170
68170-20390
Weatherstrip Assy, Front Door Glass, Inner
[08.1992 - 08.1996] AT19#,CT19#,ST19# |
68170-20390 |
— | ||
|
68610
|
68610
68610-20131 Check Assy, Front Door[06.1994 - 08.1996] AT19#,CT19#,ST19# |
68610-20131 |
US $49.94 |
||
|
68617
|
68617
68617-20011 Pin(For Door Check)[06.1995 - 08.1996] AT19#,CT19#,ST195 |
68617-20011 |
from US $2.46 |
||
|
68617
|
68617
68617-20030 Pin, Front Door Check[08.1992 - 06.1995] AT19#,CT19#,ST19# |
68617-20030 |
US $3.93 |
||
| replacement | |||||
|
68617
|
68617
68617-20011 Pin(For Door Check)[08.1992 - 06.1995] AT19#,CT19#,ST19# |
68617-20011 |
from US $2.46 |
||
|
68618
|
68618
68618-20010
Bracket, Front Door Check Arm, Rh
[08.1992 - 08.1996] AT19#,CT19#,ST19# |
68618-20010 |
— | ||
|
9010506145
|
9010506145
90105-06145 New Genuine Part |
90105-06145 |
US $0.87 |
||
|
9010506199
|
9010506199
90105-06199 New Genuine Part |
90105-06199 |
US $2.62 |
||
| replacement | |||||
|
9010506199
|
9010506199
91511-G0614 BOLTFLANGE |
91511-G0614 |
from US $1.76 |
||
|
9011906361
|
9011906361
90119-06361 BOLT WWASHER |
90119-06361 |
from US $1.28 |
||
|
9015960081
|
9015960081
90159-60081 SCREW |
90159-60081 |
US $1.12 |
||
|
9015960490
|
9015960490
90159-60490 SCREW WWASHER |
90159-60490 |
US $1.92 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9033335004
|
9033335004
90333-35004 Plate, Noise Control, No.1 |
90333-35004 |
US $1.12 |
||
|
9054109006
|
9054109006
90541-09006 Cushion, Front Door Panel |
90541-09006 |
from US $1.76 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
