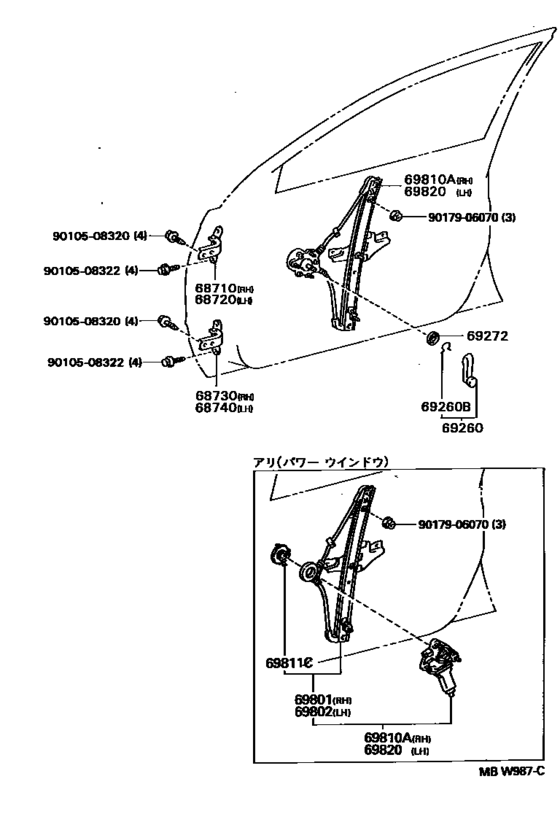

Front Door Window Regulator & Hinge ([08.1992 - ] (9208- )) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-12130
Hinge Assy, Front Door, Upper Rh
[08.1992 - 10.1995] AT19#,CT19#,ST19# |
68710-12130 |
— | ||
| replacement | |||||
|
68710
|
68710
68710-12151 Hinge Assy, Front Door, Upper Rh[08.1992 - 10.1995] AT19#,CT19#,ST19# |
68710-12151 |
from US $31.16 |
||
|
68710
|
68710
68710-12150
Hinge Assy, Front Door, Upper Rh
[10.1995 - 08.1996] AT19#,CT19#,ST195 |
68710-12150 |
— | ||
| replacement | |||||
|
68710
|
68710
68710-12151 Hinge Assy, Front Door, Upper Rh[10.1995 - 08.1996] AT19#,CT19#,ST195 |
68710-12151 |
from US $31.16 |
||
|
68720
|
68720
68720-12130
Hinge Assy, Front Door, Upper Lh
[08.1992 - 10.1995] AT19#,CT19#,ST19# |
68720-12130 |
— | ||
| replacement | |||||
|
68720
|
68720
68720-12151 Hinge Assy, Front Door, Upper Lh[08.1992 - 10.1995] AT19#,CT19#,ST19# |
68720-12151 |
from US $31.16 |
||
|
68720
|
68720
68720-12150
Hinge Assy, Front Door, Upper Lh
[10.1995 - 08.1996] AT19#,CT19#,ST195 |
68720-12150 |
— | ||
| replacement | |||||
|
68720
|
68720
68720-12151 Hinge Assy, Front Door, Upper Lh[10.1995 - 08.1996] AT19#,CT19#,ST195 |
68720-12151 |
from US $31.16 |
||
|
68730
|
68730
68720-12130
Hinge Assy, Front Door, Upper Lh
[08.1992 - 10.1995] AT19#,CT19#,ST19# |
68720-12130 |
— | ||
| replacement | |||||
|
68730
|
68730
68720-12151 Hinge Assy, Front Door, Upper Lh[08.1992 - 10.1995] AT19#,CT19#,ST19# |
68720-12151 |
from US $31.16 |
||
|
68730
|
68730
68720-12150
Hinge Assy, Front Door, Upper Lh
[10.1995 - 08.1996] AT19#,CT19#,ST195 |
68720-12150 |
— | ||
| replacement | |||||
|
68730
|
68730
68720-12151 Hinge Assy, Front Door, Upper Lh[10.1995 - 08.1996] AT19#,CT19#,ST195 |
68720-12151 |
from US $31.16 |
||
|
68740
|
68740
68710-12130
Hinge Assy, Front Door, Upper Rh
[08.1992 - 10.1995] AT19#,CT19#,ST19# |
68710-12130 |
— | ||
| replacement | |||||
|
68740
|
68740
68710-12151 Hinge Assy, Front Door, Upper Rh[08.1992 - 10.1995] AT19#,CT19#,ST19# |
68710-12151 |
from US $31.16 |
||
|
68740
|
68740
68710-12150
Hinge Assy, Front Door, Upper Rh
[10.1995 - 08.1996] AT19#,CT19#,ST195 |
68710-12150 |
— | ||
| replacement | |||||
|
68740
|
68740
68710-12151 Hinge Assy, Front Door, Upper Rh[10.1995 - 08.1996] AT19#,CT19#,ST195 |
68710-12151 |
from US $31.16 |
||
|
69801
|
69801
69801-20220 Regulator Sub-Assy, Front Door Window, Rh[08.1994 - 12.1994] CT19#,ST195;AT19#..SEEXT,SL,SX,SXI; AT19#..SG,SGI ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) OR ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ |
69801-20220 |
from US $91.73 |
||
|
69802
|
69802
69802-20240 Regulator Sub-Assy, Front Door Window, Lh[08.1994 - 12.1994] CT19#,ST195;AT19#..SEEXT,SL,SX,SXI; AT19#..SG,SGI ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) OR ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ |
69802-20240 |
US $91.73 |
||
|
69810A
|
69810A
69810-20310 Regulator Assy, Front Door Window, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
69810-20310 |
US $361.09 |
||
|
69811C
|
69811C
69813-32010 Plate, Front Door Power Window Regulator Base[08.1994 - 12.1994] CT19#,ST195;AT19#..SEEXT,SL,SX,SXI; AT19#..SG,SGI ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) OR ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ |
69813-32010 |
US $5.97 |
||
|
69811C
|
69811C
69813-32040 Plate, Front Door Power Window Regulator Base[12.1995 - 08.1996] CT195,ST195;AT19#,CT190..SE,SEEXT,SL,SX,SXI 右側; AT19#,CT190..SG,SGI ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) OR ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,右側 |
69813-32040 |
US $6.84 |
||
|
69811C
|
69811C
69814-32010 Plate, Front Door Power Window Regulator Base[12.1995 - 08.1996] CT195,ST195;AT19#,CT190..SE,SEEXT,SL,SX,SXI 左側; AT19#,CT190..SG,SGI ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) OR ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,左側 |
69814-32010 |
US $6.84 |
||
|
69820
|
69820
69820-20330
Regulator Assy, Front Door Window, Lh
[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
69820-20330 |
— | ||
|
9010508320
|
9010508320
90105-08320 BOLT WASHER BASED |
90105-08320 |
US $1.44 |
||
|
9010508322
|
9010508322
90105-08322 BOLT WASHER BASED |
90105-08322 |
US $2.56 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
