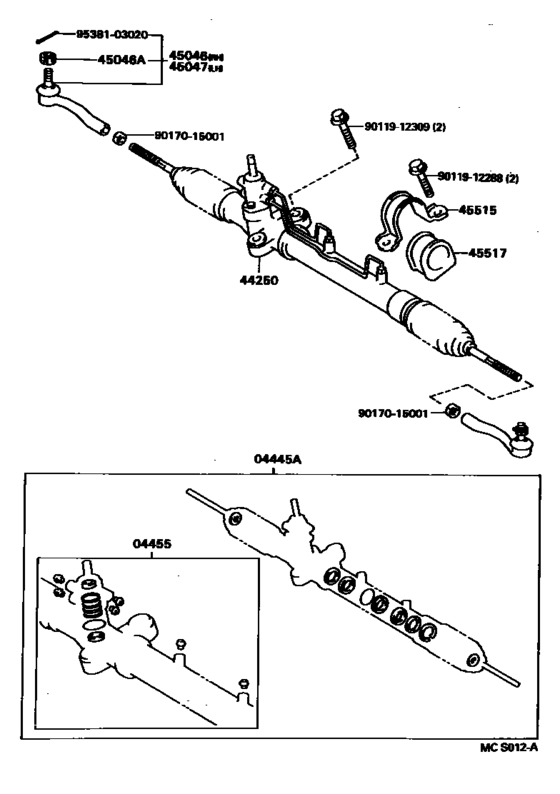

Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,CT190,ST190) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04445A
|
04445A
04445-20170 Gasket Kit, Power Steering Gear(For Rack & Pinion)[08.1992 - 08.1996] AT19#,ST190 |
04445-20170 |
US $80.72 |
||
|
04455
|
04455
04455-20130
Gasket Kit, Power Steering Control Valve Overhole
[08.1992 - 08.1996] AT19#,ST190 |
04455-20130 |
— | ||
|
44250
|
44250
44250-20600 Gear Assy, Power Steering(For Rack & Pinion)[08.1992 - 12.1995] AT190,191,ST190..SE,SEEXT,SL,SX,SXI |
44250-20600 |
US $1,431.25 |
||
| replacement | |||||
|
44250
|
44250
44250-20611 Gear Assy, Power Steering(For Rack & Pinion)[08.1992 - 12.1995] AT190,191,ST190..SE,SEEXT,SL,SX,SXI |
44250-20611 |
US $1,438.53 |
||
|
44250
|
44250
44250-20610 Gear Assy, Power Steering(For Rack & Pinion)[12.1995 - 06.1996] AT190,191..SEEXT,SL,SXI |
44250-20610 |
US $1,431.25 |
||
| replacement | |||||
|
44250
|
44250
44250-20611 Gear Assy, Power Steering(For Rack & Pinion)[12.1995 - 06.1996] AT190,191..SEEXT,SL,SXI |
44250-20611 |
US $1,438.53 |
||
|
44250
|
44250
44250-20611 Gear Assy, Power Steering(For Rack & Pinion)[06.1996 - 08.1996] AT190,191..SEEXT,SL,SXI |
44250-20611 |
US $1,438.53 |
||
|
45046
|
45046
45046-29275
End Sub-Assy, Tie Rod, Rh
[08.1992 - 11.1995] AT19#,CT190,ST190 |
45046-29275 |
— | ||
| replacement | |||||
|
45046
|
45046
45046-29335 End Sub-Assy, Tie Rod, Rh[08.1992 - 11.1995] AT19#,CT190,ST190 |
45046-29335 |
US $67.79 |
||
|
45046
|
45046
45046-29335 End Sub-Assy, Tie Rod, Rh[11.1995 - 08.1996] AT19#,CT190 |
45046-29335 |
US $67.79 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[08.1992 - 08.1996] AT19#,CT19#,ST19# |
90171-12028 |
from US $1.38 |
||
|
45047
|
45047
45047-29075
End Sub-Assy, Tie Rod, Lh
[08.1992 - 11.1995] AT19#,CT190,ST190 |
45047-29075 |
— | ||
| replacement | |||||
|
45047
|
45047
45047-29105 End Sub-Assy, Tie Rod, Lh[08.1992 - 11.1995] AT19#,CT190,ST190 |
45047-29105 |
US $67.79 |
||
|
45047
|
45047
45047-29105 End Sub-Assy, Tie Rod, Lh[11.1995 - 08.1996] AT19#,CT190 |
45047-29105 |
US $67.79 |
||
|
45515
|
45515
45515-20160
Bracket, Steering Rack Housing, No.2
[08.1992 - 08.1996] AT19#,ST190 |
45515-20160 |
— | ||
|
45517
|
45517
45517-20190
Grommet, Steering Rack Housing, No.2
[08.1992 - 08.1996] AT19#,ST190 |
45517-20190 |
— | ||
| replacement | |||||
|
45517
|
45517
45517-44010 Grommet, Steering Rack Housing, No.2[08.1992 - 08.1996] AT19#,ST190 |
45517-44010 |
US $17.33 |
||
|
9011912288
|
9011912288
90119-12288 Bolt |
90119-12288 |
US $2.97 |
||
|
9011912309
|
9011912309
90119-12309 New Genuine Part |
90119-12309 |
US $4.08 |
||
|
9017015001
|
9017015001
90170-15001 Nut, Rack End Lock |
90170-15001 |
from US $2.08 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $1.44 |
||
