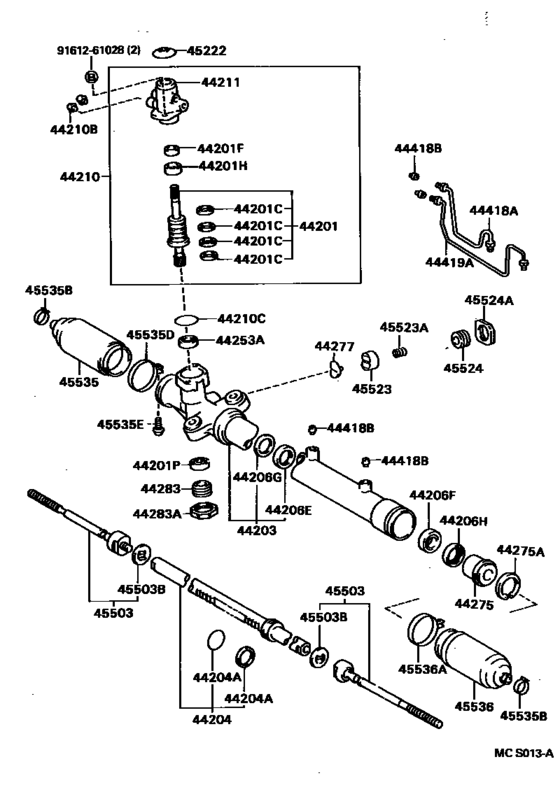

Front Steering Gear & Link ([08.1992 - ] (9208- )AT19#,ST190) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44201
|
44201
44201-20290 Valve Sub-Assy, Power Steering Control[08.1992 - 12.1995] AT19#,ST190 |
44201-20290 |
US $292.66 |
||
| replacement | |||||
|
44201
|
44201
44201-20390 Valve Sub-Assy, Power Steering Control[08.1992 - 12.1995] AT19#,ST190 |
44201-20390 |
US $294.11 |
||
|
44201
|
44201
44201-20390 Valve Sub-Assy, Power Steering Control[12.1995 - 06.1996] AT19# |
44201-20390 |
US $294.11 |
||
|
44201
|
44201
44201-44050 Valve Sub-Assy, Power Steering Control[06.1996 - 08.1996] AT19# |
44201-44050 |
US $294.11 |
||
|
44201C
|
44201C
90562-33002 Ring(For Power Steering Control Valve)[08.1992 - 08.1996] AT19#,ST190 |
90562-33002 |
US $3.89 |
||
|
44201F
|
44201F
90311-19006 Seal, Oil(For Power Steering Control Valve)[08.1992 - 08.1996] AT19#,ST190 |
90311-19006 |
from US $3.04 |
||
|
44201H
|
44201H
90363-19002 Bearing(For Power Steering Control Valve)[08.1992 - 08.1996] AT19#,ST190 |
90363-19002 |
US $21.67 |
||
|
44201P
|
44201P
90363-13002 Bearing(For Power Steering Control Valve Lower)[08.1992 - 08.1996] AT19#,ST190 |
90363-13002 |
from US $21.67 |
||
|
44203
|
44203
44203-20400 Housing Sub-Assy, Power Steering Rack[08.1992 - 08.1996] AT19#,ST190 |
44203-20400 |
US $548.91 |
||
| replacement | |||||
|
44203
|
44203
44203-20410 Housing Sub-Assy, Power Steering Rack[08.1992 - 08.1996] AT19#,ST190 |
44203-20410 |
US $550.37 |
||
|
44204
|
44204
44204-20320
Rack Sub-Assy, Power Steering
[08.1992 - 08.1996] AT190,191,ST190..SE,SEEXT,SL,SX,SXI |
44204-20320 |
— | ||
|
44204A
|
44204A
90301-35002 Ring(For Rack Steering Piston)[08.1992 - 08.1996] AT19#,ST190 内側 |
90301-35002 |
US $3.79 |
||
|
44204A
|
44204A
90562-38004 Ring(For Rack Steering Piston)[08.1992 - 08.1996] AT19#,ST190 外側 |
90562-38004 |
US $1.75 |
||
|
44206E
|
44206E
90310-23006 Seal, Oil, No.1(For Power Steering Cylinder Tube)[08.1992 - 08.1996] AT19#,ST190 |
90310-23006 |
US $2.77 |
||
| replacement | |||||
|
44206E
|
44206E
90310-25025 Seal, Oil, No.1(For Power Steering Cylinder Tube)[08.1992 - 08.1996] AT19#,ST190 |
90310-25025 |
from US $3.04 |
||
|
44206F
|
44206F
90310-23006 Seal, Oil, No.1(For Power Steering Cylinder Tube)[08.1992 - 01.1996] AT19#,ST190 |
90310-23006 |
US $2.77 |
||
| replacement | |||||
|
44206F
|
44206F
90310-25025 Seal, Oil, No.1(For Power Steering Cylinder Tube)[08.1992 - 01.1996] AT19#,ST190 |
90310-25025 |
from US $3.04 |
||
|
44206F
|
44206F
90310-25025 Seal, Oil, No.1(For Power Steering Cylinder Tube)[01.1996 - 08.1996] AT19# |
90310-25025 |
from US $3.04 |
||
|
44206G
|
44206G
90560-26015
Spacer, No.1(For Power Steering Cylinder Tube)
[08.1992 - 08.1996] AT19#,ST190 |
90560-26015 |
— | ||
|
44206H
|
44206H
90560-26015
Spacer, No.1(For Power Steering Cylinder Tube)
[08.1992 - 01.1996] AT19#,ST190 |
90560-26015 |
— | ||
|
44210
|
44210
44210-20370 Valve Assy, Power Steering Control[08.1992 - 12.1995] AT19#,ST190 |
44210-20370 |
US $560.56 |
||
| replacement | |||||
|
44210
|
44210
44210-20380 Valve Assy, Power Steering Control[08.1992 - 12.1995] AT19#,ST190 |
44210-20380 |
US $563.47 |
||
|
44210
|
44210
44210-20380 Valve Assy, Power Steering Control[12.1995 - 06.1996] AT19# |
44210-20380 |
US $563.47 |
||
|
44210
|
44210
44210-44050 Valve Assy, Power Steering Control[06.1996 - 08.1996] AT19# |
44210-44050 |
US $563.47 |
||
|
44210B
|
44210B
90410-04006 Seat, Union(For Power Steering Control Valve)[08.1992 - 12.1995] AT19#,ST190 RETURN TUBE SIDE |
90410-04006 |
US $2.33 |
||
|
44210B
|
44210B
90410-06002 Seat, Union(For Power Steering Control Valve)[08.1992 - 12.1995] AT19#,ST190 PRESSURE TUBE SIDE |
90410-06002 |
US $3.52 |
||
|
44210C
|
44210C
96711-24060 Ring, O(For Power Steering Control Valve)[08.1992 - 08.1996] AT19#,ST190 |
96711-24060 |
from US $2.96 |
||
|
44211
|
44211
44211-20100 Housing, Control Valve[08.1992 - 08.1996] AT19#,ST190 |
44211-20100 |
US $132.50 |
||
|
44253A
|
44253A
90310-28001 Seal, Oil(For Power Steering Control Valve)[08.1992 - 09.1994] AT19#,ST190 |
90310-28001 |
US $2.77 |
||
| replacement | |||||
|
44253A
|
44253A
90310-28003 Seal, Oil(For Power Steering Rack Housing)[08.1992 - 09.1994] AT19#,ST190 |
90310-28003 |
from US $3.04 |
||
|
44253A
|
44253A
90310-28003 Seal, Oil(For Power Steering Rack Housing)[09.1994 - 08.1996] AT19# |
90310-28003 |
from US $3.04 |
||
|
44275
|
44275
44275-20120
Stopper, Cylinder End
[08.1992 - 01.1996] AT19#,ST190 |
44275-20120 |
— | ||
|
44275
|
44275
44275-20130 Stopper, Cylinder End[01.1996 - 08.1996] AT19# |
44275-20130 |
US $16.60 |
||
|
44275A
|
44275A
90521-51004 Ring, Hole Snap(For Cylinder End Stopper)[08.1992 - 08.1996] AT19#,ST190 |
90521-51004 |
US $3.20 |
||
|
44277
|
44277
44277-20040
Seat, Rack Guide
[08.1992 - 08.1996] AT19#,ST190 |
44277-20040 |
— | ||
|
44283
|
44283
45524-50010 Cap, Rack Housing[08.1992 - 08.1996] AT19#,ST190 |
45524-50010 |
US $8.74 |
||
|
44283A
|
44283A
90179-36002 Nut(For Power Steering Pinion Cap)[08.1992 - 08.1996] AT19#,ST190 |
90179-36002 |
US $4.89 |
||
|
44418A
|
44418A
44418-20230 Tube, Steering Right Turn Pressure[08.1992 - 08.1996] AT19#,ST190 |
44418-20230 |
US $12.23 |
||
|
44418B
|
44418B
90410-04003 Seat, Union(For Power Steering Control Valve)[08.1992 - 08.1996] AT19#,ST190 CYLINDER TUBE SIDE |
90410-04003 |
US $2.72 |
||
|
44418B
|
44418B
96390-71200 Seat, Union(For Steering Turn Pressure Tube)[08.1992 - 08.1996] AT19#,ST190 CONTROL VALVE SIDE |
96390-71200 |
US $1.60 |
||
|
44419A
|
44419A
44419-20220 Tube, Steering Left Turn Pressure[08.1992 - 10.1995] AT19#,ST190 |
44419-20220 |
US $14.41 |
||
| replacement | |||||
|
44419A
|
44419A
44419-20320 Tube, Steering Left Turn Pressure[08.1992 - 10.1995] AT19#,ST190 |
44419-20320 |
US $14.41 |
||
|
44419A
|
44419A
44419-20320 Tube, Steering Left Turn Pressure[10.1995 - 08.1996] AT19# |
44419-20320 |
US $14.41 |
||
|
45222
|
45222
45222-32010 Cover, Dust(For Power Steering Gear)[08.1992 - 08.1996] AT19#,CT19#,ST19# |
45222-32010 |
from US $5.15 |
||
|
45503
|
45503
45503-29435 End Sub-Assy, Steering Rack[08.1992 - 11.1995] AT19#,CT190,ST190 |
45503-29435 |
US $88.82 |
||
| replacement | |||||
|
45503
|
45503
45503-29615 End Sub-Assy, Steering Rack[08.1992 - 11.1995] AT19#,CT190,ST190 |
45503-29615 |
US $99.16 |
||
|
45503
|
45503
45503-29615 End Sub-Assy, Steering Rack[11.1995 - 08.1996] AT19#,CT190 |
45503-29615 |
US $99.16 |
||
|
45503B
|
45503B
90214-14002 Washer, Claw(For Power Steering Rack End)[08.1992 - 08.1996] AT19#,CT19#,ST19# 外径＝３７ |
90214-14002 |
from US $1.29 |
||
|
45523
|
45523
45523-20040 Guide, Rack(For Steering Gear)[08.1992 - 08.1996] AT19#,ST190 |
45523-20040 |
from US $17.82 |
||
|
45523A
|
45523A
90501-23007 Spring(For Power Steering Rack Guide)[12.1995 - 08.1996] AT19#,CT19#,ST195 |
90501-23007 |
from US $1.49 |
||
|
45523A
|
45523A
90501-29036 Spring(For Steering Gear Rack Guide)[08.1992 - 12.1995] AT19#,ST190 |
90501-29036 |
US $3.64 |
||
|
45524
|
45524
45524-50010 Cap, Rack Housing[08.1992 - 08.1996] AT19#,ST190 |
45524-50010 |
US $8.74 |
||
|
45524A
|
45524A
90179-36002 Nut(For Power Steering Pinion Cap)[08.1992 - 08.1996] AT19#,CT19#,ST19# |
90179-36002 |
US $4.89 |
||
|
45535
|
45535
45535-20080 Boot, Steering Rack, No.1[08.1992 - 10.1995] AT19#,CT190,ST190 |
45535-20080 |
US $17.04 |
||
|
45535
|
45535
45535-20190 Boot, Steering Rack, No.1[10.1995 - 11.1995] AT19# |
45535-20190 |
US $17.33 |
||
|
45535B
|
45535B
90467-19018
Clip(For Power Steering Rack Boot)
[08.1992 - 06.1995] AT19#,CT190,ST190 |
90467-19018 |
— | ||
| replacement | |||||
|
45535B
|
45535B
90467-19021 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.1992 - 06.1995] AT19#,CT190,ST190 |
90467-19021 |
from US $1.50 |
||
|
45535B
|
45535B
90467-19021 Clamp Or Clip, Hose(For Water By-Pass Hose)[06.1995 - 08.1996] AT19# |
90467-19021 |
from US $1.50 |
||
|
45535D
|
45535D
90460-49002 Clamp(For Power Steering Rack Boot)[08.1992 - 03.1996] AT19#,CT19#,ST19# |
90460-49002 |
US $4.80 |
||
|
45535E
|
45535E
90149-30009 Screw(For Steering Rack Boot Clamp)[05.1996 - 08.1996] AT19# |
90149-30009 |
US $1.76 |
||
|
45535E
|
45535E
93269-63020 Screw(For Steering Rack Boot Clamp)[08.1992 - 05.1996] AT19#,ST190 |
93269-63020 |
US $1.76 |
||
|
45536
|
45536
45535-20140 Boot, Steering Rack, No.2[08.1992 - 12.1995] AT19#,ST190 |
45535-20140 |
US $11.65 |
||
| replacement | |||||
|
45536
|
45536
45535-20170 Boot, Steering Rack, No.2[08.1992 - 12.1995] AT19#,ST190 |
45535-20170 |
US $11.50 |
||
|
45536
|
45536
45535-20170 Boot, Steering Rack, No.2[12.1995 - 08.1996] AT19# |
45535-20170 |
US $11.50 |
||
|
45536A
|
45536A
90460-52001 Clamp(For Power Steering Rack Boot)[08.1992 - 08.1996] AT19#,ST190 |
90460-52001 |
US $6.40 |
||
|
9161261028
|
9161261028
91612-61028 Bolt(For Transaxle Case & Engine Setting) |
91612-61028 |
US $2.72 |
||
