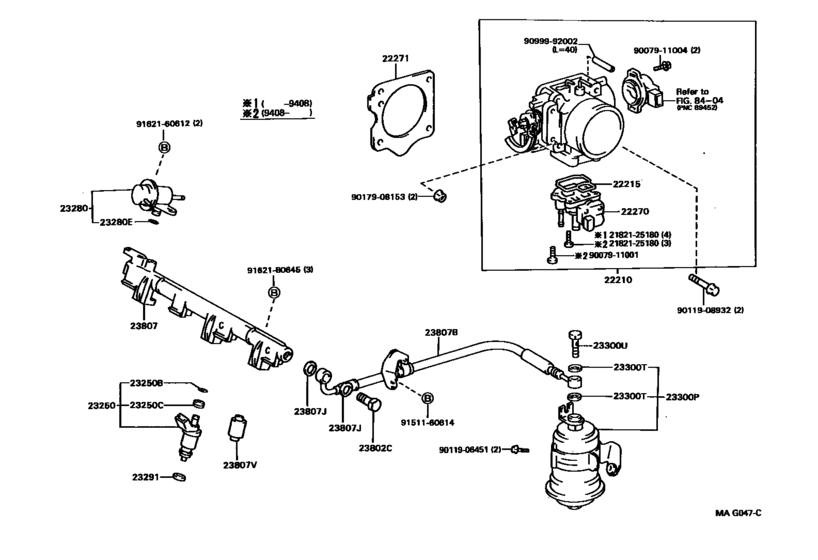

Fuel Injection System ([08.1992 - ] (9208- )4AFE,7AFE) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22210-16830 Body Assy, Throttle[08.1994 - 08.1996] 4AFE..AT190..ATM |
22210-16830 |
US $1,217.22 |
||
|
22215
|
22215
22215-74400 Gasket, Throttle Body Cover[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19#; 3SFE,4SFE..ST19# |
22215-74400 |
from US $4 |
||
|
22270
|
22270
22270-16060 Valve Assy, Idle Speed Control(For Thlottle Body)[08.1994 - 08.1996] 4AFE,7AFE..AT190,191 |
22270-16060 |
US $585.31 |
||
|
22271
|
22271
22271-15020 Gasket, Throttle Body[08.1994 - 08.1996] 4AFE,7AFE..AT190,191 |
22271-15020 |
from US $3.57 |
||
|
23250
|
23250
23209-16120
Injector Assy, Fuel
[08.1992 - 08.1996] 4AFE,7AFE..AT190,191 |
23209-16120 |
— | ||
|
23250B
|
23250B
90301-07001 Ring, O(For Fuel Injector)[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19#; 3SFE,4SFE..ST19# |
90301-07001 |
from US $2.91 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19#; 3SFE,4SFE..ST19# |
90480-13005 |
from US $2.46 |
||
|
23280
|
23280
23280-16150
Regulator Assy, Fuel Pressure
[08.1992 - 08.1996] 4AFE,7AFE..AT190,191 |
23280-16150 |
— | ||
|
23280E
|
23280E
90301-07001 Ring, O(For Fuel Injector)[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
90301-07001 |
from US $2.91 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19#; 3SFE,4SFE..ST19# |
23291-41010 |
from US $2.77 |
||
|
23300P
|
23300P
23300-19315
Filter, Fuel(For Efi)
[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
23300-19315 |
— | ||
| replacement | |||||
|
23300P
|
23300P
23300-19335 Filter, Fuel(For Efi)[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
23300-19335 |
US $103.38 |
||
|
23300T
|
23300T
90430-12026 Gasket[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19#; 3SFE,4SFE..ST19# |
90430-12026 |
from US $0.88 |
||
|
23300U
|
23300U
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19#; 3SFE,4SFE..ST19# |
90401-12097 |
from US $2.98 |
||
|
23802C
|
23802C
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
90401-12097 |
from US $2.98 |
||
|
23807
|
23807
23814-16130 Pipe Sub-Assy, Fuel Delivery[08.1994 - 08.1996] 4AFE,7AFE..AT190,191 |
23814-16130 |
US $132.50 |
||
|
23807B
|
23807B
23271-16160 Hose, Fuel Delivery Pipe[08.1994 - 08.1996] 4AFE,7AFE..AT190,191 |
23271-16160 |
US $110.66 |
||
|
23807J
|
23807J
90430-12026 Gasket[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
90430-12026 |
from US $0.88 |
||
|
23807V
|
23807V
90561-06014
Spacer, No.1(For Delivery Pipe)
[08.1992 - 08.1996] 4AFE,7AFE..AT190,191 |
90561-06014 |
— | ||
|
91621B0645
|
91621B0645
91621-B0645 New Genuine Part |
91621-B0645 |
US $1.89 |
||
|
2182125180
|
2182125180
21821-25180 Screw, Set, No.2(For Carburetor Body Set) |
21821-25180 |
from US $3.52 |
||
|
9007911001
|
9007911001
90079-11001 SCREW |
90079-11001 |
US $1.92 |
||
|
9007911004
|
9007911004
90079-11004 New Genuine Part |
90079-11004 |
US $1.60 |
||
|
9011906451
|
9011906451
90119-06451 BOLT WWASHER |
90119-06451 |
US $1.12 |
||
|
9011908932
|
9011908932
90119-08932 New Genuine Part |
90119-08932 |
US $2.04 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9151160614
|
9151160614
91511-60614
LEXBOLT
|
91511-60614 |
— | ||
| replacement | |||||
|
9151160614
|
9151160614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.74 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.68 |
||
