Fuel Injection System ([08.1992 - ] (9208- )4AFE,5AFE,7AFE) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?

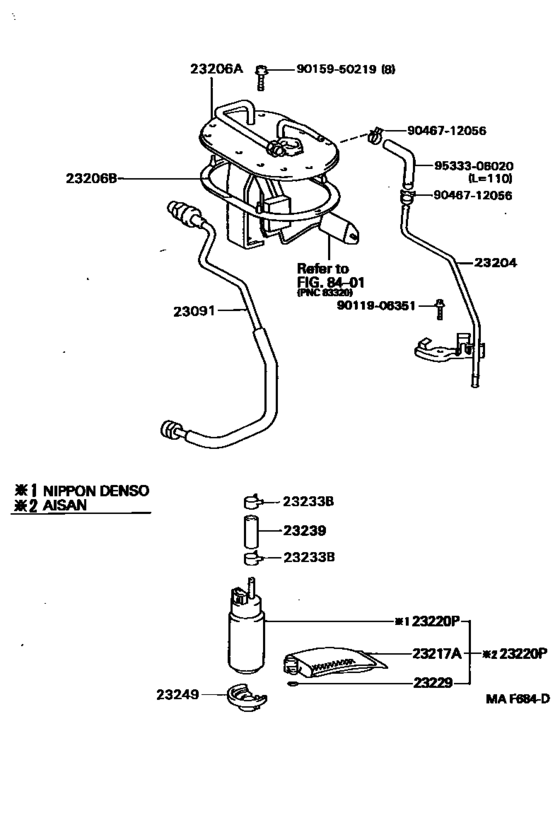

| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23091
|
23091
23091-74200 Tube Sub-Assy, Fuel Pump[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19#; 4SFE..ST190 |
23091-74200 |
US $96.10 |
||
|
23204
|
23204
23204-74650 Tube Sub-Assy, Fuel Pump Return[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19#; 4SFE..ST190 |
23204-74650 |
US $35.53 |
||
|
23206A
|
23206A
23206-74660 Bracket, Fuel Pump[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19#; 4SFE..ST190 |
23206-74660 |
US $99.65 |
||
|
23206B
|
23206B
77169-60010 Gasket, Fuel Pump Bracket[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19#; 3SFE,4SFE..ST19# |
77169-60010 |
from US $11.29 |
||
|
23217A
|
23217A
23217-76040
Filter, Fuel Pump
[08.1994 - 08.1996] 4AFE,7AFE..AT190,191 |
23217-76040 |
— | ||
| replacement | |||||
|
23217A
|
23217A
23217-46090 Filter, Fuel Pump[08.1994 - 08.1996] 4AFE,7AFE..AT190,191 |
23217-46090 |
from US $7.49 |
||
|
23220P
|
23220P
23221-11050 Pump Assy, Fuel[08.1994 - 08.1996] 4AFE,7AFE..AT190,191 |
23221-11050 |
US $500.86 |
||
| replacement | |||||
|
23220P
|
23220P
23221-11070 Pump Assy, FuelFUEL [08.1994 - 08.1996] 4AFE,7AFE..AT190,191 |
23221-11070 |
US $416.42 |
||
|
23229
|
23229
23229-16010 Clip(For Fuel Pump Filter)[03.1994 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
23229-16010 |
from US $0.84 |
||
| replacement | |||||
|
23229
|
23229
23219-03010 Clip(For Fuel Pump Filter)[03.1994 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
23219-03010 |
US $2.55 |
||
|
23233B
|
23233B
90467-12067 Clip(For Fuel Pump Hose)[08.1994 - 08.1996] 3SFE..ST195; 4AFE,5AFE,7AFE..AT19# |
90467-12067 |
from US $1.27 |
||
|
23239
|
23239
23239-11010 Hose, Fuel Pump[08.1994 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
23239-11010 |
US $10.88 |
||
|
23249
|
23249
23249-74610 Rubber, Cushion(For Fuel Pump)[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19#; 3SFE,4SFE..ST19# |
23249-74610 |
from US $8.27 |
||
|
9011906351
|
9011906351
90119-06351 New Genuine Part |
90119-06351 |
US $0.61 |
||
|
9015950219
|
9015950219
90159-50219 BOLT |
90159-50219 |
from US $0.64 |
||
| replacement | |||||
|
9015950219
|
9015950219
90159-A0057 New Genuine Part |
90159-A0057 |
US $1.73 |
||
|
9046712056
|
9046712056
90467-12056 Clamp Or Clip(For Throttle Body Hose) |
90467-12056 |
from US $0.74 |
||
| replacement | |||||
|
9046712056
|
9046712056
90466-T0048
New Genuine Part
|
90466-T0048 |
— | ||
|
9533306020
|
9533306020
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
|
95333-06020 |
— | ||
| replacement | |||||
|
9533306020
|
9533306020
95337-06020 Hose, Differential Pressure Control |
95337-06020 |
from US $9.12 |
||
