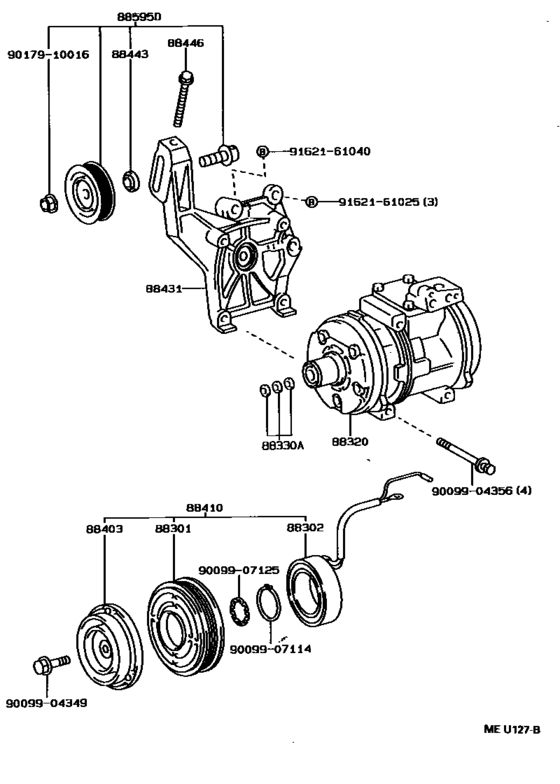

Heating & Air Conditioning - Compressor ([08.1992 - ] (9208- )AT19#) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-2B010
Rotor Sub-Assy, Magnet Clutch
[08.1992 - 08.1996] AT19# |
88412-2B010 |
— | ||
|
88302
|
88302
88411-2B100
Stator Sub-Assy, Magnet Clutch
[08.1994 - 08.1996] AT19# |
88411-2B100 |
— | ||
|
88320
|
88320
88320-2B300
Compressor Assy, Cooler
[08.1994 - 08.1996] AT19# |
88320-2B300 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-35H92 Compressor Assy, Cooler[08.1994 - 08.1996] AT19# |
88320-35H92 |
US $1,359.32 |
||
|
88330A
|
88330A
88335-14020 Washer[08.1992 - 08.1996] AT19#,CT19#,ST19# |
88335-14020 |
from US $1.25 |
||
|
88403
|
88403
88403-30290 Hub Sub-Assy, Magnet Clutch[08.1992 - 08.1996] AT19#,CT19#,ST19# |
88403-30290 |
from US $86.66 |
||
|
88410
|
88410
88410-2B150 Clutch Assy, Magnet[08.1994 - 08.1996] AT19# |
88410-2B150 |
US $551.82 |
||
|
88446
|
88446
88446-12030
Bolt, Idle Pulley
[08.1992 - 08.1996] AT19# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
88446-12030 |
— | ||
|
88595D
|
88595D
88440-17010 Pulley Assy, Idle[08.1992 - 08.1996] AT19# |
88440-17010 |
US $94.72 |
||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009904356
|
9009904356
90099-04356 BOLT |
90099-04356 |
US $2.77 |
||
| replacement | |||||
|
9009904356
|
9009904356
90099043561
Bolt
|
90099043561 |
— | ||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.07 |
||
|
9009907125
|
9009907125
90099-07125 Ring, Snap |
90099-07125 |
from US $1.05 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.94 |
||
|
9162161025
|
9162161025
91621-61025 New Genuine Part |
91621-61025 |
US $2.62 |
||
|
9162161040
|
9162161040
91621-61040 New Genuine Part |
91621-61040 |
US $4.53 |
||
