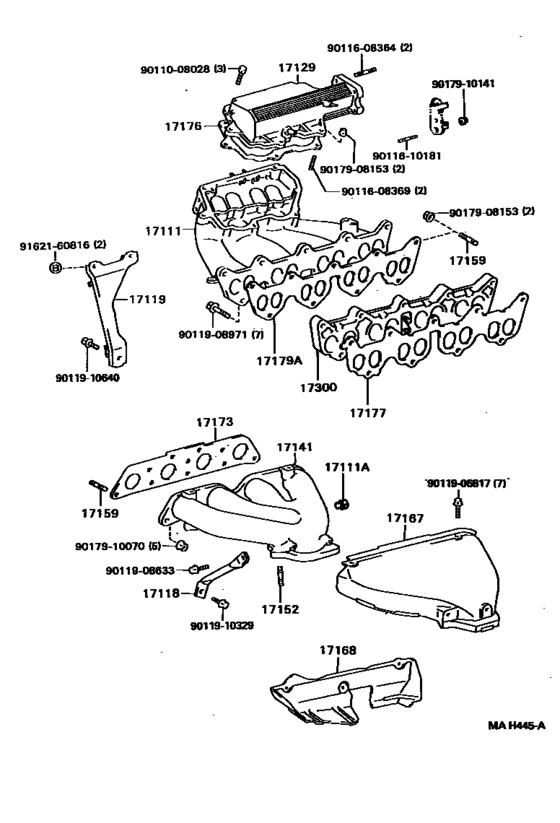

Manifold ([08.1994 - ] (9408- )4AFE,7AFE) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17101-16180 Manifold, Intake[08.1992 - 08.1996] 4AFE,7AFE..AT190,191 |
17101-16180 |
US $343.62 |
||
|
17111A
|
17111A
90341-18047 Plug, No.1[08.1994 - 08.1996] 4AFE,7AFE..AT190,191 |
90341-18047 |
US $6.24 |
||
|
17118
|
17118
17118-16050 Stay, Manifold[08.1994 - 08.1996] 4AFE..AT190 |
17118-16050 |
US $17.76 |
||
|
17119
|
17119
17012-15010 Stay, Manifold, No.2[08.1992 - 08.1996] 4AFE,5AFE..AT190,192 |
17012-15010 |
US $41.06 |
||
|
17129
|
17129
17109-15010 Tank, Intake Air Surge[08.1994 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
17109-15010 |
US $486.30 |
||
|
17141
|
17141
17141-16300
Manifold, Exhaust
[08.1994 - 08.1996] 4AFE,7AFE..AT190,191 |
17141-16300 |
— | ||
|
17141
|
17141
17141-16350 Manifold, Exhaust[08.1994 - 08.1996] 4AFE,7AFE..AT190,191 W/O PNC 17111A |
17141-16350 |
US $331.97 |
||
|
17152
|
17152
90116-10146 Bolt, Stud(For Manifold To Exhaust Pipe)[08.1994 - 08.1996] 4AFE,7AFE..AT190,191 |
90116-10146 |
from US $1.83 |
||
|
17159
|
17159
92112-60825 Bolt, Stud(For Oil Filter)[08.1994 - 07.1995] 4AFE,5AFE,7AFE..AT19# INTAKE MANIFOLD |
92112-60825 |
from US $1.37 |
||
|
17159
|
17159
92112-60850 Bolt, Stud(For Head To Cylinder Head Cover)[07.1995 - 08.1996] 4AFE,7AFE..AT190,191 INTAKE MANIFOLD |
92112-60850 |
US $1 |
||
|
17159
|
17159
92112-61028 Bolt, Stud(For Manifold To Cylinder Head)[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# EXHAUST MANIFOLD |
92112-61028 |
US $3.84 |
||
|
17167
|
17167
17167-16150
Insulator, Exhaust Manifold Heat, No.1
[08.1994 - 08.1996] 4AFE,7AFE..AT190,191 |
17167-16150 |
— | ||
|
17168
|
17168
17168-16100
Insulator, Exhaust Manifold Heat, No.2
[08.1994 - 08.1996] 4AFE,7AFE..AT190,191 |
17168-16100 |
— | ||
|
17173
|
17173
17173-15040 Gasket, Exhaust Manifold To Head[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
17173-15040 |
from US $22.64 |
||
|
17176
|
17176
17176-15010 Gasket, Air Surge Tank To Intake Manifold[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
17176-15010 |
US $10.48 |
||
|
17177
|
17177
17171-16051 Gasket, Intake Manifold To Head, No.1[08.1992 - 08.1996] 4AFE,7AFE..AT190,191 |
17171-16051 |
US $13.54 |
||
|
17179A
|
17179A
17179-16021 Gasket, Intake Manifold, No.2[08.1992 - 08.1996] 4AFE,7AFE..AT190,191 |
17179-16021 |
US $13.54 |
||
|
17300
|
17300
17300-16020 Valve Assy, Intake Air Control[08.1992 - 08.1996] 4AFE,7AFE..AT190,191 |
17300-16020 |
US $694.51 |
||
|
9011008028
|
9011008028
90110-08028 New Genuine Part |
90110-08028 |
US $1.14 |
||
|
9011608364
|
9011608364
90116-08364 New Genuine Part |
90116-08364 |
US $2.97 |
||
|
9011608369
|
9011608369
90116-08369
New Genuine Part
|
90116-08369 |
— | ||
|
9011610181
|
9011610181
90116-10181 New Genuine Part |
90116-10181 |
US $1.75 |
||
|
9011906817
|
9011906817
90119-06817 BOLT WWASHER |
90119-06817 |
US $1.12 |
||
| replacement | |||||
|
9011906817
|
9011906817
90119-A0044 New Genuine Part |
90119-A0044 |
US $2.97 |
||
|
9011908633
|
9011908633
90119-08633 New Genuine Part |
90119-08633 |
from US $1.60 |
||
|
9011908971
|
9011908971
90119-08971 New Genuine Part |
90119-08971 |
US $3.06 |
||
|
9011910329
|
9011910329
90119-10329 New Genuine Part |
90119-10329 |
US $1.60 |
||
|
9011910640
|
9011910640
90119-10640 New Genuine Part |
90119-10640 |
US $4 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.46 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $33.80 |
||
|
9017910141
|
9017910141
90179-10141
Nut(For Counter Gear Shaft)
|
90179-10141 |
— | ||
| replacement | |||||
|
9017910141
|
9017910141
90179-10132 Nut |
90179-10132 |
from US $0.94 |
||
|
9162160816
|
9162160816
91621-60816
New Genuine Part
|
91621-60816 |
— | ||
| replacement | |||||
|
9162160816
|
9162160816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.84 |
||
