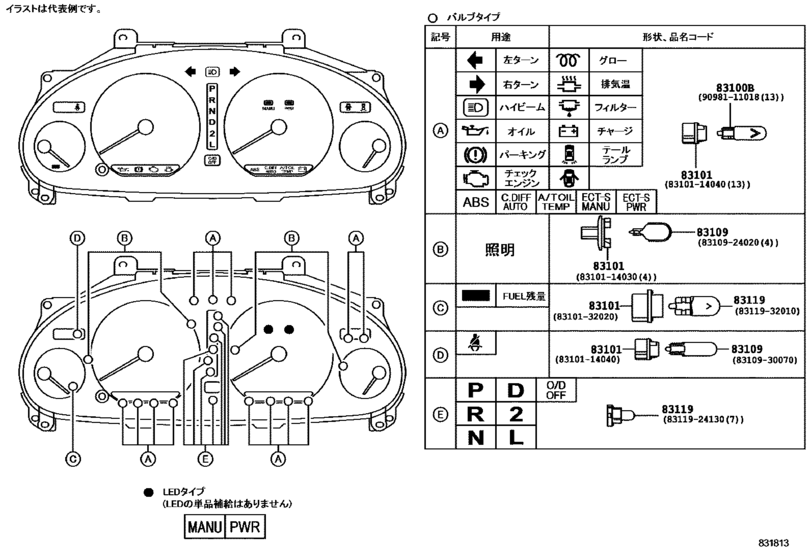

Meter ([02.1992 - ] ﾊﾞﾙﾌﾞ & ｿｹｯﾄ - ｱﾘ(ﾀｺﾒｰﾀ) (9202- )) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[08.1994 - 08.1996] AT192..ATM..SX １２Ｖ １．２Ｗ ソケット無し; ST195..ATM..SX;AT19#..ATM..(SG,SGI,SL,SXI) １２Ｖ １．２Ｗ ソケット無し; AT191,ST195..ATM..(SE,SEEXT) １２Ｖ １．２Ｗ ソケット無し |
90981-11018 |
from US $2.07 |
||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI BULB:12V 3.4W |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[08.1994 - 08.1996] ST195..ATM..SX;AT19#..ATM..(SG,SGI,SL,SXI) BULB:12V 1.4W |
83101-14040 |
US $2.93 |
||
|
83101
|
83101
83101-32020 Socket Sub-Assy, Combination Meter Bulb[08.1994 - 08.1996] CT19#..SE;AT19#,ST195..ATM;AT19#,ST195..MTM..(SE,SL,SX,SXI) BULB:12V 3.0W |
83101-32020 |
from US $2.22 |
||
|
83109
|
83109
83109-24020 Bulb, Combination Meter, No.1[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI １２Ｖ ３．４Ｗ キャップ付き |
83109-24020 |
from US $5.95 |
||
|
83109
|
83109
83109-30070 Bulb, Combination Meter, No.1[08.1992 - 08.1996] AT19#,CT19#,ST19# １４Ｖ ２．０Ｗ，ソケットなし |
83109-30070 |
US $2.45 |
||
|
83119
|
83119
83119-24130 Bulb, Combination Meter, No.1[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM..(SE,SEEXT,SL,SX,SXI) １２Ｖ １．４Ｗ ホワイト ソケット付き |
83119-24130 |
US $13.12 |
||
|
83119
|
83119
83119-32010 Bulb, Combination Meter, No.1[08.1992 - 08.1996] AT19#,CT19#,ST19# １４Ｖ ３．０Ｗ |
83119-32010 |
from US $2.24 |
