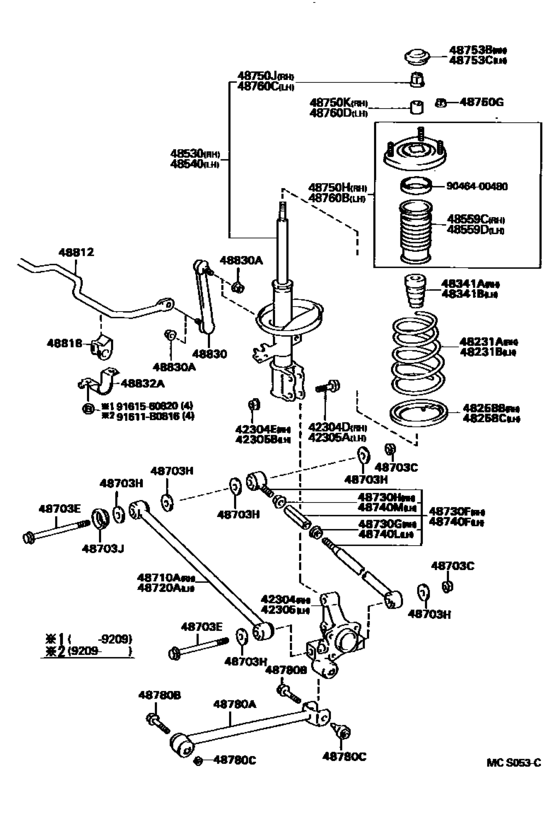

Rear Spring & Shock Absorber ([08.1994 - ] (9408- )AT19#,CT190) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42304
|
42304
42304-20140 Carrier Sub-Assy, Rear Axle, Rh[08.1992 - 01.1996] CT190;AT19#,ST190..SE,SEEXT,SX,SXI |
42304-20140 |
US $219.86 |
||
| replacement | |||||
|
42304
|
42304
42304-20320 Carrier Sub-Assy, Rear Axle, Rh[08.1992 - 01.1996] CT190;AT19#,ST190..SE,SEEXT,SX,SXI |
42304-20320 |
US $219.86 |
||
|
42304
|
42304
42304-20160 Carrier Sub-Assy, Rear Axle, Rh[08.1992 - 01.1996] CT190;AT19#,ST190..SE,SEEXT,SX,SXI ｱﾘ(ABS) |
42304-20160 |
US $219.86 |
||
| replacement | |||||
|
42304
|
42304
42304-20300 Carrier Sub-Assy, Rear Axle, Rh[08.1992 - 01.1996] CT190;AT19#,ST190..SE,SEEXT,SX,SXI ｱﾘ(ABS) |
42304-20300 |
US $215.49 |
||
|
42304
|
42304
42304-20300 Carrier Sub-Assy, Rear Axle, Rh[01.1996 - 08.1996] CT190;AT19#..SEEXT,SX,SXI ｱﾘ(ABS); AT19#..SG,SGI ｱﾘ(ABS) & 175/70R14,5.5JJ |
42304-20300 |
US $215.49 |
||
|
42304
|
42304
42304-20320 Carrier Sub-Assy, Rear Axle, Rh[01.1996 - 08.1996] CT190;AT19#..SEEXT,SX,SXI; AT19#..SG,SGI 175/70R14,5.5JJ |
42304-20320 |
US $219.86 |
||
|
42304D
|
42304D
90105-15001 Bolt (For Rear Axle Carrier)[08.1992 - 08.1996] AT19#,CT19#,ST19# |
90105-15001 |
US $6.56 |
||
|
42304E
|
42304E
90179-15001 Nut (For Rear Axle Carrier)[08.1992 - 08.1996] AT19#,CT19#,ST19# |
90179-15001 |
US $5.60 |
||
|
42305
|
42305
42305-20140 Carrier Sub-Assy, Rear Axle, Lh[08.1992 - 01.1996] CT190;AT19#,ST190..SE,SEEXT,SX,SXI |
42305-20140 |
US $219.86 |
||
| replacement | |||||
|
42305
|
42305
42305-20320 Carrier Sub-Assy, Rear Axle, Lh[08.1992 - 01.1996] CT190;AT19#,ST190..SE,SEEXT,SX,SXI |
42305-20320 |
US $219.86 |
||
|
42305
|
42305
42305-20160 Carrier Sub-Assy, Rear Axle, Lh[08.1992 - 01.1996] CT190;AT19#,ST190..SE,SEEXT,SX,SXI ｱﾘ(ABS) |
42305-20160 |
US $219.86 |
||
| replacement | |||||
|
42305
|
42305
42305-20300 Carrier Sub-Assy, Rear Axle, Lh[08.1992 - 01.1996] CT190;AT19#,ST190..SE,SEEXT,SX,SXI ｱﾘ(ABS) |
42305-20300 |
from US $180.32 |
||
|
42305
|
42305
42305-20300 Carrier Sub-Assy, Rear Axle, Lh[01.1996 - 08.1996] AT191..SL; CT190;AT19#..SEEXT,SX,SXI ｱﾘ(ABS); AT19#..SG,SGI ｱﾘ(ABS) & 175/70R14,5.5JJ |
42305-20300 |
from US $180.32 |
||
|
42305
|
42305
42305-20320 Carrier Sub-Assy, Rear Axle, Lh[01.1996 - 08.1996] CT190;AT19#..SEEXT,SX,SXI; AT19#..SG,SGI 175/70R14,5.5JJ |
42305-20320 |
US $219.86 |
||
|
42305A
|
42305A
90105-15001 Bolt (For Rear Axle Carrier)[08.1992 - 08.1996] AT19#,CT19#,ST19# |
90105-15001 |
US $6.56 |
||
|
42305B
|
42305B
90179-15001 Nut (For Rear Axle Carrier)[08.1992 - 08.1996] AT19#,CT19#,ST19# |
90179-15001 |
US $5.60 |
||
|
48231A
|
48231A
48231-2D820 Spring, Coil, Rear Rh[08.1994 - 08.1996] CT190;AT19#..SEEXT,SX,SXI; AT19#..SG,SGI ｱﾘ(ABS) & 175/70R14,5.5JJ |
48231-2D820 |
US $131.04 |
||
|
48231B
|
48231B
48231-2D820 Spring, Coil, Rear Rh[08.1994 - 08.1996] CT190;AT19#..SEEXT,SX,SXI; AT19#..SG,SGI ｱﾘ(ABS) & 175/70R14,5.5JJ |
48231-2D820 |
US $131.04 |
||
|
48258B
|
48258B
48258-32010 Insulator, Rear Coil Spring, Lower[08.1992 - 08.1996] AT19#,CT19#,ST19# |
48258-32010 |
from US $11.84 |
||
|
48258C
|
48258C
48258-32010 Insulator, Rear Coil Spring, Lower[08.1992 - 08.1996] AT19#,CT19#,ST19# |
48258-32010 |
from US $11.84 |
||
|
48341A
|
48341A
48341-20190 Bumper, Rear Spring, No.1 Rh[08.1992 - 08.1996] AT19#..SEEXT,SG,SGI,SX,SXI |
48341-20190 |
from US $12.23 |
||
|
48341B
|
48341B
48341-20190 Bumper, Rear Spring, No.1 Rh[08.1992 - 08.1996] AT19#..SEEXT,SG,SGI,SX,SXI |
48341-20190 |
from US $12.23 |
||
|
48530
|
48530
48530-29445 Absorber Assy, Shock, Rear Rh[08.1994 - 08.1996] AT19#..SEEXT,SG,SGI,SX,SXI |
48530-29445 |
US $327.60 |
||
| replacement | |||||
|
48530
|
48530
48530-29505
Absorber Assy, Shock, Rear Rh
[08.1994 - 08.1996] AT19#..SEEXT,SG,SGI,SX,SXI |
48530-29505 |
— | ||
|
48540
|
48540
48540-29145 Absorber Assy, Shock, Rear Lh[08.1994 - 08.1996] AT19#..SEEXT,SG,SGI,SX,SXI |
48540-29145 |
US $327.60 |
||
| replacement | |||||
|
48540
|
48540
48540-29185 Absorber Assy, Shock, Rear Lh[08.1994 - 08.1996] AT19#..SEEXT,SG,SGI,SX,SXI |
48540-29185 |
US $330.51 |
||
|
48559C
|
48559C
48559-20060 Cover, Rear Shock Absober Dust, Rh No.1[08.1992 - 08.1996] AT19#,CT19#,ST19# |
48559-20060 |
US $84.45 |
||
| replacement | |||||
|
48559C
|
48559C
48559-20040 Cover, Rear Shock Absober Dust, Rh No.1[08.1992 - 08.1996] AT19#,CT19#,ST19# |
48559-20040 |
from US $30.23 |
||
|
48559D
|
48559D
48559-20060 Cover, Rear Shock Absober Dust, Rh No.1[08.1992 - 08.1996] AT19#,CT19#,ST19# |
48559-20060 |
US $84.45 |
||
| replacement | |||||
|
48559D
|
48559D
48559-20040 Cover, Rear Shock Absober Dust, Rh No.1[08.1992 - 08.1996] AT19#,CT19#,ST19# |
48559-20040 |
from US $30.23 |
||
|
48703C
|
48703C
90179-14019 Nut[08.1992 - 08.1996] AT19#,CT190,ST190; CT195,ST195 ＮＯ．２ |
90179-14019 |
from US $1.40 |
||
|
48703E
|
48703E
90901-09001 Bolt(For Rear Suspension Arm)[08.1992 - 08.1996] AT19#,CT190,ST190 ＊１４−１．５０ＰＸ２６０−２６,ＮＯ．１ |
90901-09001 |
from US $20.62 |
||
|
48703E
|
48703E
90901-19001 Bolt(For Rear Suspension Arm)[08.1992 - 08.1996] AT19#,CT190,ST190 ＊１４−１．５０ＰＸ２６０−２６,ＮＯ．２ |
90901-19001 |
from US $17.82 |
||
|
48703H
|
48703H
90201-14017 Washer(For Rear Suspension Arm)[08.1992 - 08.1996] AT19#,CT190,ST190 |
90201-14017 |
US $4.89 |
||
|
48703J
|
48703J
48715-20030 Washer, No.2(For Rear Suspension Arm)[01.1996 - 08.1996] AT19#,CT190 |
48715-20030 |
US $4.95 |
||
|
48703J
|
48703J
48715-32010 Washer, No.2(For Rear Suspension Arm)[08.1992 - 01.1996] AT19#,CT190,ST190 |
48715-32010 |
US $7.27 |
||
|
48710A
|
48710A
48710-20230
Arm Assy, Rear Suspension, No.1 Rh
[08.1994 - 08.1996] AT19#..SEEXT,SG,SGI,SX,SXI |
48710-20230 |
— | ||
|
48720A
|
48720A
48710-20230
Arm Assy, Rear Suspension, No.1 Rh
[08.1994 - 08.1996] AT19#..SEEXT,SG,SGI,SX,SXI |
48710-20230 |
— | ||
|
48730F
|
48730F
48730-20160
Arm Assy, Rear Suspension, No.2 Rh
[08.1992 - 08.1996] AT19#,CT190,ST190..SE,SEEXT,SG,SGI,SX,SXI |
48730-20160 |
— | ||
|
48730G
|
48730G
90179-16022 Nut, No.1(For Rear Suspension Arm No.2)[08.1992 - 08.1996] AT19#,CT190,ST190 |
90179-16022 |
US $3.20 |
||
|
48730H
|
48730H
90179-16021 Nut, No.2(For Arm Assy, Rear Suspension, No.2)[08.1992 - 08.1996] AT19#,CT190,ST190 |
90179-16021 |
US $3.06 |
||
|
48740F
|
48740F
48740-20050
Arm Assy, Rear Suspension, No.2 Lh
[08.1992 - 08.1996] AT19#,CT190,ST190..SE,SEEXT,SG,SGI,SX,SXI |
48740-20050 |
— | ||
|
48740L
|
48740L
90179-16022 Nut, No.1(For Rear Suspension Arm No.2)[08.1992 - 08.1996] AT19#,CT190,ST190 |
90179-16022 |
US $3.20 |
||
|
48740M
|
48740M
90179-16021 Nut, No.2(For Arm Assy, Rear Suspension, No.2)[08.1992 - 08.1996] AT19#,CT190,ST190 |
90179-16021 |
US $3.06 |
||
|
48750G
|
48750G
90179-08122 Nut(For Rear Suspension Support)[08.1992 - 08.1996] AT19#,CT19#,ST19# |
90179-08122 |
US $7.04 |
||
|
48750H
|
48750H
48750-20100
Support Assy, Rear Suspension, Rh
[08.1994 - 08.1996] AT19#,CT19#,ST195 |
48750-20100 |
— | ||
| replacement | |||||
|
48750H
|
48750H
48750-21020 Support Assy, Rear Suspension, Rh[08.1994 - 08.1996] AT19#,CT19#,ST195 |
48750-21020 |
US $115.32 |
||
|
48750J
|
48750J
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting)[08.1992 - 06.1995] AT19#,CT19#,ST19# |
90179-14015 |
from US $1.93 |
||
|
48750J
|
48750J
94184-61400 Nut(For Idler Arm Support)[06.1995 - 08.1996] AT19#,CT19#,ST195 |
94184-61400 |
US $3.84 |
||
|
48750K
|
48750K
90387-15027 Collar(For Rear Support To Rear Shock Absorber)[08.1994 - 08.1996] AT19#,CT19#,ST195 |
90387-15027 |
from US $3.53 |
||
|
48753B
|
48753B
48753-20040 Cover, Rear Suspension Supoport, No.1 Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
48753-20040 |
US $8.88 |
||
|
48753C
|
48753C
48753-20040 Cover, Rear Suspension Supoport, No.1 Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
48753-20040 |
US $8.88 |
||
|
48760B
|
48760B
48750-20100
Support Assy, Rear Suspension, Rh
[08.1994 - 08.1996] AT19#,CT19#,ST195 |
48750-20100 |
— | ||
| replacement | |||||
|
48760B
|
48760B
48750-21020 Support Assy, Rear Suspension, Rh[08.1994 - 08.1996] AT19#,CT19#,ST195 |
48750-21020 |
US $115.32 |
||
|
48760C
|
48760C
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting)[08.1992 - 06.1995] AT19#,CT19#,ST19# |
90179-14015 |
from US $1.93 |
||
|
48760C
|
48760C
94184-61400 Nut(For Idler Arm Support)[06.1995 - 08.1996] AT19#,CT19#,ST195 |
94184-61400 |
US $3.84 |
||
|
48760D
|
48760D
90387-15027 Collar(For Rear Support To Rear Shock Absorber)[08.1994 - 08.1996] AT19#,CT19#,ST195 |
90387-15027 |
from US $3.53 |
||
|
48780A
|
48780A
48780-20080 Rod Assy, Strut, Rear[08.1992 - 08.1996] AT19#,CT190,ST190 |
48780-20080 |
from US $91.73 |
||
|
48780B
|
48780B
90119-12131 Bolt(For Strut Rod)[08.1992 - 08.1996] AT19#,CT19#,ST19# |
90119-12131 |
from US $3.53 |
||
| replacement | |||||
|
48780B
|
48780B
90080-11133 Bolt(For Strut Rod)[08.1992 - 08.1996] AT19#,CT19#,ST19# |
90080-11133 |
US $10.95 |
||
|
48780C
|
48780C
90179-12091 Nut(For Front Suspension Lower Arm)[08.1994 - 08.1996] AT19#,CT19#,ST195 ＮＯ．２ |
90179-12091 |
from US $1.17 |
||
|
48780C
|
48780C
90179-12114 Nut(For Strut Rod)[08.1992 - 08.1996] AT19#,CT19#,ST19# ＮＯ．１ |
90179-12114 |
US $2.91 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $1.03 |
||
|
9046400480
|
9046400480
90464-00480 New Genuine Part |
90464-00480 |
US $5.12 |
||
|
9161560820
|
9161560820
91615-60820
Bolt (For Transmission Control Cable Bracket)
|
91615-60820 |
— | ||
| replacement | |||||
|
9161560820
|
9161560820
91611-B0816 Bolt |
91611-B0816 |
from US $1.03 |
||
