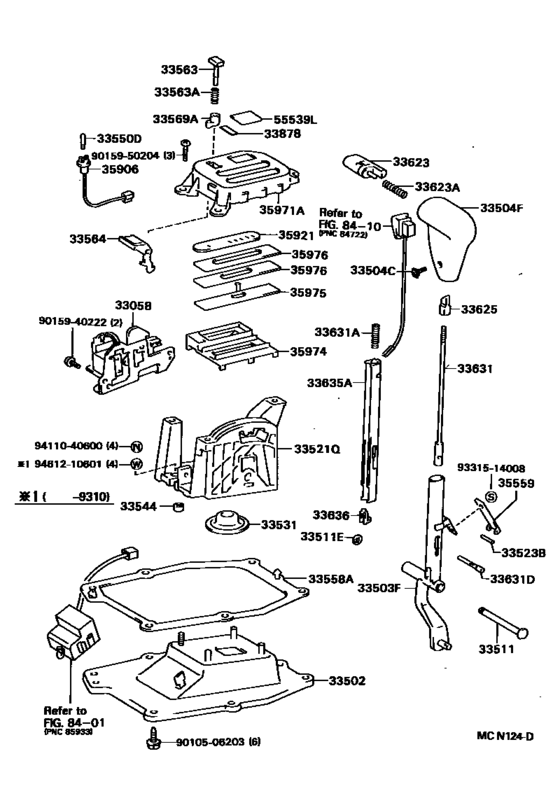

Shift Lever & Retainer ([08.1992 - ] (9208- )ATM) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33058
|
33058
33560-20010 Bracket Sub-Assy, Shift Lock Solenoid[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM |
33560-20010 |
US $170.35 |
||
|
33502
|
33502
33502-20320 Plate Sub-Assy, Shift Lever[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM |
33502-20320 |
US $110.66 |
||
|
33503F
|
33503F
33503-20520 Lever Sub-Assy, Shift(For Floor Shift)[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM |
33503-20520 |
US $74.26 |
||
|
33504C
|
33504C
90159-40109 Bolt Or Pin (For Shift Lever Knob Setting)[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM |
90159-40109 |
US $1.28 |
||
|
33504F
|
33504F
33542-20100-C0 Knob Sub-Assy, Shift Lever (Urethane) Black[08.1992 - 08.1996] AT191,ST190..ATM..SL BLACK,TRIM1#; AT19#,CT190,ST19#..ATM..(SE,SEEXT,SG,SGI,SX,SXI) BLACK,TRIM1#,4# |
33542-20100-C0 |
US $46.82 |
||
|
33511
|
33511
33511-20270 Shaft, Control (For Floor Shift)[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM |
33511-20270 |
US $56.93 |
||
|
33511E
|
33511E
90520-08001 Ring, Snap (For Floor Shift Control Shaft)[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM |
90520-08001 |
US $1.75 |
||
|
33521Q
|
33521Q
33521-20240 Housing, Shift Lever (For Floor Shift)[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM |
33521-20240 |
US $36.40 |
||
|
33523B
|
33523B
90249-02005 Pin, Shift Lever (For Floor Shift)[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM |
90249-02005 |
US $2.04 |
||
|
33531
|
33531
33531-20010 Boot, Dust (For Control Shift Lever)[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM |
33531-20010 |
US $13.25 |
||
|
33544
|
33544
33544-33010 Collar (For Floor Shift Setting)[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM |
33544-33010 |
from US $1.60 |
||
|
33550D
|
33550D
90981-11018 Bulb, Position Indicator Lamp[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM １２Ｖ １．２Ｗ ソケット無し |
90981-11018 |
from US $2.07 |
||
|
33558A
|
33558A
33558-20010 Seal, Shift Lever Boot Dust, No.1[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM |
33558-20010 |
US $25.33 |
||
|
33563
|
33563
33563-20060 Button, Shift Lock Release[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM |
33563-20060 |
US $4.08 |
||
|
33563A
|
33563A
90501-06063 Spring, Compression (For Shift Lock Release Button)[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM |
90501-06063 |
US $1.89 |
||
|
33564
|
33564
33564-20050 Link, Shift Lock Release, No.1[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM |
33564-20050 |
US $3.64 |
||
|
33569A
|
33569A
33569-20040 Guide, Shift Lock Release Button[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM |
33569-20040 |
US $5.39 |
||
|
33623
|
33623
33623-20060-C0 Button, Shift Lever Knob[08.1992 - 08.1996] AT191,ST190..ATM..SL BLACK,TRIM1#; AT19#,CT190,ST19#..ATM..(SE,SEEXT,SG,SGI,SX,SXI) BLACK,TRIM1#,4# |
33623-20060-C0 |
US $15.20 |
||
|
33623A
|
33623A
90501-07009 Spring, Compression (For Shift Lever Knob)[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM |
90501-07009 |
from US $4.49 |
||
|
33625
|
33625
33625-24010 Sleeve, Shift Lever Knob[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM |
33625-24010 |
US $6.46 |
||
|
33631
|
33631
33631-16050 Rod, Detent[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM |
33631-16050 |
US $14.41 |
||
|
33631A
|
33631A
90501-07074 Spring, Compression (For Detent Rod)[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM |
90501-07074 |
US $0.79 |
||
|
33631D
|
33631D
90256-04008 Pin, Shift Lever Stop[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM |
90256-04008 |
US $4.22 |
||
|
33635A
|
33635A
33635-20050 Guide, Wire, No.1 (For Shift Lever)[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM |
33635-20050 |
US $11.36 |
||
|
33636
|
33636
33636-35010 Protector, Wire[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM |
33636-35010 |
US $2.56 |
||
|
33878
|
33878
33878-27010 Label, Shift Lock Information, No.2[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM |
33878-27010 |
US $2.10 |
||
|
35559
|
35559
35559-33010 Spring, Manual Detent[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM |
35559-33010 |
US $5.53 |
||
|
35906
|
35906
35906-20070 Wire Sub-Assy, Indicator Lamp[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM |
35906-20070 |
US $18.78 |
||
| replacement | |||||
|
35906
|
35906
35906-42040
Wire Sub-Assy, Indicator Lamp
[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM |
35906-42040 |
— | ||
|
35921
|
35921
35921-20310 Plate, Control Position Indicator[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM |
35921-20310 |
US $54.31 |
||
|
35971A
|
35971A
35971-20230 Housing, Position Indicator, Upper[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM |
35971-20230 |
US $35.53 |
||
|
35974
|
35974
35974-20160 Housing, Position Indicator, Lower[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM |
35974-20160 |
US $31.16 |
||
|
35975
|
35975
35975-20120 Cover, Slide (For Position Indicator)[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM |
35975-20120 |
US $17.04 |
||
|
35976
|
35976
35976-20050 Cover, Slide, No.2 (For Position Indicator)[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM LOWER |
35976-20050 |
US $11.65 |
||
|
35976
|
35976
35976-20060 Cover, Slide, No.2 (For Position Indicator)[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM UPPER |
35976-20060 |
US $15.43 |
||
|
9010506203
|
9010506203
90105-06203 Bolt |
90105-06203 |
US $1.60 |
||
| replacement | |||||
|
9010506203
|
9010506203
90105-06258 BOLT, WASHER BASED |
90105-06258 |
US $1.76 |
||
|
9015940222
|
9015940222
90159-40222 New Genuine Part |
90159-40222 |
US $1.60 |
||
|
9015950204
|
9015950204
90159-50204
New Genuine Part
|
90159-50204 |
— | ||
|
9331514008
|
9331514008
93315-14008 New Genuine Part |
93315-14008 |
US $1.16 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.66 |
||
|
9461210601
|
9461210601
94612-10601 New Genuine Part |
94612-10601 |
US $0.87 |
||
