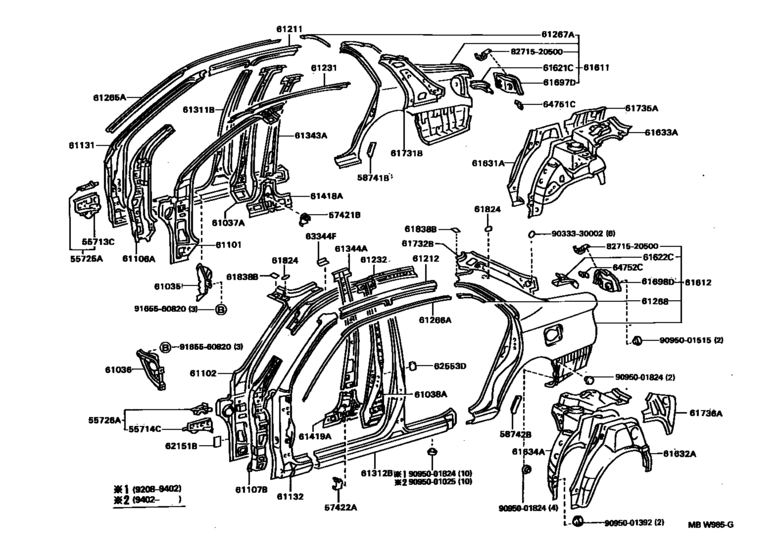

Side Member ([08.1992 - ] (9208- )) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55713C
|
55713C
55713-20130 Panel, Cowl Top Side, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
55713-20130 |
US $51.40 |
||
|
55714C
|
55714C
55714-20140 Panel, Cowl Top Side, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
55714-20140 |
US $51.40 |
||
|
55725A
|
55725A
55725-20901 Reinforcement, Hood Hinge Mounting, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
55725-20901 |
US $69.01 |
||
|
55726A
|
55726A
55726-20901 Reinforcement, Hood Hinge Mounting, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
55726-20901 |
US $69.01 |
||
|
57421B
|
57421B
57421-20040 Plate, Floor Side Rail, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
57421-20040 |
US $17.47 |
||
|
57422A
|
57422A
57421-20040 Plate, Floor Side Rail, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
57421-20040 |
US $17.47 |
||
|
58741B
|
58741B
58741-20130 Protector, Quarter Panel, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# ｶﾝﾚｲﾁ ｼﾖｳ |
58741-20130 |
US $11.07 |
||
|
58742B
|
58742B
58742-20120 Protector, Quarter Panel, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# ｶﾝﾚｲﾁ ｼﾖｳ |
58742-20120 |
US $11.07 |
||
|
61035
|
61035
55774-20090 Bracket, Cowl Top Inner To Pillar Brace, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
55774-20090 |
US $36.69 |
||
|
61036
|
61036
55775-20070 Bracket, Cowl Top Inner To Pillar Brace, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
55775-20070 |
US $36.69 |
||
|
61037A
|
61037A
61037-20020 Reinforcement Sub-Assy, Center Body Pillar, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61037-20020 |
US $158.70 |
||
|
61038A
|
61038A
61038-20020 Reinforcement Sub-Assy, Center Body Pillar, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61038-20020 |
US $158.70 |
||
|
61101
|
61101
61101-20903 Panel Sub-Assy, Cowl Side, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61101-20903 |
US $133.95 |
||
|
61102
|
61102
61102-20903 Panel Sub-Assy, Cowl Side, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61102-20903 |
US $133.95 |
||
|
61106A
|
61106A
61106-20220 Reinforce Sub-Assy, Front Body Pillar, Upper Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61106-20220 |
US $117.94 |
||
|
61107B
|
61107B
61107-20210 Reinforce Sub-Assy, Front Body Pillar, Upper Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61107-20210 |
US $117.94 |
||
|
61131
|
61131
61131-20430 Pillar, Front Body, Upper Outer Rh[08.1992 - 08.1996] AT190..M;AT190..SGI;AT191,192,CT19#,ST19#..SG,SGI,SX,SXI |
61131-20430 |
US $294.11 |
||
|
61131
|
61131
61131-20440 Pillar, Front Body, Upper Outer Rh[04.1996 - 08.1996] AT19#..SX,SXI ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ |
61131-20440 |
US $294.11 |
||
|
61132
|
61132
61132-20380 Pillar, Front Body, Upper Outer Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61132-20380 |
US $294.11 |
||
|
61211
|
61211
61211-20250 Rail, Roof Side, Outer Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61211-20250 |
US $147.06 |
||
|
61212
|
61212
61212-20250 Rail, Roof Side, Outer Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61212-20250 |
US $147.06 |
||
|
61231
|
61231
61231-20380 Rail, Roof Side, Inner Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61231-20380 |
US $91.73 |
||
|
61232
|
61232
61232-20370 Rail, Roof Side, Inner Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61232-20370 |
US $91.73 |
||
|
61265A
|
61265A
61265-20080 Channel, Roof Drip Side, Center Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61265-20080 |
US $27.23 |
||
|
61266A
|
61266A
61266-20080 Channel, Roof Drip Side, Center Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61266-20080 |
US $27.23 |
||
|
61267A
|
61267A
61267-20080 Channel, Roof Drip Side, Rear Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61267-20080 |
US $21.11 |
||
|
61268
|
61268
61268-20080 Channel, Roof Drip Side, Rear Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61268-20080 |
US $21.11 |
||
|
61311B
|
61311B
61311-20250 Pillar, Center Body, Outer Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61311-20250 |
US $562.02 |
||
|
61312B
|
61312B
61312-20320 Pillar, Center Body, Outer Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61312-20320 |
US $562.02 |
||
|
61343A
|
61343A
61343-20120 Pillar, Center Body, Inner Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61343-20120 |
US $377.10 |
||
|
61344A
|
61344A
61344-20120 Pillar, Center Body, Inner Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61344-20120 |
US $377.10 |
||
|
61418A
|
61418A
61418-20130 Reinforcement, Rocker Panel, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61418-20130 |
US $57.66 |
||
|
61419A
|
61419A
61419-20110 Reinforcement, Rocker Panel, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61419-20110 |
US $57.66 |
||
|
61611
|
61611
61601-2B750 Panel, Quarter, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61601-2B750 |
US $812.45 |
||
| replacements | |||||
|
61611
|
61611
61601-2B916 Rail Sub-assy, Center Door, Under[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61601-2B916 |
US $809.54 |
||
|
61611
|
61611
61621-20190 Trough, Luggage Compartment Opening, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61621-20190 |
US $30.28 |
||
|
61611
|
61611
61697-20050 Housing, Quarter Panel End, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61697-20050 |
US $57.08 |
||
|
61612
|
61612
61602-2D200 Panel, Quarter, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61602-2D200 |
US $812.45 |
||
| replacements | |||||
|
61612
|
61612
61602-2D916 New Genuine Part[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61602-2D916 |
US $809.54 |
||
|
61612
|
61612
61622-20190 Trough, Luggage Compartment Opening, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61622-20190 |
US $30.28 |
||
|
61612
|
61612
61698-20050 Housing, Quarter Panel End, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61698-20050 |
US $57.08 |
||
|
61621C
|
61621C
61621-20190 Trough, Luggage Compartment Opening, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61621-20190 |
US $30.28 |
||
|
61622C
|
61622C
61622-20190 Trough, Luggage Compartment Opening, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61622-20190 |
US $30.28 |
||
|
61631A
|
61631A
61631-20270 Panel, Quarter Wheel House, Outer Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61631-20270 |
US $174.72 |
||
|
61632A
|
61632A
61632-20250 Panel, Quarter Wheel House, Outer Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61632-20250 |
US $174.72 |
||
|
61633A
|
61633A
61603-2B903 Panel, Quarter Wheel House, Inner Rh[08.1992 - 08.1996] AT190..M;AT190..SGI;AT191,192,CT19#,ST19#..SG,SGI,SX,SXI |
61603-2B903 |
US $301.39 |
||
| replacement | |||||
|
61633A
|
61633A
61603-2B904 Panel, Quarter Wheel House, Inner Rh[08.1992 - 08.1996] AT190..M;AT190..SGI;AT191,192,CT19#,ST19#..SG,SGI,SX,SXI |
61603-2B904 |
US $304.30 |
||
|
61633A
|
61633A
61603-2B904 Panel, Quarter Wheel House, Inner Rh[06.1995 - 08.1996] AT19#..SG,SGI ｱﾘ(ABS); AT19#..SX,SXI;CT19#,ST195..SG,SX ｱﾘ(ABS) |
61603-2B904 |
US $304.30 |
||
|
61634A
|
61634A
61604-2B903 Panel, Quarter Wheel House, Inner Lh[08.1992 - 08.1996] AT190..M;AT190..SGI;AT191,192,CT19#,ST19#..SG,SGI,SX,SXI |
61604-2B903 |
US $301.39 |
||
| replacement | |||||
|
61634A
|
61634A
61604-2B904 Panel, Quarter Wheel House, Inner Lh[08.1992 - 08.1996] AT190..M;AT190..SGI;AT191,192,CT19#,ST19#..SG,SGI,SX,SXI |
61604-2B904 |
US $304.30 |
||
|
61634A
|
61634A
61604-2B904 Panel, Quarter Wheel House, Inner Lh[06.1995 - 08.1996] AT19#..SG,SGI ｱﾘ(ABS); AT19#..SX,SXI;CT19#,ST195..SG,SX ｱﾘ(ABS) |
61604-2B904 |
US $304.30 |
||
|
61697D
|
61697D
61697-20050 Housing, Quarter Panel End, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61697-20050 |
US $57.08 |
||
|
61698D
|
61698D
61698-20050 Housing, Quarter Panel End, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61698-20050 |
US $57.08 |
||
|
61731B
|
61731B
61731-20290 Panel, Roof Side, Inner Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61731-20290 |
US $96.10 |
||
|
61732B
|
61732B
61732-20290 Panel, Roof Side, Inner Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61732-20290 |
US $96.10 |
||
|
61735A
|
61735A
61735-20200 Panel, Roof Side, Inner Rear Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61735-20200 |
US $56.64 |
||
|
61736A
|
61736A
61736-20190 Panel, Roof Side, Inner Rear Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61736-20190 |
US $31.60 |
||
|
61838B
|
61838B
61838-20050 Plate, Noise Control, No.2[08.1992 - 08.1996] AT19#,CT19#,ST19# |
61838-20050 |
US $5.10 |
||
|
62151B
|
62151B
62939-32020 Pad, Cowl Side Silencer[08.1992 - 08.1996] AT19#,CT19#,ST19# |
62939-32020 |
US $6.70 |
||
|
8271520500
|
8271520500
82715-20500 Bracket,wiring Harness Clamp |
82715-20500 |
US $8.15 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.05 |
||
|
9095001025
|
9095001025
90950-01025 Plug, Hole(For Front Fender Apron) |
90950-01025 |
US $3.84 |
||
|
9095001392
|
9095001392
90950-01392 Plug, Hole(For Luggage Compartment Door Panel) |
90950-01392 |
from US $1.13 |
||
|
9095001515
|
9095001515
90950-01515 New Genuine Part |
90950-01515 |
US $2.62 |
||
|
9095001824
|
9095001824
90950-01824 PLUG HOLE |
90950-01824 |
from US $1.76 |
||
|
9165560820
|
9165560820
91655-60820
BOLT
|
91655-60820 |
— | ||
| replacement | |||||
|
9165560820
|
9165560820
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
