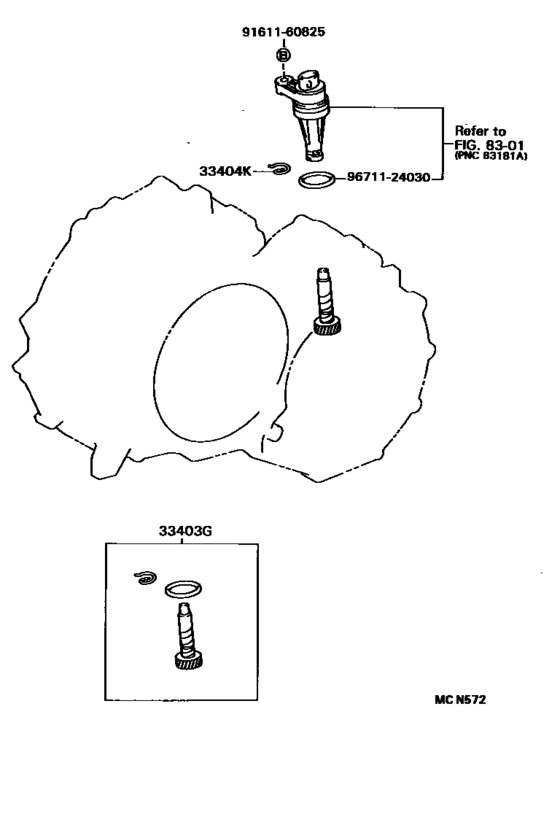

Speedometer Driven Gear (Atm) ([08.1992 - ] A245E (9208- )AT19#..ATM) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33403G
|
33403G
33403-29395 Gear Sub-Assy, Speedometer Driven (Atm)[08.1994 - 08.1996] AT190,191..ATM 歯数＝２９，マーク ２９：３５ |
33403-29395 |
from US $15.68 |
||
|
33404K
|
33404K
90468-12005 Clip (For Mtm Speedometer Shaft Sleeve)[08.1992 - 08.1996] AT19#,CT190,ST19#..ATM |
90468-12005 |
US $1.44 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
|
9671124030
|
9671124030
96711-24030 Ring,o (For Speedometer Driven Hole Cover) |
96711-24030 |
from US $2.22 |
||
