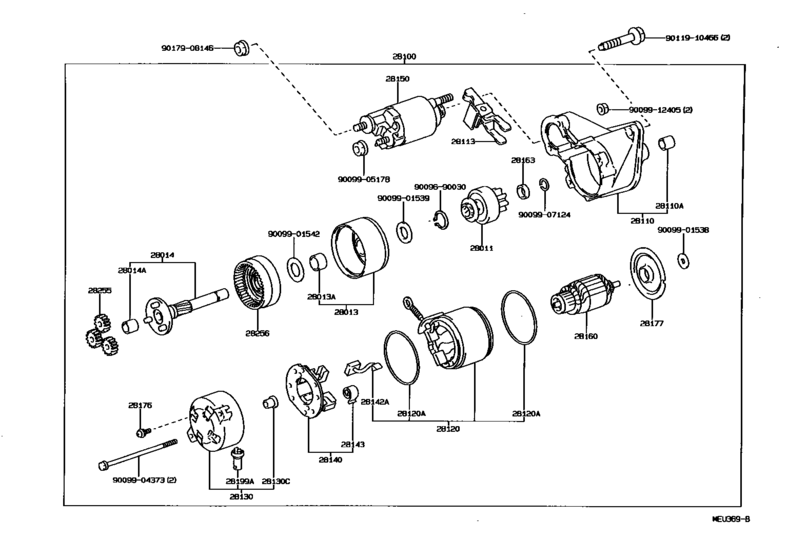

Starter ([08.1992 - ] 12V 0.8KW (9208- )4AFE,5AFE,7AFE) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-70020 Clutch Sub-Assy, Starter[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
28011-70020 |
US $43.51 |
||
|
28011
|
28011
28011-76070 Clutch Sub-Assy, Starter[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# ｶﾝﾚｲﾁ ｼﾖｳ |
28011-76070 |
from US $50.80 |
||
|
28013
|
28013
28013-70020 Bearing, Starter Center & Shock Absorber, No.1[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
28013-70020 |
US $29.12 |
||
| replacement | |||||
|
28013
|
28013
28013-70030 Bearing, Starter Center & Shock Absorber, No.1[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
28013-70030 |
US $24.32 |
||
|
28013A
|
28013A
90099-10181
Bearing, Starter Center & Shock Absorber, No.2
[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
90099-10181 |
— | ||
|
28014
|
28014
28014-70020 Shaft Sub-Assy, Planet Carrier[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
28014-70020 |
US $23.15 |
||
|
28014A
|
28014A
90099-10180
Bush Or Bearing, Planet Carrier Shaft
[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
90099-10180 |
— | ||
|
28100
|
28100
28100-16160 Starter Assy[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# １２Ｖ ０．８ＫＷ |
28100-16160 |
US $899.81 |
||
| replacement | |||||
|
28100
|
28100
28100-16230 Starter Assy[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# １２Ｖ ０．８ＫＷ |
28100-16230 |
US $899.81 |
||
|
28100
|
28100
28100-16180 Starter Assy[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# １２Ｖ １．２ＫＷ,ｶﾝﾚｲﾁ ｼﾖｳ |
28100-16180 |
US $1,349.71 |
||
| replacement | |||||
|
28100
|
28100
28100-16240 Starter Assy[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# １２Ｖ １．２ＫＷ,ｶﾝﾚｲﾁ ｼﾖｳ |
28100-16240 |
US $1,413.78 |
||
|
28110
|
28110
28110-16130 Housing Assy, Starter Drive[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# ｶﾝﾚｲﾁ ｼﾖｳ |
28110-16130 |
US $57.95 |
||
|
28110
|
28110
28110-16160 Housing Assy, Starter Drive[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
28110-16160 |
US $96.10 |
||
|
28110A
|
28110A
90099-10171
Bearing(For Starter Housing)
[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
90099-10171 |
— | ||
|
28113
|
28113
28113-16070 Lever, Starter Pinion Drive[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
28113-16070 |
US $12.41 |
||
|
28120
|
28120
28120-16180
Yoke Assy, Starter
[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# ｶﾝﾚｲﾁ ｼﾖｳ |
28120-16180 |
— | ||
|
28120
|
28120
28120-70020 Yoke Assy, Starter[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
28120-70020 |
from US $103.95 |
||
|
28120A
|
28120A
90099-14092
Ring, O(For Starter Yoke)
[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
90099-14092 |
— | ||
|
28130
|
28130
28130-16070
Frame Assy, Starter Commutator End
[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
28130-16070 |
— | ||
|
28130
|
28130
28130-16180
Frame Assy, Starter Commutator End
[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# ｶﾝﾚｲﾁ ｼﾖｳ |
28130-16180 |
— | ||
|
28130C
|
28130C
90099-10183
Bearing, Starter Flange
[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
90099-10183 |
— | ||
|
28140
|
28140
28140-70020 Holder Assy, Starter Brush[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
28140-70020 |
from US $22.19 |
||
|
28140
|
28140
28140-76060
Holder Assy, Starter Brush
[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# ｶﾝﾚｲﾁ ｼﾖｳ |
28140-76060 |
— | ||
|
28142A
|
28142A
28142-70020 Brush, Starter[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
28142-70020 |
from US $2.81 |
||
|
28143
|
28143
28143-70020
Spring, Starter Brush
[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
28143-70020 |
— | ||
|
28143
|
28143
28143-76060
Spring, Starter Brush
[08.1992 - 08.1996] 3SFE,4SFE..ST19#; 4AFE,5AFE,7AFE..AT19# ｶﾝﾚｲﾁ ｼﾖｳ |
28143-76060 |
— | ||
|
28150
|
28150
28150-16160 Switch Assy, Magnet Starter[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
28150-16160 |
US $125.22 |
||
|
28150
|
28150
28150-16181 Switch Assy, Magnet Starter[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# ｶﾝﾚｲﾁ ｼﾖｳ |
28150-16181 |
US $214.03 |
||
| replacement | |||||
|
28150
|
28150
28150-72230 Switch Assy, Magnetic[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# ｶﾝﾚｲﾁ ｼﾖｳ |
28150-72230 |
US $139.78 |
||
|
28160
|
28160
28160-70021 Armature Assy, Starter[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
28160-70021 |
US $131.04 |
||
|
28160
|
28160
28160-76060 Armature Assy, Starter[08.1992 - 08.1996] 3SFE,4SFE..ST19#; 4AFE,5AFE,7AFE..AT19# ｶﾝﾚｲﾁ ｼﾖｳ |
28160-76060 |
US $318.86 |
||
|
28163
|
28163
28163-70020
Nut Or Collar, Pinion Stop, Starter
[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
28163-70020 |
— | ||
|
28176
|
28176
28176-15090
Screw, Starter
[08.1992 - 10.1995] 4AFE,5AFE,7AFE,2C,3SFE,4SFE..AT19#,CT19#,ST19# |
28176-15090 |
— | ||
| replacement | |||||
|
28176
|
28176
28176-87701
Screw, Starter
[08.1992 - 10.1995] 4AFE,5AFE,7AFE,2C,3SFE,4SFE..AT19#,CT19#,ST19# |
28176-87701 |
— | ||
|
28176
|
28176
90099-00270
Screw, Starter
[10.1995 - 08.1996] 4AFE,5AFE,7AFE,2C,3SFE..AT19#,CT19#,ST195 |
90099-00270 |
— | ||
|
28177
|
28177
28177-70020
Plate(For Starter Armature)
[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
28177-70020 |
— | ||
|
28199A
|
28199A
28199-46080 Cover, Starter End Frame[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
28199-46080 |
from US $2.97 |
||
|
28199A
|
28199A
28199-74110 Cover, Starter End Frame[08.1992 - 08.1996] 2C,3SFE,4SFE..CT19#,ST19#; 4AFE,5AFE,7AFE..AT19# ｶﾝﾚｲﾁ ｼﾖｳ |
28199-74110 |
US $2.97 |
||
|
28255
|
28255
28255-70020
Gear, Planet
[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
28255-70020 |
— | ||
|
28256
|
28256
28256-70020
Gear, Starter Internal
[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
28256-70020 |
— | ||
|
9009690030
|
9009690030
90096-90030
Ring, Snap, Starter Clutch Housing Disc
|
90096-90030 |
— | ||
|
9009901538
|
9009901538
90099-01538
New Genuine Part
|
90099-01538 |
— | ||
|
9009901539
|
9009901539
90099-01539
New Genuine Part
|
90099-01539 |
— | ||
|
9009901542
|
9009901542
90099-01542
New Genuine Part
|
90099-01542 |
— | ||
|
9009904373
|
9009904373
90099-04373
BOLTTHROUGH
|
90099-04373 |
— | ||
|
9009905178
|
9009905178
90099-05178
New Genuine Part
|
90099-05178 |
— | ||
|
9009907124
|
9009907124
90099-07124
Bearing(For Starter Housing)
|
90099-07124 |
— | ||
|
9009912405
|
9009912405
90099-12405
New Genuine Part
|
90099-12405 |
— | ||
|
9011910466
|
9011910466
90119-10466
Bolt(For Transaxle & Engine Setting)
|
90119-10466 |
— | ||
| replacement | |||||
|
9011910466
|
9011910466
91612-61050 Bolt(For Transaxle & Engine Setting) |
91612-61050 |
from US $1.29 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
