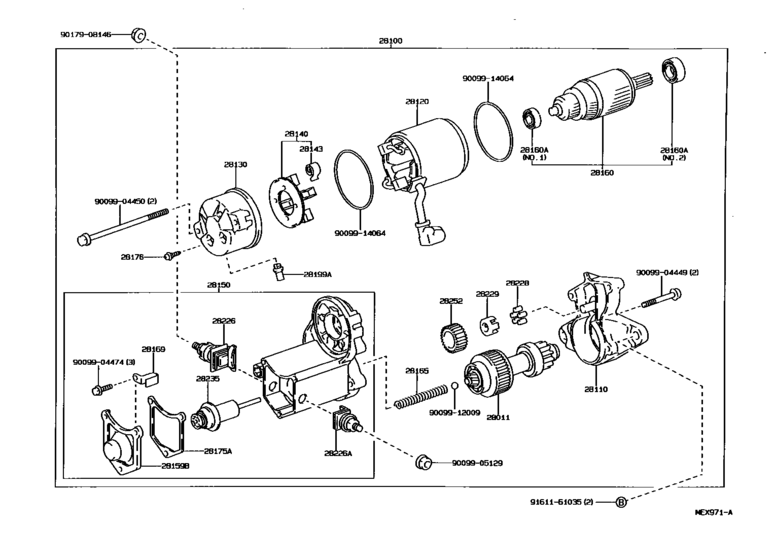

Starter ([08.1992 - ] 12V 1.0KW,ｶﾝﾚｲﾁ ｼﾖｳ (9208- )4AFE,5AFE,7AFE) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-70020 Clutch Sub-Assy, Starter[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
28011-70020 |
US $43.51 |
||
|
28011
|
28011
28011-76070 Clutch Sub-Assy, Starter[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# ｶﾝﾚｲﾁ ｼﾖｳ |
28011-76070 |
from US $50.80 |
||
|
28100
|
28100
28100-16160 Starter Assy[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# １２Ｖ ０．８ＫＷ |
28100-16160 |
US $899.81 |
||
| replacement | |||||
|
28100
|
28100
28100-16230 Starter Assy[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# １２Ｖ ０．８ＫＷ |
28100-16230 |
US $899.81 |
||
|
28100
|
28100
28100-16180 Starter Assy[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# １２Ｖ １．２ＫＷ,ｶﾝﾚｲﾁ ｼﾖｳ |
28100-16180 |
US $1,349.71 |
||
| replacement | |||||
|
28100
|
28100
28100-16240 Starter Assy[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# １２Ｖ １．２ＫＷ,ｶﾝﾚｲﾁ ｼﾖｳ |
28100-16240 |
US $1,413.78 |
||
|
28110
|
28110
28110-16130 Housing Assy, Starter Drive[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# ｶﾝﾚｲﾁ ｼﾖｳ |
28110-16130 |
US $57.95 |
||
|
28110
|
28110
28110-16160 Housing Assy, Starter Drive[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
28110-16160 |
US $96.10 |
||
|
28120
|
28120
28120-16180
Yoke Assy, Starter
[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# ｶﾝﾚｲﾁ ｼﾖｳ |
28120-16180 |
— | ||
|
28120
|
28120
28120-70020 Yoke Assy, Starter[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
28120-70020 |
from US $103.95 |
||
|
28130
|
28130
28130-16070
Frame Assy, Starter Commutator End
[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
28130-16070 |
— | ||
|
28130
|
28130
28130-16180
Frame Assy, Starter Commutator End
[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# ｶﾝﾚｲﾁ ｼﾖｳ |
28130-16180 |
— | ||
|
28140
|
28140
28140-70020 Holder Assy, Starter Brush[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
28140-70020 |
from US $22.19 |
||
|
28140
|
28140
28140-76060
Holder Assy, Starter Brush
[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# ｶﾝﾚｲﾁ ｼﾖｳ |
28140-76060 |
— | ||
|
28143
|
28143
28143-70020
Spring, Starter Brush
[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
28143-70020 |
— | ||
|
28143
|
28143
28143-76060
Spring, Starter Brush
[08.1992 - 08.1996] 3SFE,4SFE..ST19#; 4AFE,5AFE,7AFE..AT19# ｶﾝﾚｲﾁ ｼﾖｳ |
28143-76060 |
— | ||
|
28150
|
28150
28150-16160 Switch Assy, Magnet Starter[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
28150-16160 |
US $125.22 |
||
|
28150
|
28150
28150-16181 Switch Assy, Magnet Starter[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# ｶﾝﾚｲﾁ ｼﾖｳ |
28150-16181 |
US $214.03 |
||
| replacement | |||||
|
28150
|
28150
28150-72230 Switch Assy, Magnetic[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# ｶﾝﾚｲﾁ ｼﾖｳ |
28150-72230 |
US $139.78 |
||
|
28159B
|
28159B
28159-55050
Cover, Starter Protector
[08.1992 - 08.1996] 2C,3SFE,4SFE..CT19#,ST19#; 4AFE,5AFE,7AFE..AT19# ｶﾝﾚｲﾁ ｼﾖｳ |
28159-55050 |
— | ||
|
28160
|
28160
28160-70021 Armature Assy, Starter[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
28160-70021 |
US $131.04 |
||
|
28160
|
28160
28160-76060 Armature Assy, Starter[08.1992 - 08.1996] 3SFE,4SFE..ST19#; 4AFE,5AFE,7AFE..AT19# ｶﾝﾚｲﾁ ｼﾖｳ |
28160-76060 |
US $318.86 |
||
|
28160A
|
28160A
90099-10196 Bearing, Starter Armature[08.1992 - 08.1996] 2C,3SFE,4SFE..CT19#,ST19# ＮＯ．１; 4AFE,5AFE,7AFE..AT19# ｶﾝﾚｲﾁ ｼﾖｳ,ＮＯ．１ |
90099-10196 |
from US $6.12 |
||
|
28160A
|
28160A
90099-10197 Bearing, Starter Armature[08.1992 - 08.1996] 2C,3SFE,4SFE..CT19#,ST19# ＮＯ．２; 4AFE,5AFE,7AFE..AT19# ｶﾝﾚｲﾁ ｼﾖｳ,ＮＯ．２ |
90099-10197 |
from US $7.34 |
||
|
28165
|
28165
28165-76070
Spring, Starter Magnet Switch Return
[08.1992 - 08.1996] 2C..CT19#; 4AFE,5AFE,7AFE..AT19# ｶﾝﾚｲﾁ ｼﾖｳ |
28165-76070 |
— | ||
|
28169
|
28169
28169-55050
Clamp, Starter Motor Lead Wire
[08.1992 - 08.1996] 2C,3SFE,4SFE..CT19#,ST19#; 4AFE,5AFE,7AFE..AT19# ｶﾝﾚｲﾁ ｼﾖｳ |
28169-55050 |
— | ||
|
28175A
|
28175A
28175-55050 Gasket, Magnet Switch Cover[08.1992 - 08.1996] 2C,3SFE,4SFE..CT19#,ST19#; 4AFE,5AFE,7AFE..AT19# ｶﾝﾚｲﾁ ｼﾖｳ |
28175-55050 |
from US $1.91 |
||
|
28176
|
28176
28176-15090
Screw, Starter
[08.1992 - 10.1995] 4AFE,5AFE,7AFE,2C,3SFE,4SFE..AT19#,CT19#,ST19# |
28176-15090 |
— | ||
| replacement | |||||
|
28176
|
28176
28176-87701
Screw, Starter
[08.1992 - 10.1995] 4AFE,5AFE,7AFE,2C,3SFE,4SFE..AT19#,CT19#,ST19# |
28176-87701 |
— | ||
|
28176
|
28176
90099-00270
Screw, Starter
[10.1995 - 08.1996] 4AFE,5AFE,7AFE,2C,3SFE..AT19#,CT19#,ST195 |
90099-00270 |
— | ||
|
28199A
|
28199A
28199-46080 Cover, Starter End Frame[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
28199-46080 |
from US $2.97 |
||
|
28199A
|
28199A
28199-74110 Cover, Starter End Frame[08.1992 - 08.1996] 2C,3SFE,4SFE..CT19#,ST19#; 4AFE,5AFE,7AFE..AT19# ｶﾝﾚｲﾁ ｼﾖｳ |
28199-74110 |
US $2.97 |
||
|
28226
|
28226
28226-55050
Starter Kit, Battery Terminal
[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# ｶﾝﾚｲﾁ ｼﾖｳ |
28226-55050 |
— | ||
| replacement | |||||
|
28226
|
28226
28226-64370 Starter Kit, Battery Terminal[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# ｶﾝﾚｲﾁ ｼﾖｳ |
28226-64370 |
from US $7.12 |
||
|
28226A
|
28226A
28226-74070 Starter Kit, Battery Terminal[08.1992 - 08.1996] 2C,3SFE,4SFE..CT19#,ST19#; 4AFE,5AFE,7AFE..AT19# ｶﾝﾚｲﾁ ｼﾖｳ |
28226-74070 |
from US $9.61 |
||
|
28228
|
28228
28228-26040
Roller, Starter Idle Gear Clutch
[08.1992 - 08.1996] 2C,3SFE,4SFE..CT19#,ST19#; 4AFE,5AFE,7AFE..AT19# ｶﾝﾚｲﾁ ｼﾖｳ |
28228-26040 |
— | ||
|
28229
|
28229
28229-74070 Retainer, Starter Idle Gear[08.1992 - 08.1996] 2C,3SFE,4SFE..CT19#,ST19#; 4AFE,5AFE,7AFE..AT19# ｶﾝﾚｲﾁ ｼﾖｳ |
28229-74070 |
US $1.46 |
||
|
28235
|
28235
28235-55050 Plunger, Magnet Switch[08.1992 - 08.1996] 2C..CT19#; 4AFE,5AFE,7AFE..AT19# ｶﾝﾚｲﾁ ｼﾖｳ |
28235-55050 |
from US $20.27 |
||
|
28252
|
28252
28254-74070
Pinion, Starter Drive
[08.1992 - 08.1996] 3SFE,4SFE..ST19#; 4AFE,5AFE,7AFE..AT19# ｶﾝﾚｲﾁ ｼﾖｳ |
28254-74070 |
— | ||
|
9009904449
|
9009904449
90099-04449
New Genuine Part
|
90099-04449 |
— | ||
|
9009904450
|
9009904450
90099-04450
New Genuine Part
|
90099-04450 |
— | ||
|
9009904474
|
9009904474
90099-04474
New Genuine Part
|
90099-04474 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9009914064
|
9009914064
90099-14064 Rubber(For Starter Yoke) |
90099-14064 |
from US $3.67 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9161161035
|
9161161035
91611-61035
BOLT
|
91611-61035 |
— | ||
| replacement | |||||
|
9161161035
|
9161161035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.60 |
||
