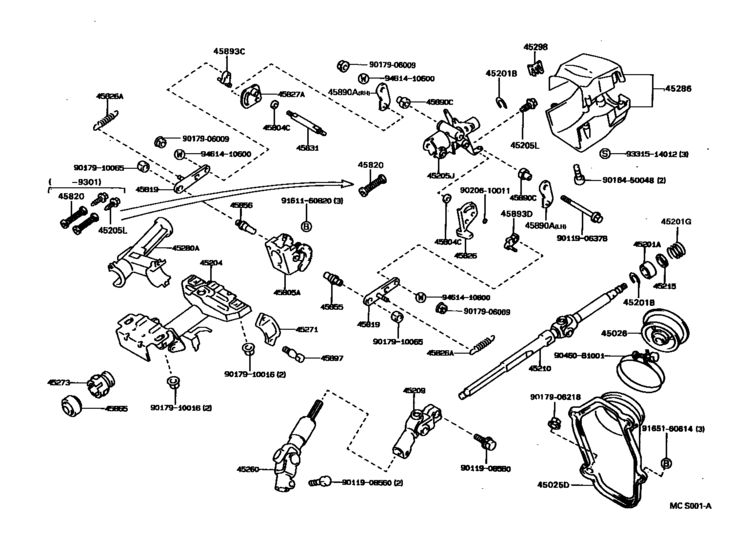

Steering Column & Shaft ([08.1992 - ] ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ (9208- )) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45025D
|
45025D
45025-20350 Cover Sub-Assy, Steering Column Hole, No.1[08.1992 - 08.1996] AT19#,CT190,ST190 |
45025-20350 |
US $32.47 |
||
|
45026
|
45026
45026-20091 Cover Sub-Assy, Steering Column Hole, No.2[12.1992 - 08.1996] AT19#,CT19#,ST19# |
45026-20091 |
from US $16.89 |
||
|
45201A
|
45201A
90363-18005 Bearing(For Steering Main Shaft)[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
90363-18005 |
from US $6.61 |
||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI 厚さ＝１．２０ |
90520-17042 |
from US $0.82 |
||
|
45201G
|
45201G
90501-40017 Spring, Compression(For Steering Main Shaft)[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
90501-40017 |
from US $4.02 |
||
|
45204
|
45204
45204-20150 Tube Assy, Steering Column, Lower[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
45204-20150 |
US $104.83 |
||
|
45205J
|
45205J
45205-12251 Tube Sub-Assy, Steering Column, Upper[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
45205-12251 |
US $99.01 |
||
|
45205L
|
45205L
90119-06569 Screw(For Steering Column Tube)[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
90119-06569 |
US $1.60 |
||
|
45209
|
45209
45209-20040 Yoke Sub-Assy, Steering Sliding[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
45209-20040 |
US $125.22 |
||
|
45210
|
45210
45210-12400
Shaft Assy, Steering Main
[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
45210-12400 |
— | ||
| replacement | |||||
|
45210
|
45210
45210-12560
Shaft Assy, Steering Main
[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
45210-12560 |
— | ||
|
45215
|
45215
45215-12010 Collar, Main Shaft Bearing Thrust[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
45215-12010 |
from US $1.62 |
||
|
45260
|
45260
45260-20260 Shaft Assy, Steering Intermediate, No.2[08.1992 - 08.1996] AT19#,CT190,ST190 |
45260-20260 |
from US $193.25 |
||
|
45271
|
45271
45271-12060 Clamp, Steering Column, Upper[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
45271-12060 |
US $13.44 |
||
|
45273
|
45273
45273-20040 Bush, Steering Main Shaft[08.1993 - 11.1995] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
45273-20040 |
US $6.41 |
||
| replacement | |||||
|
45273
|
45273
45273-20050 Bush, Steering Main Shaft[08.1993 - 11.1995] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
45273-20050 |
from US $6.22 |
||
|
45273
|
45273
45273-20050 Bush, Steering Main Shaft[11.1995 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI |
45273-20050 |
from US $6.22 |
||
|
45280A
|
45280A
45280-20550 Bracket Assy, Steering Column, Upper[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
45280-20550 |
US $165.98 |
||
|
45286
|
45286
45286-20942-C0 Cover, Steering Column[08.1994 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI BLACK,TRIM1# |
45286-20942-C0 |
US $59.11 |
||
| replacement | |||||
|
45286
|
45286
45286-20944-C0 Cover, Steering ColumnSTEERING COLUMN [08.1994 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI BLACK,TRIM1# |
45286-20944-C0 |
from US $59.11 |
||
|
45286
|
45286
45286-20942-E0 Cover, Steering Column[08.1994 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SX,SXI ANTELOPE,TRIM4# |
45286-20942-E0 |
US $59.11 |
||
| replacement | |||||
|
45286
|
45286
45286-20944-C0 Cover, Steering ColumnSTEERING COLUMN [08.1994 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SX,SXI ANTELOPE,TRIM4# |
45286-20944-C0 |
from US $59.11 |
||
|
45298
|
45298
45298-20020-C0 Plug, Steering Column Cover[08.1994 - 08.1996] AT19#,ST195..SL,SX,SXI BLACK,TRIM1# |
45298-20020-C0 |
US $3.64 |
||
|
45298
|
45298
45298-20020-E0 Plug, Steering Column Cover[08.1994 - 08.1996] AT19#,ST195..SX,SXI ANTELOPE,TRIM4# |
45298-20020-E0 |
US $3.64 |
||
| replacement | |||||
|
45298
|
45298
45298-20020-C0 Plug, Steering Column Cover[08.1994 - 08.1996] AT19#,ST195..SX,SXI ANTELOPE,TRIM4# |
45298-20020-C0 |
US $3.64 |
||
|
45804C
|
45804C
90201-10283 Washer, Plate(For Steering Tilt Lever)[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
90201-10283 |
US $2.88 |
||
|
45805A
|
45805A
45805-12010 Support Sub-Assy, Tilt Steering[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
45805-12010 |
US $101.92 |
||
|
45819
|
45819
45819-12020 Retainer, Tilt Lever[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
45819-12020 |
US $4.66 |
||
|
45820
|
45820
45820-12020 Spring Assy, Tilt Steering Support[01.1993 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
45820-12020 |
US $1.75 |
||
|
45826
|
45826
45826-12021
Lever, Steering Tilt
[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
45826-12021 |
— | ||
|
45826A
|
45826A
90507-12029 Spring, Tension(For Steering Tilt Lever)[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
90507-12029 |
US $2.62 |
||
|
45827A
|
45827A
45827-12020 Lever, Steering Tilt Sub[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
45827-12020 |
US $4.66 |
||
|
45831
|
45831
45831-12010 Bolt, Tilt Lever Lock, No.1[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
45831-12010 |
US $12.52 |
||
|
45855
|
45855
45855-12030 Bolt, Tilt Steering, No.1[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI 外径＝９．９８９−９．９９８ |
45855-12030 |
US $5.39 |
||
|
45855
|
45855
45855-12040 Bolt, Tilt Steering, No.1[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI 外径＝９．９９８−１０．００７ |
45855-12040 |
US $8.15 |
||
|
45856
|
45856
45856-12030 Bolt, Tilt Steering, No.2[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI 外径＝９．９８９−９．９９８ |
45856-12030 |
US $4.95 |
||
|
45856
|
45856
45856-12040 Bolt, Tilt Steering, No.2[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI 外径＝９．９９８−１０．００７ |
45856-12040 |
US $4.95 |
||
|
45865
|
45865
45865-12060 Collar, Steering Main Shaft[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
45865-12060 |
US $17.47 |
||
|
45890A
|
45890A
45890-12021 Pawl Assy, Tilt Steering[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI 左側 |
45890-12021 |
US $14.71 |
||
|
45890A
|
45890A
45890-12031 Pawl Assy, Tilt Steering[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI 右側 |
45890-12031 |
US $13.10 |
||
|
45890C
|
45890C
90389-07004 Collar(For Tilt Steering Pawl)[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI マーク ０ |
90389-07004 |
US $3.49 |
||
|
45890C
|
45890C
90389-07005 Collar(For Tilt Steering Pawl)[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI マーク ２ |
90389-07005 |
US $3.49 |
||
|
45890C
|
45890C
90389-07006 Collar(For Tilt Steering Pawl)[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI マーク ３ |
90389-07006 |
US $3.49 |
||
|
45890C
|
45890C
90389-07007 Collar(For Tilt Steering Pawl)[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI マーク ４ |
90389-07007 |
US $3.49 |
||
|
45890C
|
45890C
90389-07008 Collar(For Tilt Steering Pawl)[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI マーク Ａ |
90389-07008 |
US $3.49 |
||
|
45890C
|
45890C
90389-07009 Collar(For Tilt Steering Pawl)[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI マーク ６ |
90389-07009 |
US $3.49 |
||
|
45890C
|
45890C
90389-07010 Collar(For Tilt Steering Pawl)[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI マーク ７ |
90389-07010 |
US $3.49 |
||
|
45890C
|
45890C
90389-07011 Collar(For Tilt Steering Pawl)[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI マーク ８ |
90389-07011 |
US $3.49 |
||
|
45893C
|
45893C
45893-12071 Stopper, Tilt Steering Pawl[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI マーク Ｆ ＯＲ １１ |
45893-12071 |
US $4.66 |
||
|
45893C
|
45893C
45893-12160 Stopper, Tilt Steering Pawl[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI マーク Ｇ ＯＲ １２ |
45893-12160 |
US $4.66 |
||
|
45893C
|
45893C
45893-12170 Stopper, Tilt Steering Pawl[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI マーク Ｈ ＯＲ １３ |
45893-12170 |
US $4.66 |
||
|
45893C
|
45893C
45893-12180 Stopper, Tilt Steering Pawl[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI マーク Ｉ ＯＲ １４ |
45893-12180 |
US $4.66 |
||
|
45893C
|
45893C
45893-12190
Stopper, Tilt Steering Pawl
[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI マーク Ｊ ＯＲ １５ |
45893-12190 |
— | ||
|
45893D
|
45893D
45893-12021 Stopper, Tilt Steering Pawl[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI マーク Ａ |
45893-12021 |
US $4.95 |
||
|
45893D
|
45893D
45893-12120 Stopper, Tilt Steering Pawl[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI マーク Ｂ |
45893-12120 |
US $4.95 |
||
|
45893D
|
45893D
45893-12130 Stopper, Tilt Steering Pawl[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI マーク Ｃ |
45893-12130 |
US $4.95 |
||
|
45893D
|
45893D
45893-12140 Stopper, Tilt Steering Pawl[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI マーク Ｄ |
45893-12140 |
US $4.95 |
||
|
45893D
|
45893D
45893-12150
Stopper, Tilt Steering Pawl
[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI マーク Ｅ |
45893-12150 |
— | ||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[08.1992 - 08.1996] AT19#,CT19#,ST19# |
45897-12020 |
from US $2.73 |
||
|
9011906378
|
9011906378
90119-06378 New Genuine Part |
90119-06378 |
US $2.62 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.27 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 Bolt w-washer |
90080-11555 |
US $44.70 |
||
|
9016450048
|
9016450048
90164-50048 SCREW |
90164-50048 |
from US $0.88 |
||
|
9017906009
|
9017906009
90179-06009
Nut (For Transmission Control Cable)
|
90179-06009 |
— | ||
| replacement | |||||
|
9017906009
|
9017906009
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.90 |
||
|
9017906218
|
9017906218
90179-06218
New Genuine Part
|
90179-06218 |
— | ||
| replacement | |||||
|
9017906218
|
9017906218
90179-06264 NUT, WWASHER |
90179-06264 |
from US $0.86 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.94 |
||
|
9017910065
|
9017910065
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock |
90179-10065 |
from US $1.44 |
||
|
9020610011
|
9020610011
90206-10011 New Genuine Part |
90206-10011 |
US $0.83 |
||
|
9046081001
|
9046081001
90460-81001 New Genuine Part |
90460-81001 |
US $6.84 |
||
| replacement | |||||
|
9046081001
|
9046081001
90460-81003 New Genuine Part |
90460-81003 |
US $6.64 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.31 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.78 |
||
|
9461410600
|
9461410600
94614-10600
Washer (For Primary Regulator Valve)
|
94614-10600 |
— | ||
| replacement | |||||
|
9461410600
|
9461410600
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.12 |
||
