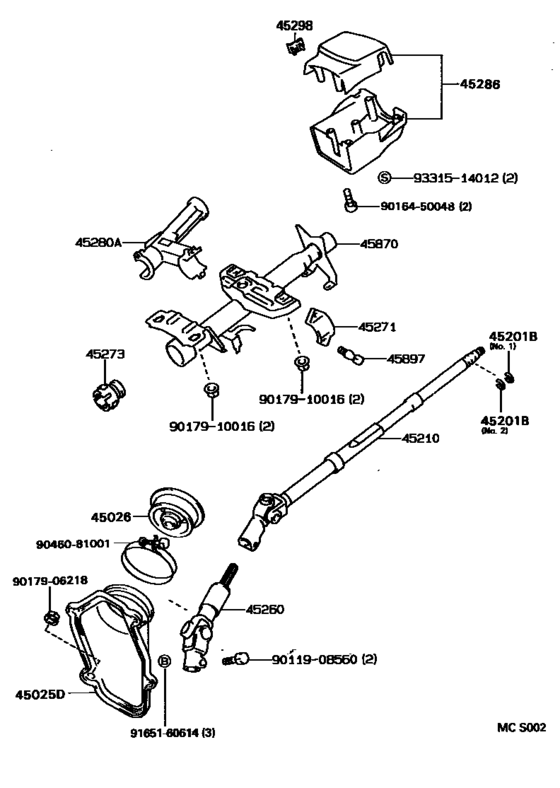

Steering Column & Shaft ([08.1992 - ] (9208- )) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45025D
|
45025D
45025-20350 Cover Sub-Assy, Steering Column Hole, No.1[08.1992 - 08.1996] AT19#,CT190,ST190 |
45025-20350 |
US $32.47 |
||
|
45026
|
45026
45026-20091 Cover Sub-Assy, Steering Column Hole, No.2[12.1992 - 08.1996] AT19#,CT19#,ST19# |
45026-20091 |
from US $16.89 |
||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI 厚さ＝１．２０ |
90520-17042 |
from US $0.82 |
||
|
45210
|
45210
45210-12400
Shaft Assy, Steering Main
[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
45210-12400 |
— | ||
| replacement | |||||
|
45210
|
45210
45210-12560
Shaft Assy, Steering Main
[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
45210-12560 |
— | ||
|
45260
|
45260
45260-20260 Shaft Assy, Steering Intermediate, No.2[08.1992 - 08.1996] AT19#,CT190,ST190 |
45260-20260 |
from US $193.25 |
||
|
45271
|
45271
45271-12060 Clamp, Steering Column, Upper[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
45271-12060 |
US $13.44 |
||
|
45273
|
45273
45273-20040 Bush, Steering Main Shaft[08.1993 - 11.1995] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
45273-20040 |
US $6.41 |
||
| replacement | |||||
|
45273
|
45273
45273-20050 Bush, Steering Main Shaft[08.1993 - 11.1995] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
45273-20050 |
from US $6.22 |
||
|
45273
|
45273
45273-20050 Bush, Steering Main Shaft[11.1995 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI |
45273-20050 |
from US $6.22 |
||
|
45280A
|
45280A
45280-20550 Bracket Assy, Steering Column, Upper[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
45280-20550 |
US $165.98 |
||
|
45286
|
45286
45286-20942-C0 Cover, Steering Column[08.1994 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI BLACK,TRIM1# |
45286-20942-C0 |
US $59.11 |
||
| replacement | |||||
|
45286
|
45286
45286-20944-C0 Cover, Steering ColumnSTEERING COLUMN [08.1994 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI BLACK,TRIM1# |
45286-20944-C0 |
from US $59.11 |
||
|
45286
|
45286
45286-20942-E0 Cover, Steering Column[08.1994 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SX,SXI ANTELOPE,TRIM4# |
45286-20942-E0 |
US $59.11 |
||
| replacement | |||||
|
45286
|
45286
45286-20944-C0 Cover, Steering ColumnSTEERING COLUMN [08.1994 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SX,SXI ANTELOPE,TRIM4# |
45286-20944-C0 |
from US $59.11 |
||
|
45298
|
45298
45298-20020-C0 Plug, Steering Column Cover[08.1994 - 08.1996] AT19#,ST195..SL,SX,SXI BLACK,TRIM1# |
45298-20020-C0 |
US $3.64 |
||
|
45298
|
45298
45298-20020-E0 Plug, Steering Column Cover[08.1994 - 08.1996] AT19#,ST195..SX,SXI ANTELOPE,TRIM4# |
45298-20020-E0 |
US $3.64 |
||
| replacement | |||||
|
45298
|
45298
45298-20020-C0 Plug, Steering Column Cover[08.1994 - 08.1996] AT19#,ST195..SX,SXI ANTELOPE,TRIM4# |
45298-20020-C0 |
US $3.64 |
||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[08.1992 - 08.1996] AT19#,CT19#,ST19# |
45897-12020 |
from US $2.73 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.27 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 Bolt w-washer |
90080-11555 |
US $44.70 |
||
|
9016450048
|
9016450048
90164-50048 SCREW |
90164-50048 |
from US $0.88 |
||
|
9017906218
|
9017906218
90179-06218
New Genuine Part
|
90179-06218 |
— | ||
| replacement | |||||
|
9017906218
|
9017906218
90179-06264 NUT, WWASHER |
90179-06264 |
from US $0.86 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.94 |
||
|
9046081001
|
9046081001
90460-81001 New Genuine Part |
90460-81001 |
US $6.84 |
||
| replacement | |||||
|
9046081001
|
9046081001
90460-81003 New Genuine Part |
90460-81003 |
US $6.64 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.78 |
||
