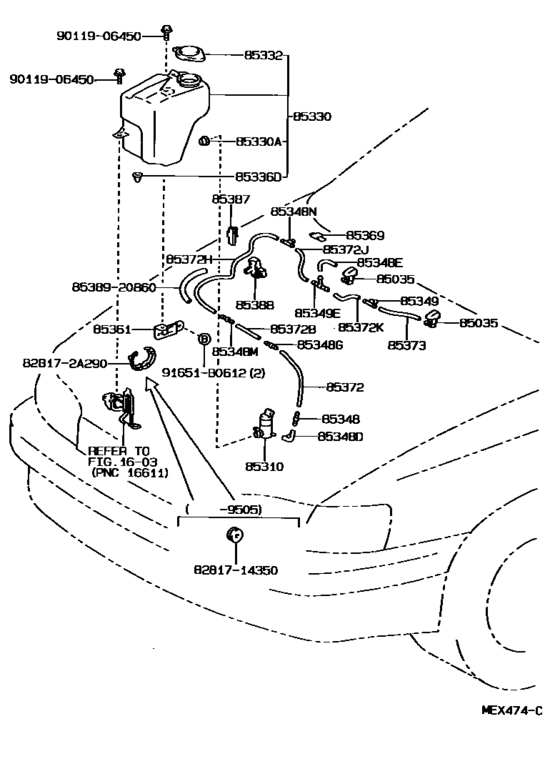

Windshield Washer ([08.1992 - ] ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ (9208- )) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-12050 Nozzle Sub-Assy, Washer[09.1995 - 08.1996] AT19#,CT19#,ST195 右側 |
85381-12050 |
from US $17.20 |
||
|
85035
|
85035
85381-20050
Nozzle Sub-Assy, Washer
[08.1992 - 09.1995] AT19#,CT19#,ST19# 右側 |
85381-20050 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-12050 Nozzle Sub-Assy, Washer[08.1992 - 09.1995] AT19#,CT19#,ST19# 右側 |
85381-12050 |
from US $17.20 |
||
|
85035
|
85035
85382-20030
Nozzle Sub-Assy, Washer
[08.1992 - 08.1996] AT19#,CT19#,ST19# 左側 |
85382-20030 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-12050 Nozzle Sub-Assy, Washer[08.1992 - 08.1996] AT19#,CT19#,ST19# 左側 |
85381-12050 |
from US $17.20 |
||
|
85310
|
85310
85310-20210 Motor And Pump Assy, Windshield Washer[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SG,SGI,SL,SX,SXI |
85310-20210 |
US $151.67 |
||
|
85310
|
85310
85330-12280 Motor And Pump Assy, Windshield Washer[08.1994 - 08.1996] AT19#,CT19#,ST195..SE,SL,SX,SXI ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳｵﾂｼﾔ) |
85330-12280 |
US $76.88 |
||
|
85330
|
85330
85315-20470
Jar Assy, Windshield Washer
[08.1994 - 08.1996] AT19#,CT19#,ST195 |
85315-20470 |
— | ||
|
85330
|
85330
85315-20480
Jar Assy, Windshield Washer
[08.1994 - 08.1996] AT19#,CT19#,ST195 ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ |
85315-20480 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[08.1992 - 08.1996] AT19#,CT19#,ST19# |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[08.1992 - 08.1996] AT19#,CT19#,ST19# |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[08.1992 - 08.1996] AT19#,CT19#,ST19# |
90068-32002 |
US $7.46 |
||
|
85332
|
85332
85316-20300 Cap, Windshield Washer Jar[10.1993 - 08.1996] AT19#,CT19#,ST19# |
85316-20300 |
US $3.14 |
||
|
85336D
|
85336D
85336-20340
Packing, Windshield Washer Jar
[08.1992 - 08.1996] AT19#,CT19#,ST19# |
85336-20340 |
— | ||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[08.1992 - 08.1996] AT19#,CT19#,ST19# |
85349-89122 |
from US $1.25 |
||
|
85348D
|
85348D
85355-14481 Joint, Windshield Washer Elbow, No.1[08.1994 - 08.1996] AT19#,CT19#,ST195 ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ |
85355-14481 |
US $0.98 |
||
|
85348E
|
85348E
85355-14481 Joint, Windshield Washer Elbow, No.1[08.1992 - 08.1996] AT19#,CT19#,ST19# |
85355-14481 |
US $0.98 |
||
|
85348G
|
85348G
85349-89122 Valve Sub-Assy, Washer[08.1994 - 08.1996] AT19#,CT19#,ST195 ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ |
85349-89122 |
from US $1.25 |
||
|
85348M
|
85348M
85375-10260 Joint, Windshield Washer Hose, No.1[08.1992 - 08.1996] AT19#,CT19#,ST19# |
85375-10260 |
from US $1.62 |
||
|
85348N
|
85348N
85375-20800 Joint, Windshield Washer Hose, No.1[08.1992 - 08.1996] AT19#,CT19#,ST19# |
85375-20800 |
from US $1.52 |
||
|
85349
|
85349
85375-17050 Joint, Windshield Washer Hose, No.1[08.1992 - 08.1996] AT19#,CT19#,ST19# |
85375-17050 |
US $1.93 |
||
|
85349E
|
85349E
85375-28110 Joint, Windshield Washer Hose, No.1[08.1992 - 08.1996] AT19#,CT19#,ST19# |
85375-28110 |
US $3.36 |
||
|
85361
|
85361
85361-20830 Holder, Windshield Washer[08.1994 - 08.1996] AT19#,CT19#,ST195 ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ |
85361-20830 |
US $9.03 |
||
|
85361
|
85361
85361-20840 Holder, Windshield Washer[08.1992 - 08.1996] AT19#,CT19#,ST19# |
85361-20840 |
US $8.59 |
||
|
85369
|
85369
85369-50030
Clamp
[08.1992 - 08.1996] AT19#,CT19#,ST19# |
85369-50030 |
— | ||
|
85372
|
85372
90446-07001 Hose, Windshield Washer (From Motor To Joint)[08.1994 - 08.1996] AT19#,CT19#,ST195 ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ |
90446-07001 |
from US $2.10 |
||
|
85372B
|
85372B
90099-33080 Hose, Windshield Washer (From Motor To Joint)[08.1992 - 08.1996] AT19#,CT19#,ST19# Ｌ＝１４５０ |
90099-33080 |
from US $6.16 |
||
|
85372H
|
85372H
90446-07001 Hose, Windshield Washer (From Motor To Joint)[01.1993 - 08.1996] AT19#,CT19#,ST19# |
90446-07001 |
from US $2.10 |
||
|
85372J
|
85372J
90446-07001 Hose, Windshield Washer (From Motor To Joint)[01.1993 - 08.1996] AT19#,CT19#,ST19# |
90446-07001 |
from US $2.10 |
||
|
85372K
|
85372K
90099-59027
Hose, Windshield Washer (From Joint To Joint), No.5
[08.1992 - 08.1996] AT19#,CT19#,ST19# ＊Ｈ，Ｌ＝２３０ |
90099-59027 |
— | ||
| replacement | |||||
|
85372K
|
85372K
90446-07001 Hose, Windshield Washer (From Motor To Joint)[08.1992 - 08.1996] AT19#,CT19#,ST19# ＊Ｈ，Ｌ＝２３０ |
90446-07001 |
from US $2.10 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.1993 - 08.1996] AT19#,CT19#,ST19# Ｌ＝１４５０ |
90099-33080 |
from US $6.16 |
||
|
85387
|
85387
85387-20860
Clamp No.1 (For Windseield Washer)
[08.1992 - 08.1996] AT19#,CT19#,ST19# |
85387-20860 |
— | ||
|
85388
|
85388
85388-20860
Clamp No.2 (For Windseield Washer)
[08.1992 - 08.1996] AT19#,CT19#,ST19# |
85388-20860 |
— | ||
|
91651B0612
|
91651B0612
91651-B0612 Bolt |
91651-B0612 |
US $1.92 |
||
|
828172A290
|
828172A290
82817-2A290 Protector, Wiring Harness, No.1 |
82817-2A290 |
US $5.24 |
||
|
8281714350
|
8281714350
82817-14350 Protector, Wiring Harness, No.1 |
82817-14350 |
US $12.67 |
||
|
8538920860
|
8538920860
85389-20860
Packing, Windshield Washer Hose, No.1
|
85389-20860 |
— | ||
|
9011906450
|
9011906450
90119-06450
New Genuine Part
|
90119-06450 |
— | ||
| replacement | |||||
|
9011906450
|
9011906450
90119-06442 BOLT WWASHER |
90119-06442 |
from US $0.88 |
||
