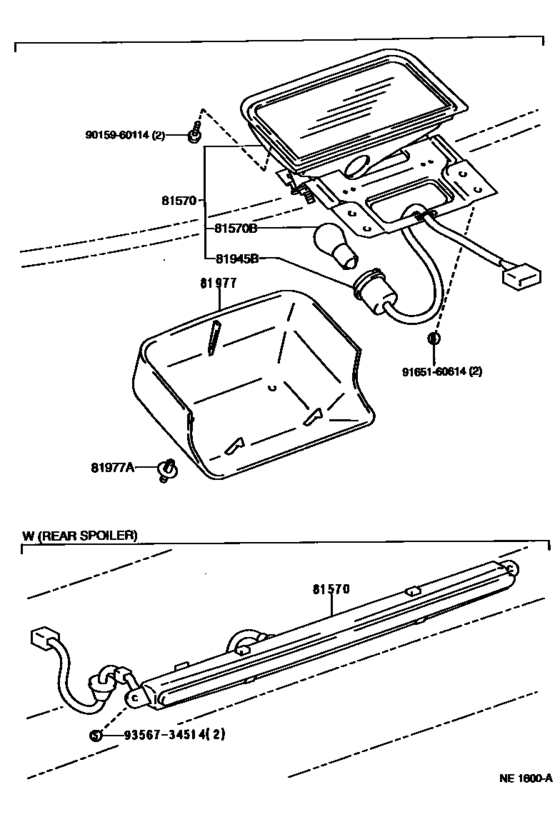

Center Stop Lamp ([01.1996 - ] (9601- )UKP..LB) Diagram Toyota CARINA
- Year
- 1996 - 1997
- Sales region
- Europe
- Frame
- AT191
- grade
- XL
- body
- LB
- ENGINE
- 7AFE
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- CARINA E (UKP)
- From
- 01.1996
- To
- 10.1997
- Vehicle Model
- Carina E
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81570
|
81570
81570-05020
Lamp Assy, Center Stop
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB |
81570-05020 |
— | ||
|
81570B
|
81570B
90080-81035
Bulb(For Rear Combination Lamp)
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP 12V 21W |
90080-81035 |
— | ||
|
81945B
|
81945B
81945-05020
Socket, Stop Center Lamp Bulb
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB |
81945-05020 |
— | ||
|
81977
|
81977
81977-05020-B0
Cover, Center Stop Lamp
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB SHADOW GRAY,TRIM1# |
81977-05020-B0 |
— | ||
|
81977
|
81977
81977-05020-J0
Cover, Center Stop Lamp
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB DK. BLUE,TRIM8# |
81977-05020-J0 |
— | ||
|
81977A
|
81977A
90467-07041-C0 Clip(For Steering Column Cover)[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB BLACK,TRIM1#,8# |
90467-07041-C0 |
from US $0.92 |
||
|
81977A
|
81977A
90467-07041-J0 Clip(For Steering Column Cover)[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB DARK BLUE,TRIM8# |
90467-07041-J0 |
US $1.60 |
||
| replacement | |||||
|
81977A
|
81977A
90467-07041-C0 Clip(For Steering Column Cover)[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB DARK BLUE,TRIM8# |
90467-07041-C0 |
from US $0.92 |
||
|
81977A
|
81977A
90467-07041-P0 Clip(For Rear Seat Side Garnish)[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB SHADOW GRAY,TRIM1# |
90467-07041-P0 |
US $2.24 |
||
|
9015960114
|
9015960114
90159-60114 New Genuine Part |
90159-60114 |
US $1.05 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9356734514
|
9356734514
93567-34514 New Genuine Part |
93567-34514 |
US $1.46 |
||
