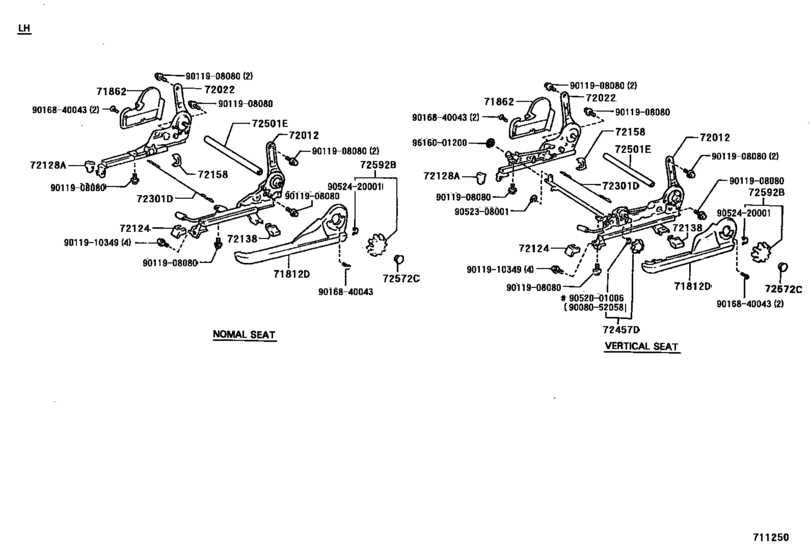

Front Seat & Seat Track ([02.1992 - ] (9202- )UKP) Diagram Toyota CARINA
- Year
- 1996 - 1997
- Sales region
- Europe
- Frame
- AT191
- grade
- XL
- body
- LB
- ENGINE
- 7AFE
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- CARINA E (UKP)
- From
- 01.1996
- To
- 10.1997
- Vehicle Model
- Carina E
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71812D
|
71812D
71812-05010-B0 Shield, Front Seat Cushion, LhFRONT SEAT CUSHION, LH [05.1994 - 10.1997] CT190..UKP..XL;AT19#..UKP..LHD..XL;CT190..UKP..RHD..GL;AT19#,ST191..UKP..RHD SHADOW GRAY,TRIM1# |
71812-05010-B0 |
US $42.95 |
||
|
71812D
|
71812D
71812-05010-J0 Shield, Front Seat Cushion, LhFRONT SEAT CUSHION, LH [08.1993 - 10.1997] CT190..UKP..XL;AT19#..UKP..LHD..XL;CT190..UKP..RHD..GL;AT19#,ST191..UKP..RHD DK. BLUE,TRIM8# |
71812-05010-J0 |
US $42.95 |
||
|
71812D
|
71812D
71812-05020-B0 Shield, Front Seat Cushion, LhFRONT SEAT CUSHION, LH [01.1996 - 10.1997] AT19#,CT190..UKP..LHD..XL W(VERTICAL ADJUSTER),SHADOW GRAY,TRIM1# |
71812-05020-B0 |
US $44.84 |
||
|
71812D
|
71812D
71812-05020-J0
Shield, Front Seat Cushion, Lh
[01.1996 - 10.1997] AT19#,CT190..UKP..LHD..XL W(VERTICAL ADJUSTER),DK. BLUE,TRIM8# |
71812-05020-J0 |
— | ||
|
71862
|
71862
71862-05010-B0 Shield, Front Seat Cushion, Inner LhFRONT SEAT CUSHION, INNER LH [05.1994 - 10.1997] AT19#,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
71862-05010-B0 |
US $26.35 |
||
|
71862
|
71862
71862-05010-J0 Shield, Front Seat Cushion, Inner LhFRONT SEAT CUSHION, INNER LH [01.1994 - 10.1997] AT19#,CT190,ST191..UKP DK. BLUE,TRIM8# |
71862-05010-J0 |
US $26.35 |
||
|
72012
|
72012
72012-05011 Adjuster Sub-Assy, Front Seat, Outer LhFRONT SEAT, OUTER LH [12.1994 - 10.1997] CT190..UKP..XL;AT19#..UKP..LHD..XL;CT190..UKP..RHD..GL;AT19#,ST191..UKP..RHD |
72012-05011 |
US $307.22 |
||
|
72012
|
72012
72012-05021 Adjuster Sub-Assy, Front Seat, Outer LhFRONT SEAT, OUTER LH [01.1996 - 11.1996] AT19#,CT190..UKP..LHD..XL W(VERTICAL ADJUSTER) |
72012-05021 |
US $394.58 |
||
|
72022
|
72022
72022-05011 Adjuster Sub-Assy, Front Seat, Inner LhFRONT SEAT, INNER LH [12.1994 - 10.1997] CT190..UKP..XL;AT19#..UKP..LHD..XL;CT190..UKP..RHD..GL;AT19#,ST191..UKP..RHD |
72022-05011 |
US $282.46 |
||
|
72022
|
72022
72022-05021 Adjuster Sub-Assy, Front Seat, Inner LhFRONT SEAT, INNER LH [01.1996 - 11.1996] AT19#,CT190..UKP..LHD..XL W(VERTICAL ADJUSTER) |
72022-05021 |
US $282.46 |
||
|
72138
|
72138
72138-05010-C0
Cover, Seat Track, Outer Lh
[08.1994 - 10.1997] AT19#,CT190,ST191..UKP BLACK,TRIM1#,8# |
72138-05010-C0 |
— | ||
|
72158
|
72158
72158-05010-C0
Cover, Seat Track Bracket, Inner Lh
[08.1994 - 10.1997] AT19#,CT190,ST191..UKP BLACK,TRIM1#,8# |
72158-05010-C0 |
— | ||
|
72301D
|
72301D
72311-05010 Wire Sub-Assy, Seat Track Equalizing, RhSEAT TRACK EQUALIZING, RH [08.1993 - 10.1997] AT19#,CT190,ST191..UKP |
72311-05010 |
US $4.51 |
||
|
72457D
|
72457D
72457-05010-B0
Knob, Vertical Seat Adjuster, Rh
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LHD SHADOW GRAY,TRIM1# |
72457-05010-B0 |
— | ||
| replacement | |||||
|
72457D
|
72457D
72457-18010-S1 Knob, Vertical Seat Adjuster[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LHD SHADOW GRAY,TRIM1# |
72457-18010-S1 |
US $10.63 |
||
|
72457D
|
72457D
72457-05010-J0
Knob, Vertical Seat Adjuster, Rh
[08.1993 - 10.1997] AT19#,CT190,ST191..UKP..LHD DK. BLUE,TRIM8# |
72457-05010-J0 |
— | ||
|
72501E
|
72501E
72345-05010
Pipe Sub-Assy, Reclining Connecting, Rh
[08.1993 - 10.1997] AT19#,CT190,ST191..UKP |
72345-05010 |
— | ||
|
72572C
|
72572C
72572-05010-B0 Cap, Reclining Adjuster Knob, RhRECLINING ADJUSTER KNOB, RH [05.1994 - 10.1997] AT19#,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
72572-05010-B0 |
US $9.46 |
||
|
72572C
|
72572C
72572-05010-J0 Cap, Reclining Adjuster Knob, RhRECLINING ADJUSTER KNOB, RH [12.1992 - 10.1997] AT19#,CT190,ST191..UKP DK. BLUE,TRIM8# |
72572-05010-J0 |
US $9.46 |
||
|
72592B
|
72592B
72592-05020-B0
Knob,reclining Adjuster, Rh
[05.1994 - 10.1997] AT19#,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
72592-05020-B0 |
— | ||
|
72592B
|
72592B
72592-05020-J0
Knob,reclining Adjuster, Rh
[01.1994 - 10.1997] AT19#,CT190,ST191..UKP DK. BLUE,TRIM8# |
72592-05020-J0 |
— | ||
|
9008052058
|
9008052058
90080-52058
New Genuine Part
|
90080-52058 |
— | ||
|
9011908080
|
9011908080
90119-08080 BOLT |
90119-08080 |
from US $1.44 |
||
|
9011910349
|
9011910349
90119-10349
BOLT
|
90119-10349 |
— | ||
| replacement | |||||
|
9011910349
|
9011910349
91651-G1020 BOLT |
91651-G1020 |
from US $1.07 |
||
|
9016840043
|
9016840043
90168-40043 SCREW |
90168-40043 |
from US $0.74 |
||
|
9052001006
|
9052001006
90520-01006 Ring, Shaft Snap(For Lumber Support Lever) |
90520-01006 |
US $1.28 |
||
|
9052308001
|
9052308001
90523-08001 E Ring (For Tilt Motor Shaft, Lower) |
90523-08001 |
from US $1.40 |
||
|
9052420001
|
9052420001
90524-20001 New Genuine Part |
90524-20001 |
US $2.77 |
||
|
9616001200
|
9616001200
96160-01200 Ring, E(For Clutch Release Cable) |
96160-01200 |
from US $1.56 |
||
