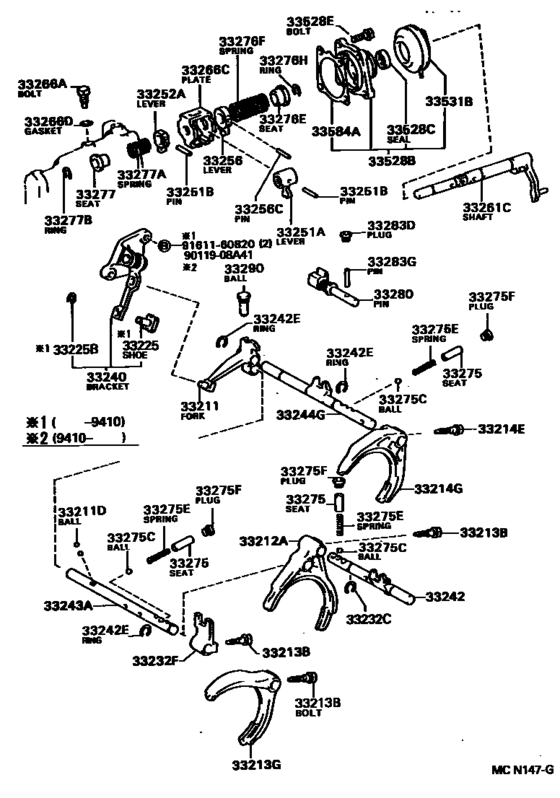

Gear Shift Fork & Lever Shaft (Mtm) ([02.1992 - ] C51,C52,C57 (9202- )AT19#..UKP) Diagram Toyota CARINA
- Year
- 1996 - 1997
- Sales region
- Europe
- Frame
- AT191
- grade
- XL
- body
- LB
- ENGINE
- 7AFE
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- CARINA E (UKP)
- From
- 01.1996
- To
- 10.1997
- Vehicle Model
- Carina E
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33211
|
33211
33211-12021 Fork, Reverse Shift[04.1994 - 10.1997] AT19#..UKP..MTM |
33211-12021 |
US $28.97 |
||
|
33211D
|
33211D
90360-06004 Ball, Detent(For Gear Shift Head No.4)[12.1992 - 10.1997] AT19#..UKP..MTM OD=6.35 |
90360-06004 |
from US $0.84 |
||
| replacement | |||||
|
33211D
|
33211D
90080-36191
Ball, Check Valve
[12.1992 - 10.1997] AT19#..UKP..MTM OD=6.35 |
90080-36191 |
— | ||
|
33212A
|
33212A
33212-10013 Fork, Gear Shift, No.1[12.1992 - 10.1997] AT19#..UKP..MTM |
33212-10013 |
from US $22.50 |
||
|
33213B
|
33213B
90105-06115 Bolt(For Shift Fork Set)[12.1992 - 10.1997] AT19#..UKP..MTM |
90105-06115 |
US $1.44 |
||
|
33213G
|
33213G
33213-10022 Fork, 3Rd & 4Th Shift[12.1992 - 10.1997] AT19#..UKP..MTM |
33213-10022 |
US $32.50 |
||
|
33214E
|
33214E
90105-06115 Bolt(For Shift Fork Set)[12.1992 - 10.1997] AT19#..UKP..MTM |
90105-06115 |
US $1.44 |
||
|
33214G
|
33214G
33214-12030 Fork, Gear Shift, No.3[12.1992 - 10.1997] AT19#..UKP..MTM |
33214-12030 |
US $42.80 |
||
|
33232C
|
33232C
90520-12003 Ring(For Reverse Shift Head)[12.1992 - 10.1997] AT19#..UKP..MTM |
90520-12003 |
from US $0.92 |
||
|
33232F
|
33232F
33232-12012 Head, Gear Shift, No.1[12.1992 - 10.1997] AT19#..UKP..MTM |
33232-12012 |
US $42.52 |
||
|
33240
|
33240
33240-16020 Bracket Assy, Reverse Shift Arm[10.1994 - 10.1997] AT19#..UKP..MTM |
33240-16020 |
US $59.40 |
||
|
33242
|
33242
33205-12022 Shaft Sub-Assy, Gear Shift Fork, No.1[08.1994 - 10.1997] AT19#..UKP..MTM |
33205-12022 |
US $29.12 |
||
|
33242E
|
33242E
90520-12003 Ring(For Reverse Shift Head)[12.1992 - 10.1997] AT19#..UKP..MTM |
90520-12003 |
from US $0.92 |
||
|
33243A
|
33243A
33243-12093 Shaft, Gear Shift Fork, No.2[08.1994 - 10.1997] AT19#..UKP..MTM |
33243-12093 |
US $48.63 |
||
|
33244G
|
33244G
33244-12054
Shaft, Gear Shift Fork, No.3
[08.1994 - 10.1997] AT19#..UKP..MTM |
33244-12054 |
— | ||
|
33251A
|
33251A
33251-10050 Lever, Shift, Inner No.1[12.1992 - 10.1997] AT19#..UKP..MTM |
33251-10050 |
US $24.17 |
||
|
33251B
|
33251B
90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)[12.1992 - 10.1997] AT19#..UKP..MTM L=25.5 |
90254-05016 |
from US $1.97 |
||
|
33252A
|
33252A
33252-12011 Lever, Shift, Inner No.2[06.1993 - 10.1997] AT19#..UKP..MTM |
33252-12011 |
US $5.39 |
||
|
33256
|
33256
33256-12022 Lever, Select Inner[06.1993 - 10.1997] AT19#..UKP..MTM |
33256-12022 |
US $10.05 |
||
|
33256C
|
33256C
90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)[08.1993 - 10.1997] AT19#..UKP..MTM |
90254-05016 |
from US $1.97 |
||
|
33261C
|
33261C
33261-12051
Shaft, Shift & Select Lever
[12.1992 - 10.1997] AT19#..UKP..MTM |
33261-12051 |
— | ||
|
33266A
|
33266A
90109-12019
Bolt (For Shift Inter Lock Plate)
[12.1992 - 04.1997] AT19#..UKP..MTM |
90109-12019 |
— | ||
|
33266A
|
33266A
90109-12073 Bolt (For Shift Inter Lock Plate)[04.1997 - 10.1997] AT19#..UKP..MTM |
90109-12073 |
US $3.06 |
||
|
33266C
|
33266C
33266-12021 Plate, Shift Inter Lock[12.1992 - 10.1997] AT19#..UKP..MTM |
33266-12021 |
US $28.10 |
||
|
33266D
|
33266D
90430-12008 Gasket (For Shift Inter Lock Plate)[12.1992 - 10.1997] AT19#..UKP..MTM |
90430-12008 |
from US $0.88 |
||
|
33275
|
33275
33275-12041 Seat, Shift Detent Ball Spring, No.1[12.1992 - 10.1997] AT19#..UKP..MTM OD=10.7 |
33275-12041 |
US $3.04 |
||
|
33275C
|
33275C
90360-10003 Ball(For Transmission Oil Pump Cover)[12.1992 - 10.1997] AT19#..UKP..MTM |
90360-10003 |
from US $1.19 |
||
|
33275E
|
33275E
90501-12168 Spring, Compression (For Shift Detent Ball)[08.1994 - 10.1997] AT19#..UKP..MTM |
90501-12168 |
US $1.76 |
||
|
33275F
|
33275F
90341-12004 Plug, Oil Pan(For Oil Cooler)[12.1992 - 10.1997] AT19#..UKP..MTM |
90341-12004 |
US $2.24 |
||
|
33276E
|
33276E
33276-12022 Seat, Select Spring, No.1[06.1993 - 10.1997] AT19#..UKP..MTM |
33276-12022 |
US $5.53 |
||
|
33276F
|
33276F
90501-16142 Spring, Compression, No.1 (For Select Return)[08.1993 - 10.1997] AT19#..UKP..MTM |
90501-16142 |
US $2.62 |
||
|
33276H
|
33276H
90520-15003 Ring, Shaft Snap (For Select Spring No.1 Seat)[12.1992 - 10.1997] AT19#..UKP..MTM |
90520-15003 |
US $0.79 |
||
|
33277
|
33277
33277-12011 Seat, Select Spring, No.2[06.1993 - 10.1997] AT19#..UKP..MTM |
33277-12011 |
US $5.53 |
||
|
33277A
|
33277A
90501-16136 Spring, Compression, No.2 (For Select Return)[12.1992 - 10.1997] AT19#..UKP..MTM |
90501-16136 |
US $1.60 |
||
|
33277B
|
33277B
90523-12003 Ring, E(For Reverse Restrict Pin)[12.1992 - 10.1997] AT19#..UKP..MTM |
90523-12003 |
US $0.61 |
||
|
33280
|
33280
33280-12061 Pin Assy, Reverse Restrict[12.1992 - 10.1997] AT19#..UKP..MTM |
33280-12061 |
US $13.83 |
||
|
33283D
|
33283D
90341-10065 Plug, Straight, No.1[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..MTM |
90341-10065 |
from US $3.52 |
||
|
33283G
|
33283G
90254-05003 Pin, Slotted Spring(For Shift Fork Set)[12.1992 - 10.1997] AT19#..UKP..MTM |
90254-05003 |
US $0.70 |
||
|
33290
|
33290
33290-12011 Ball Assy, Lock, No.1[12.1992 - 10.1997] AT19#..UKP..MTM |
33290-12011 |
US $16.77 |
||
|
33528B
|
33528B
33506-12061 Cover, Control Shaft[12.1992 - 10.1997] AT19#..UKP..MTM |
33506-12061 |
US $45.78 |
||
|
33528C
|
33528C
90311-18013 Seal, Oil (For Control Shaft Cover)[12.1992 - 10.1997] AT19#,CT190,ST191..UKP..MTM |
90311-18013 |
from US $2.32 |
||
|
33528E
|
33528E
90119-10288 Bolt (For Control Shaft Cover)[12.1992 - 10.1997] AT19#..UKP..MTM *10-1.25PX25-19.8 |
90119-10288 |
US $0.70 |
||
|
33528E
|
33528E
91611-61025
Bolt(For Transaxle & Engine Setting)
[12.1992 - 10.1997] AT19#..UKP..MTM *10-1.25PX25-25 |
91611-61025 |
— | ||
| replacement | |||||
|
33528E
|
33528E
91612-61025 Bolt (For Control Shaft Cover)[12.1992 - 10.1997] AT19#..UKP..MTM *10-1.25PX25-25 |
91612-61025 |
from US $1.09 |
||
|
33531B
|
33531B
33531-12020 Boot, Dust (For Shift & Select Lever Shaft)[12.1992 - 10.1997] AT19#..UKP..MTM |
33531-12020 |
from US $9.81 |
||
|
33584A
|
33584A
33584-12050 Gasket, Control Shift Lever Retainer[12.1992 - 10.1997] AT19#..UKP..MTM |
33584-12050 |
US $2.97 |
||
|
9011908A41
|
9011908A41
90119-08A41 New Genuine Part |
90119-08A41 |
US $1.02 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.31 |
||
