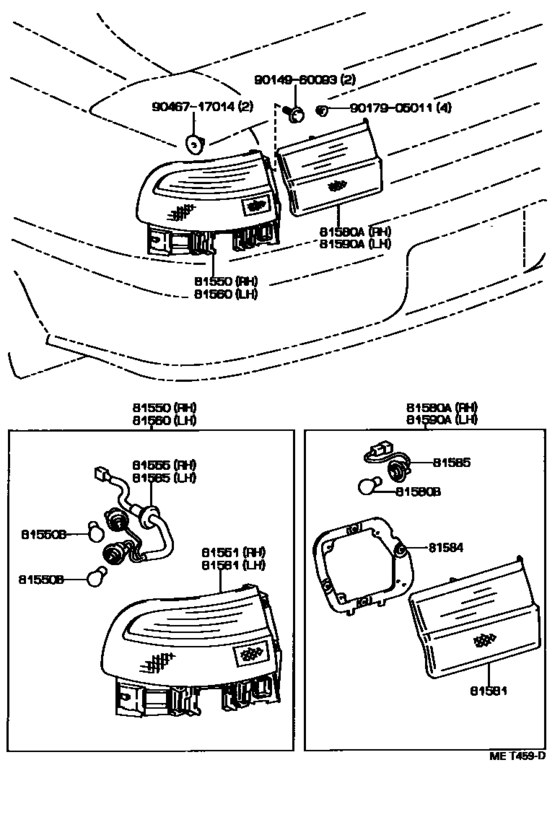

Rear Combination Lamp ([02.1992 - ] (9202- )UKP..LB,SED) Diagram Toyota CARINA
- Year
- 1996 - 1997
- Sales region
- Europe
- Frame
- AT191
- grade
- XL
- body
- LB
- ENGINE
- 7AFE
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- CARINA E (UKP)
- From
- 01.1996
- To
- 10.1997
- Vehicle Model
- Carina E
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-05040
Bulb (For Front Turn Signal Lamp)
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB |
81550-05040 |
— | ||
| replacements | |||||
|
81550
|
81550
81551-05040
Lens, Rear Combination Lamp, Rh
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB |
81551-05040 |
— | ||
|
81550
|
81550
81555-05040
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB |
81555-05040 |
— | ||
|
81550
|
81550
90080-81046
Bulb (For Front Turn Signal Lamp)
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB |
90080-81046 |
— | ||
|
81550
|
81550
99132-21210 Bulb, Cornering Lamp[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB |
99132-21210 |
from US $3.04 |
||
|
81550B
|
81550B
90080-81034
Bulb(For Rear Combination Lamp)
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..(LB,SED) 12V 21/5W |
90080-81034 |
— | ||
|
81550B
|
81550B
90080-81046
Bulb (For Front Turn Signal Lamp)
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..(LB,SED) 12V 21W |
90080-81046 |
— | ||
|
81551
|
81551
81551-05040
Lens, Rear Combination Lamp, Rh
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB |
81551-05040 |
— | ||
|
81555
|
81555
81555-05040
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB |
81555-05040 |
— | ||
|
81560
|
81560
81560-05040
Bulb (For Front Turn Signal Lamp)
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB |
81560-05040 |
— | ||
| replacements | |||||
|
81560
|
81560
81555-05040
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB |
81555-05040 |
— | ||
|
81560
|
81560
81561-05040
Lens, Rear Combination Lamp, Lh
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB |
81561-05040 |
— | ||
|
81560
|
81560
90080-81046
Bulb (For Front Turn Signal Lamp)
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB |
90080-81046 |
— | ||
|
81560
|
81560
99132-21210 Bulb, Cornering Lamp[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB |
99132-21210 |
from US $3.04 |
||
|
81561
|
81561
81561-05040
Lens, Rear Combination Lamp, Lh
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB |
81561-05040 |
— | ||
|
81565
|
81565
81555-05040
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB |
81555-05040 |
— | ||
|
81580A
|
81580A
81580-05040
Lamp Assy, Rear
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB |
81580-05040 |
— | ||
| replacements | |||||
|
81580A
|
81580A
81581-05040
Lens, Rear Lamp
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB |
81581-05040 |
— | ||
|
81580A
|
81580A
81674-05020
Packing, Rear Lamp Rh
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB |
81674-05020 |
— | ||
|
81580A
|
81580A
81675-05040
Socket & Wire, Rear Lamp
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB |
81675-05040 |
— | ||
|
81580A
|
81580A
99132-11210 Bulb (12V 21W)[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB |
99132-11210 |
from US $2.72 |
||
|
81580B
|
81580B
90080-81035
Bulb(For Rear Combination Lamp)
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..(LB,SED) 12V 21W |
90080-81035 |
— | ||
|
81581
|
81581
81581-05040
Lens, Rear Lamp
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB RH |
81581-05040 |
— | ||
|
81581
|
81581
81591-05040
Lens, Rear Lamp
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB LH |
81591-05040 |
— | ||
|
81584
|
81584
81674-05020
Packing, Rear Lamp Rh
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB RH |
81674-05020 |
— | ||
|
81584
|
81584
81684-05010
Packing, Rear Lamp Rh
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB LH |
81684-05010 |
— | ||
|
81585
|
81585
81675-05040
Socket & Wire, Rear Lamp
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB |
81675-05040 |
— | ||
|
81590A
|
81590A
81590-05040
Lamp Assy, Rear, Lh
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB |
81590-05040 |
— | ||
| replacements | |||||
|
81590A
|
81590A
81591-05040
Lens, Rear Lamp
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB |
81591-05040 |
— | ||
|
81590A
|
81590A
81675-05040
Socket & Wire, Rear Lamp
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB |
81675-05040 |
— | ||
|
81590A
|
81590A
81684-05010
Packing, Rear Lamp Rh
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB |
81684-05010 |
— | ||
|
81590A
|
81590A
99132-11210 Bulb (12V 21W)[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB |
99132-11210 |
from US $2.72 |
||
|
9014960093
|
9014960093
90149-60093 New Genuine Part |
90149-60093 |
US $1.92 |
||
|
9017905011
|
9017905011
90179-05011 NUT |
90179-05011 |
from US $0.78 |
||
| replacement | |||||
|
9017905011
|
9017905011
90178-A0005 New Genuine Part |
90178-A0005 |
US $3.02 |
||
|
9046717014
|
9046717014
90467-17014 CLIP |
90467-17014 |
from US $1.83 |
||
