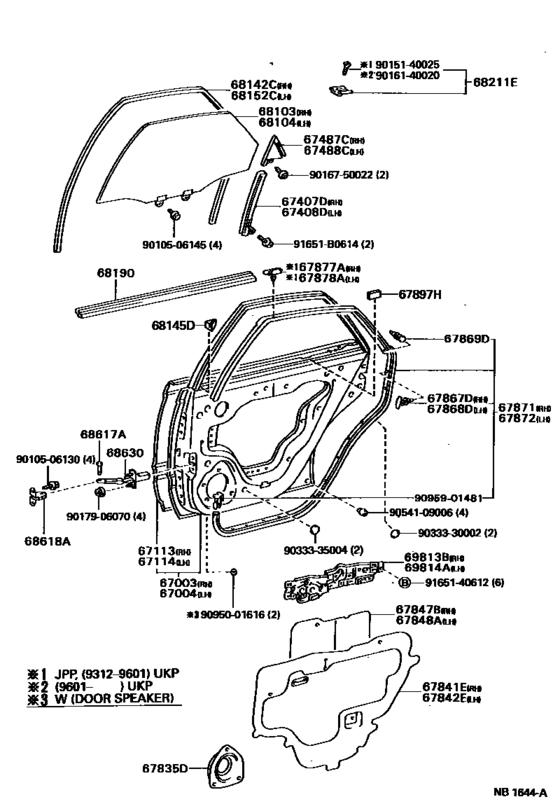

Rear Door Panel & Glass ([02.1992 - ] (9202- )UKP..LB) Diagram Toyota CARINA
- Year
- 1996 - 1997
- Sales region
- Europe
- Frame
- AT191
- grade
- XL
- body
- LB
- ENGINE
- 7AFE
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- CARINA E (UKP)
- From
- 01.1996
- To
- 10.1997
- Vehicle Model
- Carina E
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67003
|
67003
67003-05020
Panel Sub-Assy, Rear Door, Rh
[12.1993 - 10.1997] AT19#,CT190,ST191..UKP..LB |
67003-05020 |
— | ||
|
67004
|
67004
67004-05020
Panel Sub-Assy, Rear Door, Lh
[12.1993 - 10.1997] AT19#,CT190,ST191..UKP..LB |
67004-05020 |
— | ||
|
67113
|
67113
67113-05010
Panel, Rear Door, Outer Rh
[12.1992 - 10.1997] AT19#,CT190,ST191..UKP |
67113-05010 |
— | ||
|
67114
|
67114
67114-05010
Panel, Rear Door, Outer Lh
[12.1992 - 10.1997] AT19#,CT190,ST191..UKP |
67114-05010 |
— | ||
|
67407D
|
67407D
67407-05020
Guide Sub-Assy, Rear Door Window, Rear Rh
[12.1993 - 10.1997] AT19#,CT190,ST191..UKP..LB |
67407-05020 |
— | ||
|
67408D
|
67408D
67408-05020
Guide Sub-Assy, Rear Door Window, Rear Lh
[12.1993 - 10.1997] AT19#,CT190,ST191..UKP..LB |
67408-05020 |
— | ||
|
67487C
|
67487C
67487-20080 Seal, Rear Door Rear Guide, Rh[12.1993 - 10.1997] AT19#,CT190,ST191..UKP..LB |
67487-20080 |
US $56.78 |
||
|
67488C
|
67488C
67488-20090 Seal, Rear Door Rear Guide, Lh[12.1993 - 10.1997] AT19#,CT190,ST191..UKP..LB |
67488-20090 |
US $56.64 |
||
|
67835D
|
67835D
67835-20060 Cover, Rear Door Service Hole, No.3 Rh[12.1992 - 10.1997] AT19#,CT190,ST191..UKP |
67835-20060 |
US $33.20 |
||
|
67841E
|
67841E
67841-05020
Cover, Rear Door Service Hole, Rh
[10.1993 - 10.1997] AT19#,CT190,ST191..UKP (L) |
67841-05020 |
— | ||
|
67842E
|
67842E
67841-05020
Cover, Rear Door Service Hole, Rh
[10.1993 - 10.1997] AT19#,CT190,ST191..UKP (L) |
67841-05020 |
— | ||
|
67847B
|
67847B
67847-05010
Seal, Rear Door Vent, Rh No.1
[12.1993 - 10.1997] AT19#,CT190,ST191..UKP |
67847-05010 |
— | ||
|
67848A
|
67848A
67848-05010
Seal, Rear Door Vent, Lh No.1
[12.1993 - 10.1997] AT19#,CT190,ST191..UKP |
67848-05010 |
— | ||
|
67867D
|
67867D
67867-05010
Clip(For Hood To Cowl Top Seal)
[01.1997 - 10.1997] AT19#,CT190,ST191..UKP..LB |
67867-05010 |
— | ||
| replacement | |||||
|
67867D
|
67867D
67867-12150 Clip(For Hood Air Intake Duct Seal)[01.1997 - 10.1997] AT19#,CT190,ST191..UKP..LB |
67867-12150 |
from US $1.60 |
||
|
67867D
|
67867D
67867-12150 Clip(For Hood Air Intake Duct Seal)[04.1995 - 01.1997] AT19#,CT190,ST191..UKP |
67867-12150 |
from US $1.60 |
||
|
67868D
|
67868D
67867-12150 Clip(For Hood Air Intake Duct Seal)[01.1996 - 01.1997] AT19#,CT190,ST191..UKP..LB |
67867-12150 |
from US $1.60 |
||
|
67868D
|
67868D
67868-05010 Clip(For Hood To Cowl Top Seal)FRONT DOOR WEATHERSTRIP, LH [01.1997 - 10.1997] AT19#,CT190,ST191..UKP..LB |
67868-05010 |
US $2.18 |
||
| replacement | |||||
|
67868D
|
67868D
67867-12150 Clip(For Hood Air Intake Duct Seal)[01.1997 - 10.1997] AT19#,CT190,ST191..UKP..LB |
67867-12150 |
from US $1.60 |
||
|
67869D
|
67869D
67869-12020 Clip, Door Glass Weatherstrip(For Front Door)[12.1992 - 10.1997] AT19#,CT190,ST191..UKP..(LB,SED) |
67869-12020 |
US $2.62 |
||
|
67871
|
67871
67871-05020
Weatherstrip, Rear Door, Rh
[12.1993 - 10.1997] AT19#,CT190,ST191..UKP..LB |
67871-05020 |
— | ||
|
67872
|
67872
67872-05020
Weatherstrip, Rear Door, Lh
[12.1993 - 10.1997] AT19#,CT190,ST191..UKP..LB |
67872-05020 |
— | ||
|
67897H
|
67897H
67897-05010 Cushion, Rear DoorREAR DOOR [08.1996 - 10.1997] AT19#,CT190,ST191..UKP |
67897-05010 |
US $7.13 |
||
|
68103
|
68103
68103-05020
Glass Sub-Assy, Rear Door, Rh
[12.1993 - 10.1997] AT19#,CT190,ST191..UKP..LB *TEM,T=4.0,GREEN |
68103-05020 |
— | ||
|
68104
|
68104
68104-05020
Glass Sub-Assy, Rear Door, Lh
[12.1993 - 10.1997] AT19#,CT190,ST191..UKP..LB *TEM,T=4.0,GREEN |
68104-05020 |
— | ||
|
68142C
|
68142C
68142-05020
Run, Rear Door Glass, Rh
[12.1993 - 10.1997] AT19#,CT190,ST191..UKP..LB |
68142-05020 |
— | ||
|
68145D
|
68145D
68145-05010 Cushion, Front Door WindowFRONT DOOR WINDOW [12.1996 - 10.1997] AT19#,CT190,ST191..UKP |
68145-05010 |
US $4.51 |
||
|
68152C
|
68152C
68152-05020
Run, Rear Door Glass, Lh
[12.1993 - 10.1997] AT19#,CT190,ST191..UKP..LB |
68152-05020 |
— | ||
|
68190
|
68190
68173-05020
Weatherstrip Assy, Rear Door Glass, Inner
[12.1993 - 04.1996] AT19#,CT190,ST191..UKP..LB RH |
68173-05020 |
— | ||
| replacement | |||||
|
68190
|
68190
68173-05040
Weatherstrip Assy, Rear Door Glass, Inner
[12.1993 - 04.1996] AT19#,CT190,ST191..UKP..LB RH |
68173-05040 |
— | ||
|
68190
|
68190
68173-05040
Weatherstrip Assy, Rear Door Glass, Inner
[04.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB RH |
68173-05040 |
— | ||
|
68190
|
68190
68174-05020
Weatherstrip Assy, Rear Door Glass, Inner
[12.1993 - 04.1996] AT19#,CT190,ST191..UKP..LB LH |
68174-05020 |
— | ||
| replacement | |||||
|
68190
|
68190
68174-05040
Weatherstrip Assy, Rear Door Glass, Inner
[12.1993 - 04.1996] AT19#,CT190,ST191..UKP..LB LH |
68174-05040 |
— | ||
|
68190
|
68190
68174-05040
Weatherstrip Assy, Rear Door Glass, Inner
[04.1996 - 10.1997] AT19#,CT190,ST191..UKP..LB LH |
68174-05040 |
— | ||
|
68211E
|
68211E
68211-20100 Clip, Door Glass Weatherstrip[12.1993 - 10.1997] AT19#,CT190,ST191..UKP..LB |
68211-20100 |
US $4.37 |
||
|
68617A
|
68617A
68617-20011 Pin(For Door Check)[05.1995 - 10.1997] AT19#,CT190,ST191..UKP |
68617-20011 |
from US $2.46 |
||
|
68618A
|
68618A
68618-20010
Bracket, Front Door Check Arm, Rh
[12.1992 - 10.1997] AT19#,CT190,ST191..UKP |
68618-20010 |
— | ||
|
68630
|
68630
68630-05010
Check Assy, Rear Door
[08.1993 - 04.1996] AT19#,CT190,ST191..UKP (L) |
68630-05010 |
— | ||
| replacement | |||||
|
68630
|
68630
68630-20091 Check Assy, Rear Door[08.1993 - 04.1996] AT19#,CT190,ST191..UKP (L) |
68630-20091 |
US $49.94 |
||
|
68630
|
68630
68630-05020 Check Assy, Rear DoorREAR DOOR [04.1996 - 10.1997] AT19#,CT190,ST191..UKP (L) |
68630-05020 |
US $49.65 |
||
| replacement | |||||
|
68630
|
68630
68630-20091 Check Assy, Rear Door[04.1996 - 10.1997] AT19#,CT190,ST191..UKP (L) |
68630-20091 |
US $49.94 |
||
|
68630
|
68630
68630-20091 Check Assy, Rear Door[04.1996 - 10.1997] AT19#,CT190,ST191..UKP (J) |
68630-20091 |
US $49.94 |
||
|
69813B
|
69813B
69813-05010
Plate, Rear Door Window Regulator Base, Rh
[08.1993 - 10.1997] AT19#,CT190,ST191..UKP (L) |
69813-05010 |
— | ||
|
69814A
|
69814A
69814-05010
Plate, Rear Door Window Regulator Base, Lh
[08.1993 - 10.1997] AT19#,CT190,ST191..UKP (L) |
69814-05010 |
— | ||
|
91651B0614
|
91651B0614
91651-B0614 BOLT WWASHER |
91651-B0614 |
US $1.60 |
||
|
9010506130
|
9010506130
90105-06130 BOLT WASHER BASED |
90105-06130 |
US $0.87 |
||
|
9010506145
|
9010506145
90105-06145 New Genuine Part |
90105-06145 |
US $0.87 |
||
|
9015140025
|
9015140025
90151-40025 New Genuine Part |
90151-40025 |
US $1.60 |
||
|
9016140020
|
9016140020
90161-40020 New Genuine Part |
90161-40020 |
US $1.60 |
||
|
9016750022
|
9016750022
90167-50022 SCREW |
90167-50022 |
US $1.12 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.05 |
||
|
9033335004
|
9033335004
90333-35004 Plate, Noise Control, No.1 |
90333-35004 |
US $1.12 |
||
|
9054109006
|
9054109006
90541-09006 Cushion, Front Door Panel |
90541-09006 |
from US $1.76 |
||
|
9095001616
|
9095001616
90950-01616 New Genuine Part |
90950-01616 |
US $5.48 |
||
|
9095901481
|
9095901481
90959-01481
New Genuine Part
|
90959-01481 |
— | ||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
