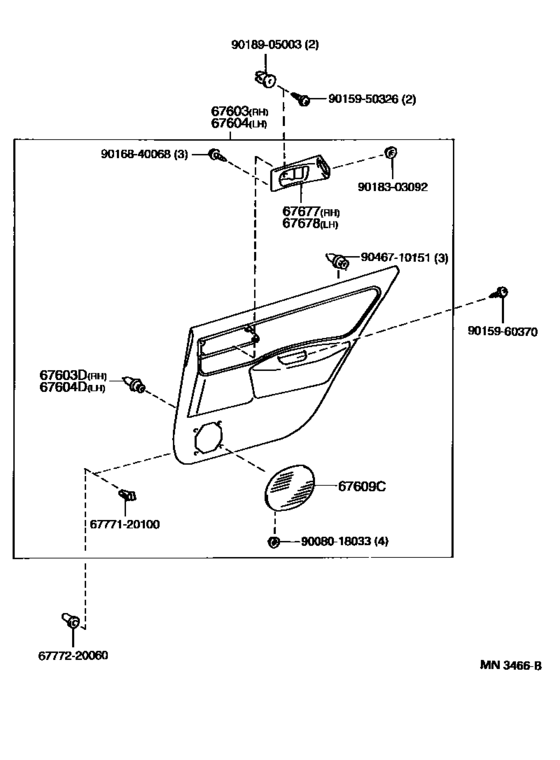

Rear Door Panel & Glass ([01.1996 - ] (9601- )UKP) Diagram Toyota CARINA
- Year
- 1996 - 1997
- Sales region
- Europe
- Frame
- AT191
- grade
- XL
- body
- LB
- ENGINE
- 7AFE
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- CARINA E (UKP)
- From
- 01.1996
- To
- 10.1997
- Vehicle Model
- Carina E
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67603
|
67603
67630-05450-B1
Board Sub-Assy, Rear Door Trim, Rh
[01.1996 - 10.1997] AT19#,CT190..UKP..LB..XL DOOR TRIM=TYPE A-*104,SHADOW GRAY,TRIM1# |
67630-05450-B1 |
— | ||
|
67603
|
67603
67630-05450-J1
Board Sub-Assy, Rear Door Trim, Rh
[01.1996 - 10.1997] AT19#,CT190..UKP..LB..XL DOOR TRIM=TYPE A-*104,DK.BLUE,TRIM8# |
67630-05450-J1 |
— | ||
|
67603
|
67603
67630-05460-B1
Board Sub-Assy, Rear Door Trim, Rh
[01.1996 - 10.1997] AT19#,CT190..UKP..LB..XL W(SPEAKER);DOOR TRIM=TYPE A-*104,SHADOW GRAY,TRIM1# |
67630-05460-B1 |
— | ||
|
67603
|
67603
67630-05460-J1
Board Sub-Assy, Rear Door Trim, Rh
[01.1996 - 10.1997] AT19#,CT190..UKP..LB..XL W(SPEAKER);DOOR TRIM=TYPE A-*104,DK.BLUE,TRIM8# |
67630-05460-J1 |
— | ||
|
67603
|
67603
67630-05490-B1
Board Sub-Assy, Rear Door Trim, Rh
[01.1996 - 10.1997] AT19#,CT190..UKP..LB..XL DOOR TRIM=TYPE A-*104;W(POWER WINDOW),SHADOW GRAY,TRIM1# |
67630-05490-B1 |
— | ||
|
67603
|
67603
67630-05490-J1
Board Sub-Assy, Rear Door Trim, Rh
[01.1996 - 10.1997] AT19#,CT190..UKP..LB..XL DOOR TRIM=TYPE A-*104;W(POWER WINDOW),DK.BLUE,TRIM8# |
67630-05490-J1 |
— | ||
|
67603
|
67603
67630-05500-B1
Board Sub-Assy, Rear Door Trim, Rh
[01.1996 - 10.1997] AT19#,CT190..UKP..LB..XL W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE A-*104,SHADOW GRAY,TRIM1# |
67630-05500-B1 |
— | ||
|
67603
|
67603
67630-05500-J1
Board Sub-Assy, Rear Door Trim, Rh
[01.1996 - 10.1997] AT19#,CT190..UKP..LB..XL W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE A-*104,DK.BLUE,TRIM8# |
67630-05500-J1 |
— | ||
|
67603
|
67603
67630-05670-B0
Board Sub-Assy, Rear Door Trim, Rh
[11.1996 - 05.1997] AT19#,CT190,ST191..UKP..LB..GL DOOR TRIM=TYPE D-*104;'97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC,SHADOW GRA Y,TRIM1#; AT19#,CT190..UKP..LB..XL DOOR TRIM=TYPE D-*104;'97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC,SHADOW GRA Y,T |
67630-05670-B0 |
— | ||
|
67603
|
67603
67630-05680-B0
Board Sub-Assy, Rear Door Trim, Rh
[11.1996 - 05.1997] AT19#,CT190,ST191..UKP..LB..GL DOOR TRIM=TYPE D-*104;'97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC & W(SPEAKE R),SHADOW GRAY,TRIM1#; AT19#,CT190..UKP..LB..XL DOOR TRIM=TYPE D-*104;'97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC & |
67630-05680-B0 |
— | ||
|
67603
|
67603
67630-05690-B0
Board Sub-Assy, Rear Door Trim, Rh
[11.1996 - 05.1997] AT19#,CT190,ST191..UKP..LB '97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC & W(P0WER WIND0W);DOOR TRIM=TYPE D-*104,SHADOW GRAY,TRIM1# |
67630-05690-B0 |
— | ||
|
67603
|
67603
67630-05700-B0
Board Sub-Assy, Rear Door Trim, Rh
[11.1996 - 05.1997] AT19#,CT190,ST191..UKP..LB..GL DOOR TRIM=TYPE D-*104;'97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC & W(POWER WINDOW & SPEAKER),SHADOW GRAY,TRIM1#; AT19#,CT190..UKP..LB..XL DOOR TRIM=TYPE D-*104;'97 SPRING CAMPAIGN 0R '97 AUTUMN CAM |
67630-05700-B0 |
— | ||
|
67603
|
67603
67630-05850-B0
Board Sub-Assy, Rear Door Trim, Rh
[05.1997 - 10.1997] AT19#,CT190,ST191..UKP..LB..GL DOOR TRIM=TYPE E-*104;'97 AUTUMN CAMPAIGN FABRIC,SHADOW GRAY,TRIM1#; AT19#,CT190..UKP..LB..XL DOOR TRIM=TYPE E-*104;'97 AUTUMN CAMPAIGN FABRIC,SHADOW GRAY,TRIM1# |
67630-05850-B0 |
— | ||
|
67603
|
67603
67630-05860-B0
Board Sub-Assy, Rear Door Trim, Rh
[05.1997 - 10.1997] AT19#,CT190,ST191..UKP..LB..GL '97 AUTUMN CAMPAIGN FABRIC & W(SPEAKER);DOOR TRIM=TYPE E-*104,SHADOW GRAY,TRIM1#; AT19#,CT190..UKP..LB..XL '97 AUTUMN CAMPAIGN FABRIC & W(SPEAKER);DOOR TRIM=TYPE E-*104,SHADOW GRAY,TRIM1# |
67630-05860-B0 |
— | ||
|
67603
|
67603
67630-05870-B0
Board Sub-Assy, Rear Door Trim, Rh
[05.1997 - 10.1997] AT19#,CT190,ST191..UKP..LB DOOR TRIM=TYPE E-*104;'97 AUTUMN CAMPAIGN FABRIC & W(POWER WINDOW),SHADOW GRAY,TRI M1# |
67630-05870-B0 |
— | ||
|
67603
|
67603
67630-05880-B0
Board Sub-Assy, Rear Door Trim, Rh
[05.1997 - 10.1997] AT19#,CT190,ST191..UKP..LB..GL DOOR TRIM=TYPE E-*104;'97 AUTUMN CAMPAIGN FABRIC & W(POWER WINDOW & SPEAKER),SHADO W GRAY,TRIM1#; AT19#,CT190..UKP..LB..XL DOOR TRIM=TYPE E-*104;'97 AUTUMN CAMPAIGN FABRIC & W(POWER WINDOW & SPEAKER),SHAD |
67630-05880-B0 |
— | ||
|
67603D
|
67603D
67771-20110 Retainer(For Front Door Trim Board)[01.1996 - 10.1997] AT19#,CT190,ST191..UKP |
67771-20110 |
US $2.88 |
||
|
67604
|
67604
67640-05450-B1
Board Sub-Assy, Rear Door Trim, Lh
[01.1996 - 10.1997] AT19#,CT190..UKP..LB..XL DOOR TRIM=TYPE A-*104,SHADOW GRAY,TRIM1# |
67640-05450-B1 |
— | ||
|
67604
|
67604
67640-05450-J1
Board Sub-Assy, Rear Door Trim, Lh
[01.1996 - 10.1997] AT19#,CT190..UKP..LB..XL DOOR TRIM=TYPE A-*104,DK.BLUE,TRIM8# |
67640-05450-J1 |
— | ||
|
67604
|
67604
67640-05460-B1
Board Sub-Assy, Rear Door Trim, Lh
[01.1996 - 10.1997] AT19#,CT190..UKP..LB..XL W(SPEAKER);DOOR TRIM=TYPE A-*104,SHADOW GRAY,TRIM1# |
67640-05460-B1 |
— | ||
|
67604
|
67604
67640-05460-J1
Board Sub-Assy, Rear Door Trim, Lh
[01.1996 - 10.1997] AT19#,CT190..UKP..LB..XL W(SPEAKER);DOOR TRIM=TYPE A-*104,DK.BLUE,TRIM8# |
67640-05460-J1 |
— | ||
|
67604
|
67604
67640-05490-B1
Board Sub-Assy, Rear Door Trim, Lh
[01.1996 - 10.1997] AT19#,CT190..UKP..LB..XL DOOR TRIM=TYPE A-*104;W(POWER WINDOW),SHADOW GRAY,TRIM1# |
67640-05490-B1 |
— | ||
|
67604
|
67604
67640-05490-J1
Board Sub-Assy, Rear Door Trim, Lh
[01.1996 - 10.1997] AT19#,CT190..UKP..LB..XL DOOR TRIM=TYPE A-*104;W(POWER WINDOW),DK.BLUE,TRIM8# |
67640-05490-J1 |
— | ||
|
67604
|
67604
67640-05500-B1
Board Sub-Assy, Rear Door Trim, Lh
[01.1996 - 10.1997] AT19#,CT190..UKP..LB..XL W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE A-*104,SHADOW GRAY,TRIM1# |
67640-05500-B1 |
— | ||
|
67604
|
67604
67640-05500-J1
Board Sub-Assy, Rear Door Trim, Lh
[01.1996 - 10.1997] AT19#,CT190..UKP..LB..XL W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE A-*104,DK.BLUE,TRIM8# |
67640-05500-J1 |
— | ||
|
67604
|
67604
67640-05670-B0
Board Sub-Assy, Rear Door Trim, Lh
[11.1996 - 05.1997] AT19#,CT190,ST191..UKP..LB..GL DOOR TRIM=TYPE D-*104;'97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC,SHADOW GRA Y,TRIM1#; AT19#,CT190..UKP..LB..XL DOOR TRIM=TYPE D-*104;'97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC,SHADOW GRA Y,T |
67640-05670-B0 |
— | ||
|
67604
|
67604
67640-05680-B0
Board Sub-Assy, Rear Door Trim, Lh
[11.1996 - 05.1997] AT19#,CT190,ST191..UKP..LB..GL DOOR TRIM=TYPE D-*104;'97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC & W(SPEAKE R),SHADOW GRAY,TRIM1#; AT19#,CT190..UKP..LB..XL DOOR TRIM=TYPE D-*104;'97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC & |
67640-05680-B0 |
— | ||
|
67604
|
67604
67640-05690-B0
Board Sub-Assy, Rear Door Trim, Lh
[11.1996 - 05.1997] AT19#,CT190,ST191..UKP..LB '97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC & W(P0WER WIND0W);DOOR TRIM=TYPE D-*104,SHADOW GRAY,TRIM1# |
67640-05690-B0 |
— | ||
|
67604
|
67604
67640-05700-B0
Board Sub-Assy, Rear Door Trim, Lh
[11.1996 - 05.1997] AT19#,CT190,ST191..UKP..LB..GL DOOR TRIM=TYPE D-*104;'97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC & W(POWER WINDOW & SPEAKER),SHADOW GRAY,TRIM1#; AT19#,CT190..UKP..LB..XL DOOR TRIM=TYPE D-*104;'97 SPRING CAMPAIGN 0R '97 AUTUMN CAM |
67640-05700-B0 |
— | ||
|
67604
|
67604
67640-05850-B0
Board Sub-Assy, Rear Door Trim, Lh
[05.1997 - 10.1997] AT19#,CT190,ST191..UKP..LB..GL DOOR TRIM=TYPE E-*104;'97 AUTUMN CAMPAIGN FABRIC,SHADOW GRAY,TRIM1#; AT19#,CT190..UKP..LB..XL DOOR TRIM=TYPE E-*104;'97 AUTUMN CAMPAIGN FABRIC,SHADOW GRAY,TRIM1# |
67640-05850-B0 |
— | ||
|
67604
|
67604
67640-05860-B0
Board Sub-Assy, Rear Door Trim, Lh
[05.1997 - 10.1997] AT19#,CT190,ST191..UKP..LB..GL '97 AUTUMN CAMPAIGN FABRIC & W(SPEAKER);DOOR TRIM=TYPE E-*104,SHADOW GRAY,TRIM1#; AT19#,CT190..UKP..LB..XL '97 AUTUMN CAMPAIGN FABRIC & W(SPEAKER);DOOR TRIM=TYPE E-*104,SHADOW GRAY,TRIM1# |
67640-05860-B0 |
— | ||
|
67604
|
67604
67640-05870-B0
Board Sub-Assy, Rear Door Trim, Lh
[05.1997 - 10.1997] AT19#,CT190,ST191..UKP..LB DOOR TRIM=TYPE E-*104;'97 AUTUMN CAMPAIGN FABRIC & W(POWER WINDOW),SHADOW GRAY,TRI M1# |
67640-05870-B0 |
— | ||
|
67604
|
67604
67640-05880-B0
Board Sub-Assy, Rear Door Trim, Lh
[05.1997 - 10.1997] AT19#,CT190,ST191..UKP..LB..GL DOOR TRIM=TYPE E-*104;'97 AUTUMN CAMPAIGN FABRIC & W(POWER WINDOW & SPEAKER),SHADO W GRAY,TRIM1#; AT19#,CT190..UKP..LB..XL DOOR TRIM=TYPE E-*104;'97 AUTUMN CAMPAIGN FABRIC & W(POWER WINDOW & SPEAKER),SHAD |
67640-05880-B0 |
— | ||
|
67604D
|
67604D
67771-20110 Retainer(For Front Door Trim Board)[01.1996 - 10.1997] AT19#,CT190,ST191..UKP |
67771-20110 |
US $2.88 |
||
|
67609C
|
67609C
67653-05020-B0
Grille Sub-Assy, Rear Door Speaker
[01.1996 - 11.1996] AT191,CT190..UKP;AT190,ST191..UKP..RHD;AT190..UKP..LHD..SED..XL;AT190,ST191..UKP.. LHD..(LB,WG) SHADOW GRAY,TRIM1# |
67653-05020-B0 |
— | ||
|
67609C
|
67609C
67653-05020-J0
Grille Sub-Assy, Rear Door Speaker
[01.1996 - 11.1996] AT191,CT190..UKP;AT190,ST191..UKP..RHD;AT190..UKP..LHD..SED..XL;AT190,ST191..UKP.. LHD..(LB,WG) DK. BLUE,TRIM8# |
67653-05020-J0 |
— | ||
|
67677
|
67677
67677-05020-B0 Cover, Side Trim Board, Rear RhSIDE TRIM BOARD, REAR RH [01.1996 - 10.1997] AT19#,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
67677-05020-B0 |
US $25.48 |
||
|
67677
|
67677
67677-05020-J0 Cover, Side Trim Board, Rear RhSIDE TRIM BOARD, REAR RH [01.1996 - 10.1997] AT19#,CT190,ST191..UKP DK.BLUE,TRIM8# |
67677-05020-J0 |
US $25.48 |
||
|
67678
|
67678
67678-05020-B0 Cover, Side Trim Board, Rear LhSIDE TRIM BOARD, REAR LH [01.1996 - 10.1997] AT19#,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
67678-05020-B0 |
US $25.48 |
||
|
67678
|
67678
67678-05020-J0 Cover, Side Trim Board, Rear LhSIDE TRIM BOARD, REAR LH [01.1996 - 10.1997] AT19#,CT190,ST191..UKP DK.BLUE,TRIM8# |
67678-05020-J0 |
US $25.48 |
||
|
6777120100
|
6777120100
67771-20100 Weatherstrip, Back Door Trim, Rh |
67771-20100 |
US $1.60 |
||
|
6777220060
|
6777220060
67772-20060 Weatherstrip, Back Door Trim, Lh |
67772-20060 |
US $3.06 |
||
|
9008018033
|
9008018033
90080-18033
New Genuine Part
|
90080-18033 |
— | ||
|
9015950326
|
9015950326
90159-50326
Screw
|
90159-50326 |
— | ||
| replacement | |||||
|
9015950326
|
9015950326
93540-16025 SCREW |
93540-16025 |
from US $0.88 |
||
|
9015960370
|
9015960370
90159-60370 SCREW WWASHER |
90159-60370 |
US $1.12 |
||
|
9016840068
|
9016840068
90168-40068 SCREW |
90168-40068 |
from US $1.92 |
||
|
9018303092
|
9018303092
90183-03092 New Genuine Part |
90183-03092 |
US $2.08 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.15 |
||
|
9046710151
|
9046710151
90467-10151 Clip(For Back Door Trim) |
90467-10151 |
US $1.93 |
||
