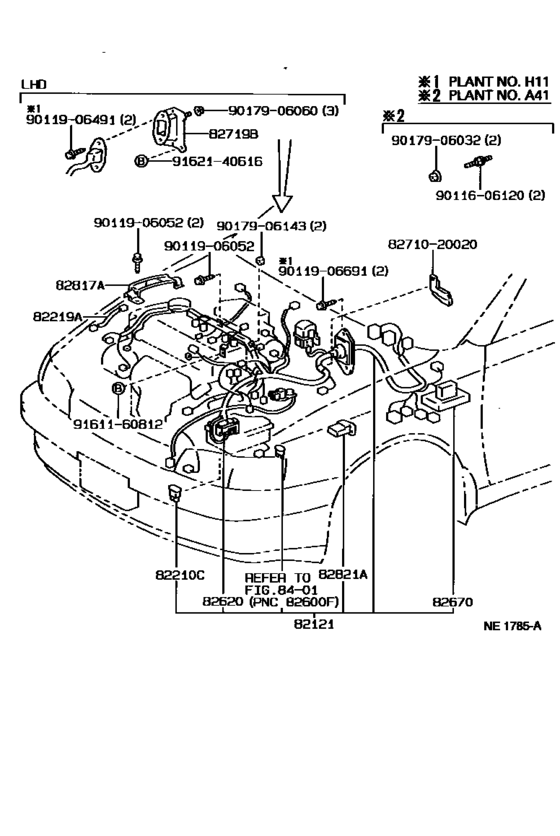

Wiring & Clamp ([02.1992 - ] ENGINE WIRE (9202- )AT19#..UKP) Diagram Toyota CARINA
- Year
- 1996 - 1997
- Sales region
- Europe
- Frame
- AT191
- grade
- XL
- body
- LB
- ENGINE
- 7AFE
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- CARINA E (UKP)
- From
- 01.1996
- To
- 10.1997
- Vehicle Model
- Carina E
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82121
|
82121
82121-05190 Wire, EngineENGINE [01.1996 - 10.1997] AT190..UKP..LHD..WG;AT191..UKP..LHD..MTM; AT190..UKP..LHD..(LB,SED) 4AFE LEAN BURN ENGINE |
82121-05190 |
US $1,247.79 |
||
|
82210C
|
82210C
90982-08189 Fusible Link[12.1992 - 10.1997] ST191..UKP..LHD;AT19#,CT190..UKP 40A,TERMINAL:FEMALE |
90982-08189 |
US $7.04 |
||
|
82210C
|
82210C
90982-08227 Fusible Link[12.1992 - 10.1997] AT19#,CT190,ST191..UKP 50A,TERMINAL:FEMALE |
90982-08227 |
from US $7.04 |
||
|
82210C
|
82210C
90982-08270 Fusible Link[12.1992 - 10.1997] AT19#..UKP 100A,TERMINAL:MALE |
90982-08270 |
US $8.91 |
||
|
82620
|
82620
82620-05010
Block Assy, Fusible Link
[11.1996 - 10.1997] AT19#,CT190..UKP |
82620-05010 |
— | ||
|
82620
|
82620
82620-20160 Block Assy, Fusible Link[12.1992 - 11.1996] AT19#,CT190,ST191..UKP |
82620-20160 |
US $51.25 |
||
|
82670
|
82670
82670-14010 Block Assy, Junction, No.1JUNCTION, NO.1 [12.1992 - 10.1997] AT19#..UKP |
82670-14010 |
US $11.65 |
||
|
82817A
|
82817A
82817-1A070 Protector, Wiring Harness, No.1[01.1996 - 10.1997] AT19#..UKP |
82817-1A070 |
from US $12.40 |
||
|
82821A
|
82821A
82821-32110 Cover, Connector[01.1996 - 10.1997] AT19#..UKP |
82821-32110 |
US $8.30 |
||
|
8271020020
|
8271020020
82710-20020 Harness Assy, Oil Heater |
82710-20020 |
US $6.41 |
||
|
9011606120
|
9011606120
90116-06120 Bolt, Stud(For Air Cleaner Setting) |
90116-06120 |
US $2.33 |
||
|
9011906052
|
9011906052
90119-06052 New Genuine Part |
90119-06052 |
US $1.92 |
||
|
9011906491
|
9011906491
90119-06491 New Genuine Part |
90119-06491 |
US $1.75 |
||
|
9011906691
|
9011906691
90119-06691 BOLT WWASHER |
90119-06691 |
US $1.12 |
||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.72 |
||
|
9017906060
|
9017906060
90179-06060 Nut, Wing(For Air Cleaner) |
90179-06060 |
US $2.08 |
||
|
9017906143
|
9017906143
90179-06143 NUT |
90179-06143 |
from US $0.82 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9162140616
|
9162140616
91621-40616 Step Cover Bolt |
91621-40616 |
US $1.28 |
||
