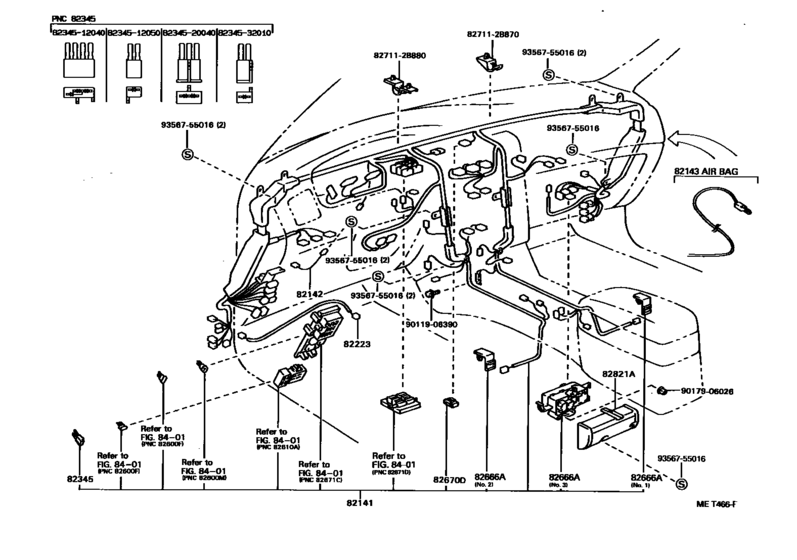

Wiring & Clamp ([02.1992 - ] INSTRUMENT PANEL WIRE (9202- )UKP..LHD) Diagram Toyota CARINA
- Year
- 1996 - 1997
- Sales region
- Europe
- Frame
- AT191
- grade
- XL
- body
- LB
- ENGINE
- 7AFE
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- CARINA E (UKP)
- From
- 01.1996
- To
- 10.1997
- Vehicle Model
- Carina E
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82141
|
82141
82141-05430 Wire, Instrument PanelINSTRUMENT PANEL [01.1996 - 10.1997] AT19#,CT190..UKP..LHD..MTM..XL |
82141-05430 |
US $2,169.44 |
||
|
82141
|
82141
82141-05440 Wire, Instrument PanelINSTRUMENT PANEL [01.1996 - 10.1997] AT19#,CT190..UKP..LHD..MTM..XL W(SEAT HEATER) OR W(*66) OR W(*PW) |
82141-05440 |
US $2,169.44 |
||
|
82141
|
82141
82141-05450 Wire, Instrument PanelINSTRUMENT PANEL [01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LHD..MTM..GL; CT190..UKP..LHD..XL W(TACHOMETER) OR W(*PW & TACHOMETER); AT19#..UKP..LHD..MTM..XL W(TACHOMETER) OR W(*PW & TACHOMETER) |
82141-05450 |
US $2,169.44 |
||
|
82141
|
82141
82141-05460 Wire, Instrument PanelINSTRUMENT PANEL [01.1996 - 10.1997] CT190..UKP..LHD..XL W(*66 & *PW & TACHOMETER) OR W(*PW & TACHOMETER & SEAT HEATER); AT19#..UKP..LHD..MTM..XL W(*66 & *PW & TACHOMETER) OR W(*PW & TACHOMETER & SEAT HEATER); AT19#,CT190,ST191..UKP..LHD..MTM..GL W(SEAT HEATER) OR W(*66) |
82141-05460 |
US $2,169.44 |
||
|
82141
|
82141
82141-05490 Wire, Instrument PanelINSTRUMENT PANEL [01.1996 - 10.1997] AT19#,CT190..UKP..LHD..MTM..XL W(*DRL) |
82141-05490 |
US $2,169.44 |
||
|
82141
|
82141
82141-05510 Wire, Instrument PanelINSTRUMENT PANEL [01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LHD..MTM..GL W(*DRL); CT190..UKP..LHD..XL W(*DRL & TACHOMETER); AT19#..UKP..LHD..MTM..XL W(*DRL & TACHOMETER) |
82141-05510 |
US $2,169.44 |
||
|
82143
|
82143
82143-05010
Wire, Instrument Panel, No.3
[01.1996 - 10.1997] AT19#,CT190,ST191..UKP |
82143-05010 |
— | ||
|
82345
|
82345
82345-12040 Diode[01.1996 - 10.1997] AT19#,CT190,ST191..UKP; ST191..UKP..LHD..SED..ATM |
82345-12040 |
US $19.66 |
||
|
82345
|
82345
82345-12050 Diode[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LHD |
82345-12050 |
US $12.64 |
||
|
82345
|
82345
82345-32010 Diode[01.1996 - 10.1997] AT19#,CT190,ST191..UKP; ST191..UKP..LHD..SED..ATM |
82345-32010 |
US $12.06 |
||
|
82666A
|
82666A
82666-20170 Holder, Connector No.2CONNECTOR NO.2 [01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LHD |
82666-20170 |
US $28.10 |
||
|
82821A
|
82821A
82821-32110 Cover, Connector[01.1996 - 10.1997] AT19#..UKP |
82821-32110 |
US $8.30 |
||
|
827112B870
|
827112B870
82711-2B870 Wire, Fuse To Fuse(for Combustion Heater) |
82711-2B870 |
US $7.72 |
||
|
827112B880
|
827112B880
82711-2B880
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-2B880 |
— | ||
|
8234512040
|
8234512040
82345-12040 Diode |
82345-12040 |
US $19.66 |
||
|
8234512050
|
8234512050
82345-12050 Diode |
82345-12050 |
US $12.64 |
||
|
8234520040
|
8234520040
82345-20040 Diode |
82345-20040 |
US $12.06 |
||
|
8234532010
|
8234532010
82345-32010 Diode |
82345-32010 |
US $12.06 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.12 |
||
|
9017906026
|
9017906026
90179-06026
Nut, Cap(For Cylinder Head Cover)
|
90179-06026 |
— | ||
| replacement | |||||
|
9017906026
|
9017906026
90179-06274 Nut |
90179-06274 |
from US $0.72 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $1.12 |
||
