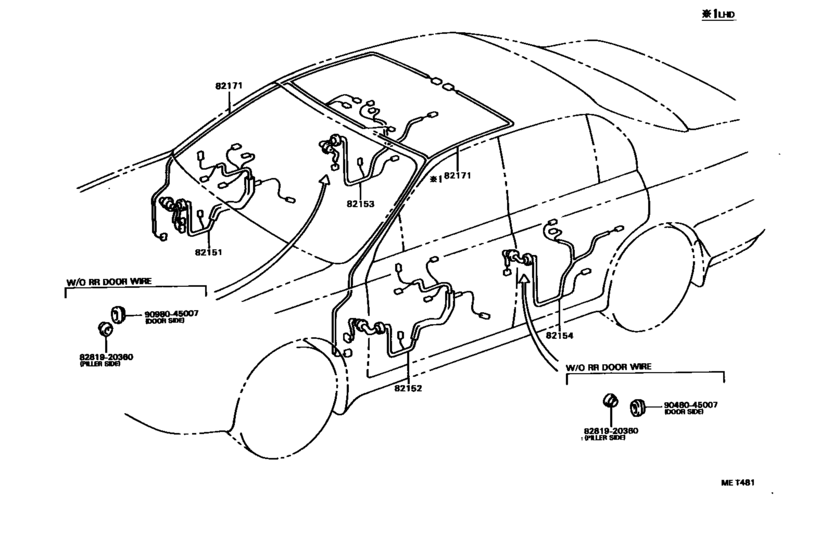

Wiring & Clamp ([02.1992 - ] DOOR,ROOF WIRE (9202- )UKP..LB,SED) Diagram Toyota CARINA
- Year
- 1996 - 1997
- Sales region
- Europe
- Frame
- AT191
- grade
- XL
- body
- LB
- ENGINE
- 7AFE
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- CARINA E (UKP)
- From
- 01.1996
- To
- 10.1997
- Vehicle Model
- Carina E
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82151
|
82151
82151-05240 Wire, Front Door, RhFRONT DOOR, RH [01.1996 - 10.1997] AT19#,CT190..UKP..LHD..XL |
82151-05240 |
US $67.12 |
||
|
82151
|
82151
82151-05250 Wire, Front Door, RhFRONT DOOR, RH [01.1996 - 10.1997] AT19#,CT190..UKP..LHD..XL W(ELECTRIC REMOTE CONTROL MIRROR) |
82151-05250 |
US $117.94 |
||
|
82151
|
82151
82151-05270 Wire, Front Door, RhFRONT DOOR, RH [01.1996 - 10.1997] AT19#,CT190..UKP..LHD..XL W(POWER WINDOW) |
82151-05270 |
US $138.32 |
||
|
82151
|
82151
82151-05280 Wire, Front Door, RhFRONT DOOR, RH [01.1996 - 12.1996] AT19#,CT190..UKP..LHD..XL W(*PW) & W(ELECTRIC REMOTE CONTROL MIRROR) |
82151-05280 |
US $138.32 |
||
|
82152
|
82152
82152-05240 Wire, Front Door, LhFRONT DOOR, LH [01.1996 - 10.1997] AT19#,CT190..UKP..LHD..XL |
82152-05240 |
US $117.94 |
||
|
82152
|
82152
82152-05250 Wire, Front Door, LhFRONT DOOR, LH [01.1996 - 10.1997] AT19#,CT190..UKP..LHD..XL W(ELECTRIC REMOTE CONTROL MIRROR) |
82152-05250 |
US $117.94 |
||
|
82152
|
82152
82152-05270 Wire, Front Door, LhFRONT DOOR, LH [01.1996 - 10.1997] AT19#,CT190..UKP..LHD..XL W(POWER WINDOW) |
82152-05270 |
US $160.16 |
||
|
82152
|
82152
82152-05280 Wire, Front Door, LhFRONT DOOR, LH [01.1996 - 12.1996] AT19#,CT190..UKP..LHD..XL W(POWER WINDOW & HEATER MIRROR) |
82152-05280 |
US $199.47 |
||
|
82153
|
82153
82153-05040 Wire, Rear Door, No.1REAR DOOR, NO.1 [01.1996 - 10.1997] AT19#,CT190,ST191..UKP |
82153-05040 |
US $35.24 |
||
|
82153
|
82153
82153-05050 Wire, Rear Door, No.1REAR DOOR, NO.1 [01.1996 - 10.1997] AT19#,CT190..UKP..XL 4 SPEAKER; AT19#,CT190,ST191..UKP..GL 4 SPEAKER OR 6 SPEAKER |
82153-05050 |
US $52.42 |
||
|
82153
|
82153
82153-05060 Wire, Rear Door, No.1REAR DOOR, NO.1 [01.1996 - 10.1997] AT19#,CT190,ST191..UKP W(POWER WINDOW) |
82153-05060 |
US $117.94 |
||
|
82154
|
82154
82154-05040 Wire, Rear Door, No.2REAR DOOR, NO.2 [01.1996 - 10.1997] AT19#,CT190,ST191..UKP |
82154-05040 |
US $35.24 |
||
|
82154
|
82154
82154-05050 Wire, Rear Door, No.2REAR DOOR, NO.2 [01.1996 - 10.1997] AT19#,CT190..UKP..XL 4 SPEAKER; AT19#,CT190,ST191..UKP..GL 4 SPEAKER OR 6 SPEAKER |
82154-05050 |
US $52.42 |
||
|
82154
|
82154
82154-05060 Wire, Rear Door, No.2REAR DOOR, NO.2 [01.1996 - 10.1997] AT19#,CT190,ST191..UKP W(POWER WINDOW) |
82154-05060 |
US $117.94 |
||
|
82171
|
82171
82171-05100 Wire, Roof, No.1ROOF, NO.1 [01.1996 - 10.1997] AT19#,CT190..UKP..LHD..XL |
82171-05100 |
US $41.06 |
||
|
82171
|
82171
82171-05110 Wire, Roof, No.1ROOF, NO.1 [01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LHD..GL; AT19#,CT190..UKP..LHD..XL W(FRONT SPOT LAMP) |
82171-05110 |
US $52.42 |
||
|
82171
|
82171
82171-05120 Wire, Roof, No.1ROOF, NO.1 [01.1996 - 10.1997] AT19#,CT190,ST191..UKP..LHD W(MOON ROOF) |
82171-05120 |
US $117.94 |
||
|
8281920360
|
8281920360
82819-20360 Grommet, Wiring Harness |
82819-20360 |
US $8.30 |
||
|
9048045007
|
9048045007
90480-45007 New Genuine Part |
90480-45007 |
US $4.22 |
||
|
9098045007
|
9098045007
90980-45007
New Genuine Part
|
90980-45007 |
— |
