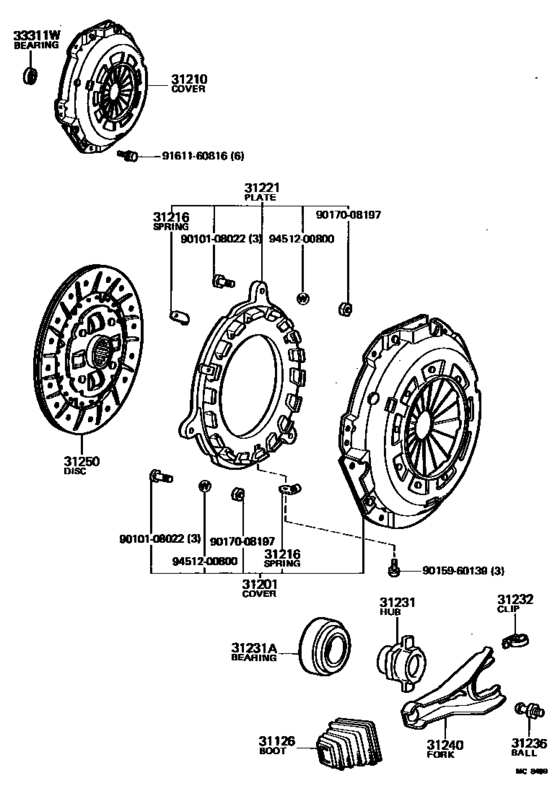

Clutch & Release Fork ([04.1982 - ] (8204- )CA60) Diagram Toyota CARINA
- Year
- 1982 - 1983
- Sales region
- Europe
- Frame
- CA60
- grade
- DLX
- body
- SED
- ENGINE
- 1C
- TRANSMISSION
- MTM
- Model
- CARINA
- From
- 04.1982
- To
- 09.1983
- Gear Shift Type
- 5F
- Vehicle Model
- Carina
- Driver's Position
- RHD
- Destination
- EUR
- Destination 2
- EUG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-20070 Boot, Clutch Release Fork[08.1981 - 09.1983] CA60,TA6#..MTM |
31126-20070 |
from US $13.81 |
||
|
31201
|
31201
31201-39047 Cover Sub-Assy, Clutch[04.1982 - 09.1983] CA60 |
31201-39047 |
US $214.03 |
||
|
31210
|
31210
31210-35042 Cover Assy, Clutch[04.1982 - 09.1983] CA60 |
31210-35042 |
US $180.54 |
||
| replacement | |||||
|
31210
|
31210
31210-22121 Cover Assy, Clutch[04.1982 - 09.1983] CA60 |
31210-22121 |
from US $162.26 |
||
|
31216
|
31216
31216-30010
Spring, Clutch Retracting
[04.1982 - 09.1983] CA60 |
31216-30010 |
— | ||
|
31221
|
31221
31221-39045 Plate, Clutch Pressure[04.1982 - 09.1983] CA60 |
31221-39045 |
US $68.43 |
||
| replacement | |||||
|
31221
|
31221
31221-35020 Plate, Clutch Pressure[04.1982 - 09.1983] CA60 |
31221-35020 |
US $65.96 |
||
|
31231
|
31231
31231-36070 Hub, Clutch Release Bearing[04.1982 - 09.1983] CA60 |
31231-36070 |
from US $26.60 |
||
|
31231A
|
31231A
90363-40022 Bearing, Ball(For Clutch Release Hub)[08.1981 - 09.1983] CA60,TA6#..MTM |
90363-40022 |
from US $41.80 |
||
|
31232
|
31232
31232-22010 Clip Or Spring, Release Bearing Hub[08.1981 - 09.1983] CA60,TA6#..MTM |
31232-22010 |
from US $0.82 |
||
|
31236
|
31236
31236-30060 Ball, Release Fork[08.1981 - 09.1983] CA60,TA6#..MTM |
31236-30060 |
from US $10.24 |
||
|
31240
|
31240
31204-20090 Fork Sub-Assy, Clutch Release[04.1982 - 09.1983] CA60 |
31204-20090 |
US $34.35 |
||
|
31250
|
31250
31250-20111 Disc Assy, Clutch[04.1982 - 09.1983] CA60 |
31250-20111 |
US $138.32 |
||
| replacement | |||||
|
31250
|
31250
31250-28191 Disc Assy, Clutch[04.1982 - 09.1983] CA60 |
31250-28191 |
US $206.75 |
||
|
33311W
|
33311W
90363-12004 Bearing (For Input Shaft)[04.1982 - 09.1983] CA60 |
90363-12004 |
from US $13.44 |
||
|
9010108022
|
9010108022
90101-08022
Bolt, Clutch Pressure Plate
|
90101-08022 |
— | ||
|
9015960139
|
9015960139
90159-60139
New Genuine Part
|
90159-60139 |
— | ||
|
9017008197
|
9017008197
90170-08197
New Genuine Part
|
90170-08197 |
— | ||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.03 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
