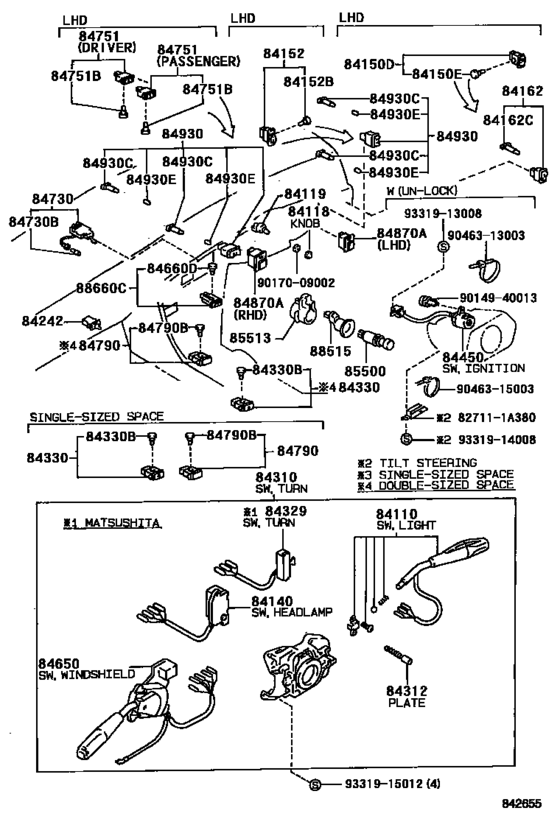

Switch & Relay & Computer ([11.1989 - ] (8911- )) Diagram Toyota CARINA
- Year
- 1990 - 1992
- Sales region
- Europe
- Frame
- CT170
- grade
- XL
- body
- LB
- ENGINE
- 2C
- TRANSMISSION
- MTM
- DESTINATION
- G
- Model
- CARINA 2
- From
- 08.1990
- To
- 03.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Carina 2
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84110
|
84110
84112-80035 Switch Assy, Light Control, No.1[11.1989 - 11.1992] CT170..RHD..LB;AT171..RHD..LB..XL;AT171,ST171..RHD..(LB,WG)..GL TOKAIRIKA; AT171,CT170..RHD..WG..XL W(*RW) OR W(*VIW),TOKAIRIKA |
84112-80035 |
US $69.60 |
||
|
84118
|
84118
84118-20011-01 Knob, Light Control Rheostat[12.1989 - 08.1992] AT171,CT170..WG BLACK,TRIM1#,8#; AT171,CT170,ST171..LB,SED BLACK,TRIM1#,4#,8# |
84118-20011-01 |
US $13.69 |
||
| replacement | |||||
|
84118
|
84118
84118-20011 Knob, Light Control Rheostat[12.1989 - 08.1992] AT171,CT170..WG BLACK,TRIM1#,8#; AT171,CT170,ST171..LB,SED BLACK,TRIM1#,4#,8# |
84118-20011 |
US $13.80 |
||
|
84119
|
84119
84119-20082 Rheostat, Light Control[12.1987 - 11.1992] AT171,CT170,ST171 |
84119-20082 |
US $81.54 |
||
|
84140
|
84140
84140-12220 Switch Assy, Headlamp Dimmer[11.1989 - 11.1992] CT170..RHD..LB;AT171..RHD..LB..XL;AT171,ST171..RHD..(LB,WG)..GL; AT171,CT170..RHD..WG..XL W(*RW) |
84140-12220 |
US $77.17 |
||
|
84140
|
84140
84140-12240 Switch Assy, Headlamp Dimmer[11.1989 - 11.1992] AT171..RHD..WG..XL;CT170..RHD..(SED,WG);AT171,ST171..RHD..SED W(*VIW),TOKAIRIKA; CT170..RHD..LB;AT171..RHD..LB..XL;AT171,ST171..RHD..(LB,WG)..GL W(*VIW); AT171,CT170..RHD..WG..XL W(*VIW) OR W(*RW) |
84140-12240 |
US $77.17 |
||
| replacement | |||||
|
84140
|
84140
84140-20410
Switch Assy, Headlamp Dimmer
[11.1989 - 11.1992] AT171..RHD..WG..XL;CT170..RHD..(SED,WG);AT171,ST171..RHD..SED W(*VIW),TOKAIRIKA; CT170..RHD..LB;AT171..RHD..LB..XL;AT171,ST171..RHD..(LB,WG)..GL W(*VIW); AT171,CT170..RHD..WG..XL W(*VIW) OR W(*RW) |
84140-20410 |
— | ||
|
84150D
|
84150D
84150-20020 Switch Assy, Headlamp CleanerHEADLAMP CLEANER [10.1990 - 11.1992] AT171,CT170,ST171 |
84150-20020 |
US $54.16 |
||
|
84162C
|
84162C
84999-10130 Bulb, Fog Lamp Switch[12.1987 - 11.1992] AT171,CT170,ST171 12V 0.56W |
84999-10130 |
US $5.68 |
||
|
84310
|
84310
84310-2G450 Switch Assy, Turn SignalTURN SIGNAL [11.1989 - 11.1992] CT170..RHD..LB;AT171..RHD..LB..XL;AT171,ST171..RHD..(LB,WG)..GL; AT171,CT170..RHD..WG..XL W(*RW) |
84310-2G450 |
US $275.18 |
||
| replacement | |||||
|
84310
|
84310
84310-2G430 Switch Assy, Turn Signal[11.1989 - 11.1992] CT170..RHD..LB;AT171..RHD..LB..XL;AT171,ST171..RHD..(LB,WG)..GL; AT171,CT170..RHD..WG..XL W(*RW) |
84310-2G430 |
US $279.55 |
||
|
84310
|
84310
84310-2G460 Switch Assy, Turn Signal[11.1989 - 11.1992] CT170..RHD..LB;AT171..RHD..LB..XL;AT171,ST171..RHD..(LB,WG)..GL W(*VIW); AT171,CT170..RHD..WG..XL W(*VIW) OR W(*RW) |
84310-2G460 |
US $308.67 |
||
|
84312
|
84312
84312-12040 Plate, Horn Contact[11.1989 - 11.1992] AT171..LB..XL;CT170,ST171..LB;AT171..(LB,WG)..GL; AT171,CT170..WG..XL W(*RW); AT171..RHD..WG..XL;CT170..RHD..(SED,WG);AT171,ST171..RHD..SED W(*VIW),TOKAIRIKA |
84312-12040 |
from US $6.51 |
||
|
84330
|
84330
84332-20260
Switch Assy, Hazard Warning Signal
[11.1989 - 11.1992] AT171,CT170,ST171 |
84332-20260 |
— | ||
| replacement | |||||
|
84330
|
84330
84332-42010 Switch Assy, Hazard Warning Signal[11.1989 - 11.1992] AT171,CT170,ST171 |
84332-42010 |
from US $62.79 |
||
|
84450
|
84450
84450-20220
Switch Assy, Ignition Or Starter
[11.1989 - 11.1992] AT171,CT170,ST171 |
84450-20220 |
— | ||
| replacement | |||||
|
84450
|
84450
84450-26050 Switch Assy, Ignition Or Starter[11.1989 - 11.1992] AT171,CT170,ST171 |
84450-26050 |
US $69.89 |
||
|
84450
|
84450
84450-20230 Switch Assy, Ignition Or Starter[11.1989 - 11.1992] AT171,CT170,ST171 W(*EL) |
84450-20230 |
US $75.71 |
||
|
84650
|
84650
84652-2D380 Switch Assy, Windshield WiperWINDSHIELD WIPER [11.1989 - 11.1992] CT170..RHD..LB;AT171..RHD..LB..XL;AT171,ST171..RHD..(LB,WG)..GL; AT171,CT170..RHD..WG..XL W(*RW) |
84652-2D380 |
US $133.95 |
||
|
84650
|
84650
84652-2D390 Switch Assy, Windshield Wiper[11.1989 - 11.1992] CT170..RHD..LB;AT171..RHD..LB..XL;AT171,ST171..RHD..(LB,WG)..GL W(*VIW); AT171,CT170..RHD..WG..XL W(*VIW) OR W(*RW) |
84652-2D390 |
US $163.07 |
||
| replacement | |||||
|
84650
|
84650
84652-24180 Switch Assy, Windshield Wiper[11.1989 - 11.1992] CT170..RHD..LB;AT171..RHD..LB..XL;AT171,ST171..RHD..(LB,WG)..GL W(*VIW); AT171,CT170..RHD..WG..XL W(*VIW) OR W(*RW) |
84652-24180 |
US $152.88 |
||
|
84730
|
84730
84732-20210
Switch Assy, Heater Blower
[12.1987 - 11.1992] AT171,CT170,ST171 |
84732-20210 |
— | ||
|
84730B
|
84730B
90981-11014 Bulb, Position Indicator Lamp[12.1987 - 11.1992] AT171,CT170,ST171 14V 1.4W |
90981-11014 |
from US $1.92 |
||
|
84790
|
84790
84790-20310 Switch Assy, Rear Window Defogger[05.1990 - 11.1992] AT171,CT170,ST171..RHD W(TIMER & FRONT WINDOW DEFOGGER); AT171,CT170,ST171..LHD W(TIMER & FRONT WINDOW DEFOGGER) |
84790-20310 |
US $149.97 |
||
|
84790
|
84790
84790-20320 Switch Assy, Rear Window Defogger[05.1990 - 11.1992] AT171,CT170..RHD W(TIMER); AT171,CT170..LHD W(TIMER) |
84790-20320 |
US $122.30 |
||
|
84790
|
84790
84790-20330 Switch Assy, Rear Window Defogger[11.1989 - 11.1992] AT171,CT170,ST171 |
84790-20330 |
US $57.08 |
||
|
84790B
|
84790B
84999-10320 Bulb, Satellite Switch[11.1989 - 11.1992] CT170 14V 0.84W; ST171..RHD 14V 0.84W; AT171..RHD..(LB,SED) 14V 0.84W; ST171..LB..4FC..G 14V 0.84W; ST171..LHD..LB..5F 14V 0.84W; ST171..LHD..SED 14V 0.84W; AT171..WG..EFI 14V 0.84W; AT171..4FC..EFI 14V 0.84W; AT171..(LB,SED)..5F..EFI |
84999-10320 |
from US $3.84 |
||
|
84930
|
84930
84930-16010-03 Switch Assy, Door Control[12.1987 - 03.1992] AT171,CT170,ST171..LB,SED SHADOW GRAY,TRIM1# |
84930-16010-03 |
US $63.19 |
||
| replacement | |||||
|
84930
|
84930
84930-16010-P0
Switch Assy, Door Control
[12.1987 - 03.1992] AT171,CT170,ST171..LB,SED SHADOW GRAY,TRIM1# |
84930-16010-P0 |
— | ||
|
84930
|
84930
84930-16010-06 Switch Assy, Door ControlDOOR CONTROL [02.1989 - 03.1992] AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
84930-16010-06 |
US $62.90 |
||
| replacement | |||||
|
84930
|
84930
84930-16010-P0
Switch Assy, Door Control
[02.1989 - 03.1992] AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
84930-16010-P0 |
— | ||
|
84930
|
84930
84930-16010-24 Switch Assy, Door ControlDOOR CONTROL [11.1989 - 11.1990] AT171,CT170..WG DARK BLUE,TRIM8#; AT171,CT170,ST171..LB,SED DARK BLUE,TRIM8# |
84930-16010-24 |
US $63.19 |
||
| replacement | |||||
|
84930
|
84930
84930-16010-P0
Switch Assy, Door Control
[11.1989 - 11.1990] AT171,CT170..WG DARK BLUE,TRIM8#; AT171,CT170,ST171..LB,SED DARK BLUE,TRIM8# |
84930-16010-P0 |
— | ||
|
85500
|
85500
85500-12250
Lighter Assy, Cigarette
[12.1987 - 11.1992] AT171,CT170,ST171 |
85500-12250 |
— | ||
| replacement | |||||
|
85500
|
85500
85500-10120 Lighter Assy, Cigarette[12.1987 - 11.1992] AT171,CT170,ST171 |
85500-10120 |
US $54.26 |
||
|
85513
|
85513
85513-12020 Cover, Cigarette Lighter[12.1990 - 11.1992] AT171,CT170,ST171 |
85513-12020 |
from US $5.21 |
||
|
88515
|
88515
88515-16040
Valve, Cooler Expansion
[11.1989 - 11.1992] CT170..RHD; AT171,ST171..LHD |
88515-16040 |
— | ||
|
88660C
|
88660C
84660-32060 Switch, Cooler[11.1989 - 11.1992] AT171,CT170,ST171..RHD |
84660-32060 |
US $60.57 |
||
|
827111A380
|
827111A380
82711-1A380 Wire, Fuse To Fuse(for Combustion Heater) |
82711-1A380 |
US $12.67 |
||
|
9014940013
|
9014940013
90149-40013 New Genuine Part |
90149-40013 |
US $1.12 |
||
|
9017009002
|
9017009002
90170-09002 Nut, Tunnel Mode Select Switch |
90170-09002 |
US $1.05 |
||
|
9046313003
|
9046313003
90463-13003 Clamp, Hood Lock Control Wire |
90463-13003 |
US $2.88 |
||
|
9046315003
|
9046315003
90463-15003 New Genuine Part |
90463-15003 |
US $2.56 |
||
|
9331913008
|
9331913008
93319-13008 New Genuine Part |
93319-13008 |
US $0.73 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $0.80 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.12 |
||
