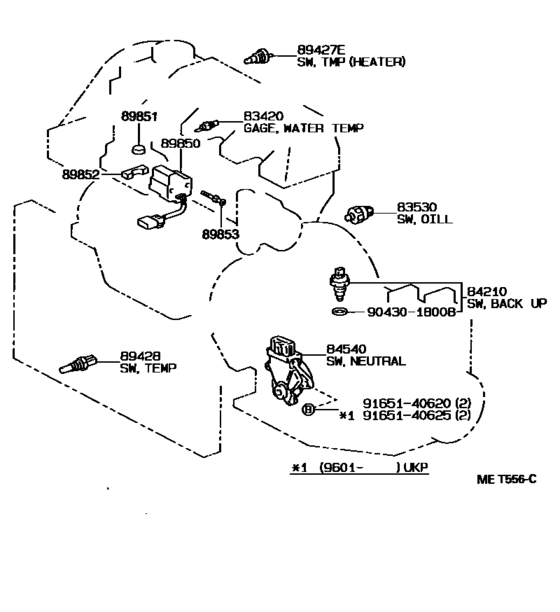

Switch & Relay & Computer ([02.1992 - ] ENGINE & TRANSMISSION (9202- )CT190..UKP) Diagram Toyota CARINA
- Year
- 1996 - 1997
- Sales region
- Europe
- Frame
- CT190
- grade
- XL
- body
- SED
- ENGINE
- 2CT
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- CARINA E (UKP)
- From
- 01.1996
- To
- 10.1997
- Vehicle Model
- Carina E
- Driver's Position
- RHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[10.1994 - 10.1997] CT190..UKP |
83420-20020 |
from US $30.62 |
||
|
83530
|
83530
83530-30060
Switch Assy, Oil Pressure (For Engine)
[10.1994 - 10.1997] CT190..UKP |
83530-30060 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60030 Switch Assy, Oil Pressure (For Engine)[10.1994 - 10.1997] CT190..UKP |
83530-60030 |
from US $26.54 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[12.1992 - 10.1997] AT19#,CT190,ST191..UKP..MTM |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[12.1992 - 10.1997] AT19#,CT190,ST191..UKP..MTM |
84210-52050 |
from US $20.67 |
||
|
89427E
|
89427E
89427-12051 Switch, Temperature Detect[10.1994 - 10.1997] CT190..UKP |
89427-12051 |
US $77.17 |
||
|
89428
|
89428
89428-33010 Switch, Temperature Detect[12.1992 - 10.1997] CT190,ST191..UKP |
89428-33010 |
from US $88.80 |
||
|
89850
|
89850
89850-20011
Unit Assy, Fuel Cut Valve Control
[01.1996 - 10.1997] CT190..UKP |
89850-20011 |
— | ||
|
89851
|
89851
89851-20010
Cap, Fuel Cut Valve Controller
[01.1996 - 10.1997] CT190..UKP |
89851-20010 |
— | ||
|
89852
|
89852
89852-20010
Clamp, Fuel Cut Valve Controller
[01.1996 - 10.1997] CT190..UKP |
89852-20010 |
— | ||
|
89853
|
89853
89853-20010 Bolt, Fuel Cut Valve ControllerFUEL CUT VALVE CONTROLLER [01.1996 - 10.1997] CT190..UKP |
89853-20010 |
US $16.89 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.12 |
||
