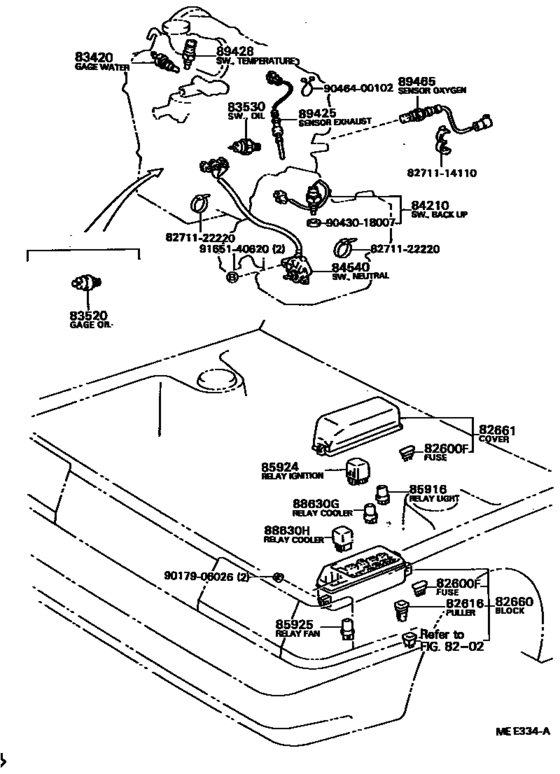

Switch & Relay & Computer ([05.1984 - ] (8405- )ST150) Diagram Toyota CARINA
- Year
- 1986 - 1988
- Sales region
- Japan
- Frame
- ST150
- grade
- SG
- body
- 4D
- ENGINE
- 1SILU
- TRANSMISSION
- MTM
- Model
- CARINA FF
- From
- 05.1986
- To
- 04.1988
- Gear Shift Type
- 5F
- Vehicle Model
- Carina FF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82600F
|
82600F
90982-09002 Fusible Link[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 １０Ａ,10A |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 １５Ａ,15A |
90982-09003 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 ２０Ａ,20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 ７．５Ａ,7.5A |
90982-09005 |
from US $1.03 |
||
|
82616
|
82616
82616-12010 Lever, Fuse[05.1984 - 05.1986] AT15#,160,CT150,ST150,162 |
82616-12010 |
from US $3.04 |
||
|
82660
|
82660
82660-32040
Block Assy, Relay, Engine Room
[10.1984 - 04.1988] AT15#,CT150,ST150 |
82660-32040 |
— | ||
| replacement | |||||
|
82660
|
82660
82660-32160
Block Assy, Relay, Engine Room
[10.1984 - 04.1988] AT15#,CT150,ST150 |
82660-32160 |
— | ||
|
82661
|
82661
82661-32010
Cover, Relay Block, No.1
[05.1984 - 04.1988] AT15#,CT150,ST150 ENGINE ROOM |
82661-32010 |
— | ||
|
82661
|
82661
82661-32030
Cover, Relay Block, No.1
[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 COWL SIDE |
82661-32030 |
— | ||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
83420-20020 |
from US $30.54 |
||
|
83520
|
83520
83520-14042
Gage Assy,oil Pressure Sender
[08.1985 - 05.1986] AT150..SG; AT160,ST150,162 |
83520-14042 |
— | ||
| replacement | |||||
|
83520
|
83520
83520-14043
Gage Assy,oil Pressure Sender
[08.1985 - 05.1986] AT150..SG; AT160,ST150,162 |
83520-14043 |
— | ||
|
83520
|
83520
83520-14043
Gage Assy,oil Pressure Sender
[05.1987 - 04.1988] ST150,162 |
83520-14043 |
— | ||
|
83530
|
83530
83530-14020 Switch Assy, Oil Pressure (For Engine)[10.1984 - 05.1986] ST150 |
83530-14020 |
US $17.91 |
||
| replacement | |||||
|
83530
|
83530
83530-60040 Switch Assy, Oil Pressure (For Engine)[10.1984 - 05.1986] ST150 |
83530-60040 |
from US $34.52 |
||
|
83530
|
83530
83530-30050
Switch Assy, Oil Pressure (For Engine)
[08.1987 - 04.1988] AT15#..DX,SG; ST150..SG |
83530-30050 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60050 Switch Assy, Oil Pressure (For Engine)[08.1987 - 04.1988] AT15#..DX,SG; ST150..SG |
83530-60050 |
from US $29.48 |
||
|
83530
|
83530
83530-30080
Switch Assy, Oil Pressure (For Engine)
[09.1986 - 08.1987] ST150..SG |
83530-30080 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60040 Switch Assy, Oil Pressure (For Engine)[09.1986 - 08.1987] ST150..SG |
83530-60040 |
from US $34.52 |
||
|
84210
|
84210
84210-60021 Switch Assy, Back-Up Lamp[05.1984 - 04.1988] AT15#,160,CT150,ST150,162..MTM |
84210-60021 |
from US $44.56 |
||
|
85916
|
85916
90987-01003 Relay, Fuel Lid Opener[05.1984 - 04.1988] AT15#,CT150,ST150 TAIL & HEAD |
90987-01003 |
from US $35.26 |
||
|
85924
|
85924
85913-30020
Relay, Ignition, No.1
[05.1984 - 12.1986] AT15#,160,CT150,ST150,162 |
85913-30020 |
— | ||
|
85924
|
85924
90987-04002 Relay, Ignition, No.1[12.1986 - 04.1988] AT15#,160,CT150,ST150,162 |
90987-04002 |
from US $24.67 |
||
|
85925
|
85925
90987-03001 Relay[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
90987-03001 |
from US $31.32 |
||
|
88630G
|
88630G
90987-02004 Relay Assy, Starter[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
90987-02004 |
from US $28.49 |
||
| replacement | |||||
|
88630G
|
88630G
909870200483 [05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
909870200483 |
US $53.75 |
||
|
88630H
|
88630H
88630-32010
Relay Assy, Cooler
[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
88630-32010 |
— | ||
|
89425
|
89425
89425-12190 Sensor, Exhaust Gas Temperature[08.1985 - 05.1987] AT15#,ST150 |
89425-12190 |
US $282.46 |
||
| replacement | |||||
|
89425
|
89425
89425-12250
Sensor, Exhaust Gas Temperature
[08.1985 - 05.1987] AT15#,ST150 |
89425-12250 |
— | ||
|
89425
|
89425
89425-12250
Sensor, Exhaust Gas Temperature
[05.1987 - 04.1988] AT15#,ST150 |
89425-12250 |
— | ||
|
89428
|
89428
89428-20060
Switch, Temperature Detect, No.2
[01.1988 - 04.1988] ST150,162 |
89428-20060 |
— | ||
|
89428
|
89428
89428-32010 Switch, Temperature Detect, No.2[05.1984 - 01.1988] ST150,162 |
89428-32010 |
US $84.91 |
||
|
89465
|
89465
89465-20051 Sensor, Oxygen[08.1984 - 04.1988] ST150 MARK=BLUE |
89465-20051 |
US $132.50 |
||
|
8271114110
|
8271114110
82711-14110 Clamp(For Hood Lock Control Cable) |
82711-14110 |
US $2.72 |
||
|
8271122220
|
8271122220
82711-22220 Clamp (For Speedometer Cable) |
82711-22220 |
US $3.93 |
||
|
9017906026
|
9017906026
90179-06026
Nut, Cap(For Cylinder Head Cover)
|
90179-06026 |
— | ||
| replacement | |||||
|
9017906026
|
9017906026
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9043018007
|
9043018007
90430-18007
Gasket(For Water Hole)
|
90430-18007 |
— | ||
| replacement | |||||
|
9043018007
|
9043018007
90430-18008 Gasket |
90430-18008 |
from US $0.99 |
||
|
9046400102
|
9046400102
90464-00102 Clamp, No.3(For Luggage Door Lock Control Cable) |
90464-00102 |
US $2.33 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
