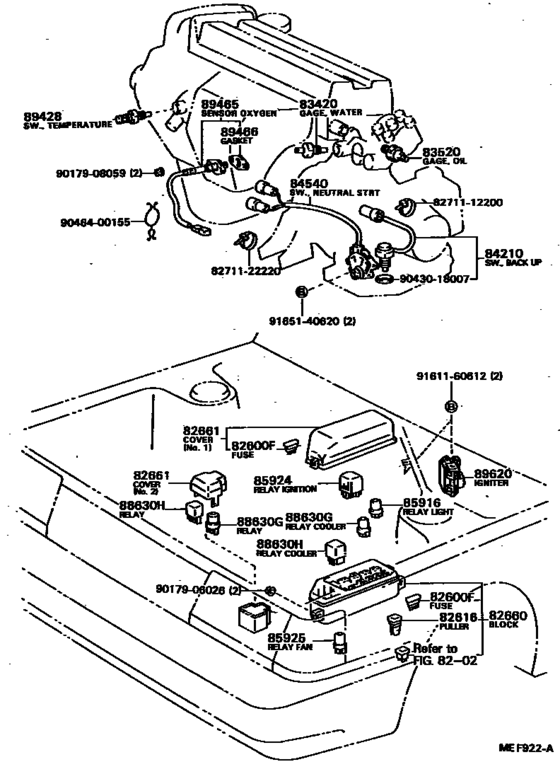

Switch & Relay & Computer ([08.1985 - ] (8508- )ST162) Diagram Toyota CARINA
- Year
- 1985 - 1988
- Sales region
- Japan
- Frame
- ST162
- grade
- GTR
- body
- 4D
- ENGINE
- 3SGELU
- TRANSMISSION
- MTM
- Model
- CARINA FF
- From
- 08.1985
- To
- 04.1988
- Gear Shift Type
- 5F
- Vehicle Model
- Carina FF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82600F
|
82600F
90982-07011 Fuse, Fuse Block[08.1985 - 04.1988] AT160,ST162 ３０Ａ,30A |
90982-07011 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 １０Ａ,10A |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 １５Ａ,15A |
90982-09003 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 ２０Ａ,20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 ７．５Ａ,7.5A |
90982-09005 |
from US $1.03 |
||
|
82616
|
82616
82616-12010 Lever, Fuse[05.1984 - 05.1986] AT15#,160,CT150,ST150,162 |
82616-12010 |
from US $3.04 |
||
|
82616
|
82616
82616-12020 Puller, Fuse[05.1986 - 04.1988] AT160,ST162 |
82616-12020 |
US $4.19 |
||
|
82660
|
82660
82660-20180 Block Assy, Relay, Engine Room[08.1985 - 04.1988] AT160,ST162 |
82660-20180 |
US $216.94 |
||
|
82661
|
82661
82661-20130 Cover, Relay Block, No.1[08.1985 - 04.1988] AT160,ST162 ENGINE ROOM,NO.2 |
82661-20130 |
US $16.02 |
||
|
82661
|
82661
82661-32030
Cover, Relay Block, No.1
[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 COWL SIDE |
82661-32030 |
— | ||
|
82661
|
82661
82672-20060 Cover, Relay Block, No.1[08.1985 - 04.1988] AT160,ST162 ENGINE ROOM,NO.1 |
82672-20060 |
US $28.10 |
||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
83420-20020 |
from US $30.54 |
||
|
83520
|
83520
83520-14042
Gage Assy,oil Pressure Sender
[08.1985 - 05.1986] AT150..SG; AT160,ST150,162 |
83520-14042 |
— | ||
| replacement | |||||
|
83520
|
83520
83520-14043
Gage Assy,oil Pressure Sender
[08.1985 - 05.1986] AT150..SG; AT160,ST150,162 |
83520-14043 |
— | ||
|
83520
|
83520
83520-14043
Gage Assy,oil Pressure Sender
[05.1987 - 04.1988] ST150,162 |
83520-14043 |
— | ||
|
84210
|
84210
84210-60021 Switch Assy, Back-Up Lamp[05.1984 - 04.1988] AT15#,160,CT150,ST150,162..MTM |
84210-60021 |
from US $44.56 |
||
|
85916
|
85916
90987-01003 Relay, Fuel Lid Opener[08.1985 - 04.1988] AT160,ST162 TAIL |
90987-01003 |
from US $35.26 |
||
|
85916
|
85916
90987-02006 Relay[08.1985 - 04.1988] AT160,ST162 HEAD |
90987-02006 |
from US $27.28 |
||
|
85924
|
85924
85913-30020
Relay, Ignition, No.1
[05.1984 - 12.1986] AT15#,160,CT150,ST150,162 |
85913-30020 |
— | ||
|
85924
|
85924
90987-04002 Relay, Ignition, No.1[12.1986 - 04.1988] AT15#,160,CT150,ST150,162 |
90987-04002 |
from US $24.67 |
||
|
85925
|
85925
90987-03001 Relay[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
90987-03001 |
from US $31.32 |
||
|
88630G
|
88630G
90987-02004 Relay Assy, Starter[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
90987-02004 |
from US $28.49 |
||
| replacement | |||||
|
88630G
|
88630G
909870200483 [05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
909870200483 |
US $53.75 |
||
|
88630H
|
88630H
88630-32010
Relay Assy, Cooler
[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
88630-32010 |
— | ||
|
89428
|
89428
89428-20060
Switch, Temperature Detect, No.2
[01.1988 - 04.1988] ST150,162 |
89428-20060 |
— | ||
|
89428
|
89428
89428-32010 Switch, Temperature Detect, No.2[05.1984 - 01.1988] ST150,162 |
89428-32010 |
US $84.91 |
||
|
89465
|
89465
89465-29175 Sensor, Oxygen[08.1985 - 04.1988] ST162 |
89465-29175 |
US $136.86 |
||
| replacement | |||||
|
89465
|
89465
89465-29176
Sensor, Oxygen
[08.1985 - 04.1988] ST162 |
89465-29176 |
— | ||
|
89466
|
89466
89466-32010 Gasket, Oxygen Sensor[08.1985 - 04.1988] ST162 |
89466-32010 |
US $10.48 |
||
| replacement | |||||
|
89466
|
89466
89466-30030 Gasket, Oxygen Sensor[08.1985 - 04.1988] ST162 |
89466-30030 |
US $13.10 |
||
|
89620
|
89620
89620-20230 Igniter Assy[08.1985 - 04.1988] ST162 |
89620-20230 |
US $439.71 |
||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.62 |
||
|
8271122220
|
8271122220
82711-22220 Clamp (For Speedometer Cable) |
82711-22220 |
US $3.93 |
||
|
9017906026
|
9017906026
90179-06026
Nut, Cap(For Cylinder Head Cover)
|
90179-06026 |
— | ||
| replacement | |||||
|
9017906026
|
9017906026
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.80 |
||
|
9043018007
|
9043018007
90430-18007
Gasket(For Water Hole)
|
90430-18007 |
— | ||
| replacement | |||||
|
9043018007
|
9043018007
90430-18008 Gasket |
90430-18008 |
from US $0.99 |
||
|
9046400155
|
9046400155
90464-00155
New Genuine Part
|
90464-00155 |
— | ||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt |
91611-G0612 |
from US $0.78 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
