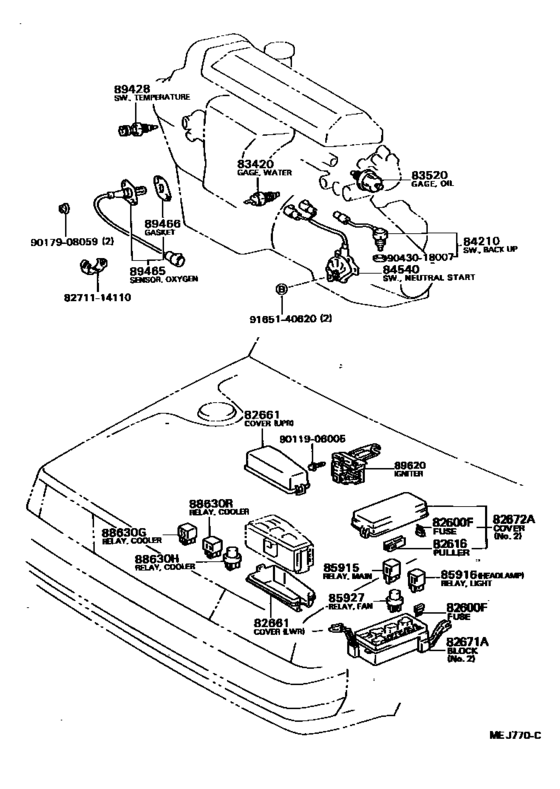

Switch & Relay & Computer ([08.1987 - ] (8708- )G) Diagram Toyota CARINA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- ST162
- grade
- G
- ENGINE
- 3SGELU
- TRANSMISSION
- MTM
- Model
- CARINA ED
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 5F
- Vehicle Model
- Carina ED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82600F
|
82600F
90982-09002 Fusible Link[08.1987 - 08.1989] ST16# １０Ａ |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[08.1987 - 08.1989] ST16# １５Ａ |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[08.1987 - 08.1989] ST16# ２０Ａ |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[08.1987 - 08.1989] ST16# ７．５Ａ |
90982-09005 |
from US $1.03 |
||
|
82616
|
82616
82616-12020 Puller, Fuse[08.1987 - 08.1989] ST16# |
82616-12020 |
US $4.19 |
||
|
82661
|
82661
82661-20030 Cover, Relay Block, No.1[08.1987 - 08.1989] ST16# 下側 |
82661-20030 |
US $24.17 |
||
|
82661
|
82661
82661-20150 Cover, Relay Block, No.1[08.1987 - 08.1989] ST16# 上側 |
82661-20150 |
US $40.19 |
||
|
82671A
|
82671A
82671-20030
Block Assy, Junction, No.1
[08.1987 - 08.1989] ST16# NO.1 |
82671-20030 |
— | ||
|
82671A
|
82671A
82671-20040 Block, Junction[08.1987 - 08.1989] ST160;ST162..G NO.2 |
82671-20040 |
US $216.94 |
||
|
82671A
|
82671A
82671-20060 Block, Junction[08.1987 - 08.1989] ST16# NO.3 |
82671-20060 |
US $281.01 |
||
|
82672A
|
82672A
82672-20101 Cover, Junction Block[08.1987 - 08.1989] ST160;ST162..G NO.2 |
82672-20101 |
US $37.42 |
||
|
82672A
|
82672A
82672-20170 Cover, Junction Block[08.1987 - 08.1989] ST16# NO.1 |
82672-20170 |
US $6.12 |
||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[08.1987 - 08.1989] ST160;ST162..G |
83420-20020 |
from US $30.54 |
||
|
83520
|
83520
83520-14043
Gage Assy,oil Pressure Sender
[08.1987 - 08.1989] ST16#..G,S,X; ST160,163..F |
83520-14043 |
— | ||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[08.1987 - 08.1989] ST16#..5F |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[08.1987 - 08.1989] ST16#..5F |
84210-52050 |
from US $20.67 |
||
|
85915
|
85915
90987-04002 Relay, Ignition, No.1[08.1987 - 08.1989] ST16# |
90987-04002 |
from US $24.67 |
||
|
85916
|
85916
90987-02002
Relay, Ignition, No.1
[08.1987 - 08.1989] ST16# MARUKO,TAIL LAMP |
90987-02002 |
— | ||
| replacement | |||||
|
85916
|
85916
90987-02004 Relay Assy, Starter[08.1987 - 08.1989] ST16# MARUKO,TAIL LAMP |
90987-02004 |
from US $28.70 |
||
|
85916
|
85916
90987-02004 Relay Assy, Starter[08.1987 - 08.1989] ST16# DENSO,TAIL LAMP |
90987-02004 |
from US $28.70 |
||
|
85916
|
85916
90987-02006 Relay[08.1987 - 08.1989] ST16# HEADLAMP |
90987-02006 |
from US $27.28 |
||
|
85927
|
85927
90987-03001 Relay[08.1987 - 08.1989] ST16# |
90987-03001 |
from US $31.32 |
||
|
88630G
|
88630G
88630-32010
Relay Assy, Cooler
[08.1987 - 03.1989] ST16# |
88630-32010 |
— | ||
|
88630H
|
88630H
90987-02004 Relay Assy, Starter[08.1987 - 03.1989] ST16# |
90987-02004 |
from US $28.70 |
||
|
88630R
|
88630R
85926-30020 Relay, Headlamp Dimmer[08.1987 - 03.1989] ST16# |
85926-30020 |
from US $55.03 |
||
|
89428
|
89428
89428-20060
Switch, Temperature Detect, No.2
[01.1988 - 08.1989] ST16# |
89428-20060 |
— | ||
|
89428
|
89428
89428-32010 Switch, Temperature Detect, No.2[08.1987 - 01.1988] ST16# |
89428-32010 |
US $84.91 |
||
|
89465
|
89465
89465-29175 Sensor, Oxygen[08.1987 - 08.1989] ST162..G |
89465-29175 |
US $136.86 |
||
| replacement | |||||
|
89465
|
89465
89465-29176
Sensor, Oxygen
[08.1987 - 08.1989] ST162..G |
89465-29176 |
— | ||
|
89465
|
89465
89465-29265 Sensor, Oxygen[08.1988 - 08.1989] ST162..G ｱﾘ(ESC) |
89465-29265 |
US $138.32 |
||
|
89466
|
89466
89466-30030 Gasket, Oxygen Sensor[08.1987 - 08.1989] ST162..G |
89466-30030 |
US $13.10 |
||
|
89620
|
89620
89620-20221 Igniter Assy[08.1987 - 08.1989] ST162..G |
89620-20221 |
US $439.71 |
||
|
8271114110
|
8271114110
82711-14110 Clamp(For Hood Lock Control Cable) |
82711-14110 |
US $2.72 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.80 |
||
|
9043018007
|
9043018007
90430-18007
Gasket(For Water Hole)
|
90430-18007 |
— | ||
| replacement | |||||
|
9043018007
|
9043018007
90430-18008 Gasket |
90430-18008 |
from US $0.99 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
