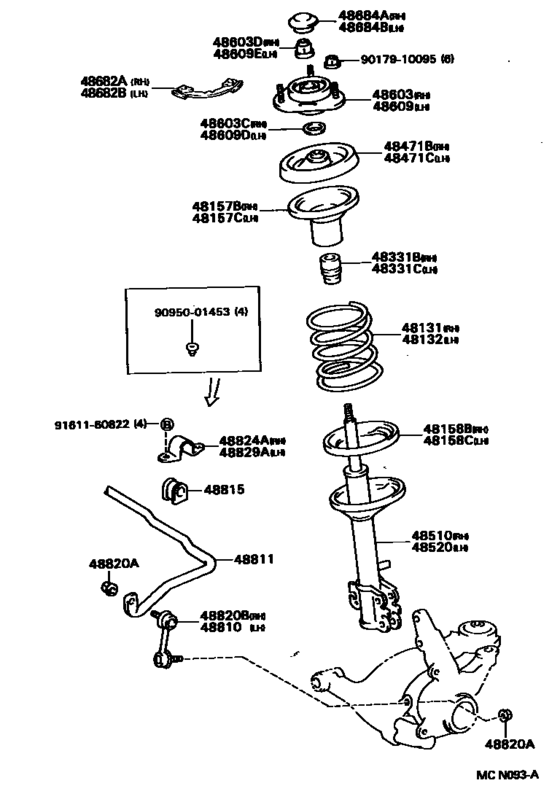

Front Spring & Shock Absorber ([08.1992 - 08.1994] (9208-9408)) Diagram Toyota CARINA
- Year
- 1992 - 1994
- Sales region
- Japan
- Frame
- ST190
- grade
- SX
- ENGINE
- 4SFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1992
- To
- 08.1994
- Vehicle Model
- Carina FF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-2S250 Spring, Front Coil, Rh[08.1992 - 08.1994] ST190..ATM..(SE,SEEXT,SX) |
48131-2S250 |
US $131.04 |
||
|
48132
|
48132
48131-2S230 Spring, Front Coil, Rh[08.1992 - 08.1994] ST190..ATM..(SE,SEEXT,SX) |
48131-2S230 |
US $163.07 |
||
|
48157B
|
48157B
48157-20130 Insulator, Front Coil Spring, Upper Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
48157-20130 |
US $20.53 |
||
|
48157C
|
48157C
48157-20130 Insulator, Front Coil Spring, Upper Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
48157-20130 |
US $20.53 |
||
|
48158B
|
48158B
48158-20080 Insulator, Front Coil Spring, Lower Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
48158-20080 |
US $15.81 |
||
|
48158C
|
48158C
48158-20080 Insulator, Front Coil Spring, Lower Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
48158-20080 |
US $15.81 |
||
|
48331B
|
48331B
48331-12130 Bumper, Front Spring, No.1[08.1992 - 08.1996] ST190;AT191,CT19#,ST195..SE,SG,SL,SX |
48331-12130 |
US $31.62 |
||
|
48331C
|
48331C
48331-12130 Bumper, Front Spring, No.1[08.1992 - 08.1996] ST190;AT191,CT19#,ST195..SE,SG,SL,SX |
48331-12130 |
US $31.62 |
||
|
48471B
|
48471B
48044-20040 Seat, Front Coil Spring, Upper Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
48044-20040 |
US $31.62 |
||
|
48471C
|
48471C
48044-20040 Seat, Front Coil Spring, Upper Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
48044-20040 |
US $31.62 |
||
|
48510
|
48510
48510-20870 Absorber Assy, Shock, Front Rh[08.1992 - 08.1994] ST190..SE,SEEXT,SX |
48510-20870 |
US $327.60 |
||
| replacement | |||||
|
48510
|
48510
48510-20782 Absorber Assy, Shock, Front Rh[08.1992 - 08.1994] ST190..SE,SEEXT,SX |
48510-20782 |
US $243.69 |
||
|
48520
|
48520
48520-20870 Absorber Assy, Shock, Front Lh[08.1992 - 08.1994] ST190..SE,SEEXT,SX |
48520-20870 |
US $327.60 |
||
| replacement | |||||
|
48520
|
48520
48520-20782
Absorber Assy, Shock, Front Lh
[08.1992 - 08.1994] ST190..SE,SEEXT,SX |
48520-20782 |
— | ||
|
48603
|
48603
48609-20360 Support Sub-Assy, Front Suspension, Rh[08.1992 - 11.1992] CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI |
48609-20360 |
US $82.99 |
||
| replacement | |||||
|
48603
|
48603
48609-20361 Support Sub-Assy, Front Suspension, Rh[08.1992 - 11.1992] CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI |
48609-20361 |
US $82.99 |
||
|
48603
|
48603
48609-20361 Support Sub-Assy, Front Suspension, Rh[11.1992 - 08.1996] CT19#,ST19#;AT19#..SEEXT,SX,SXI |
48609-20361 |
US $82.99 |
||
|
48603C
|
48603C
90303-22049 Seal, Dust(For Front Suspension Support)[08.1992 - 08.1996] AT19#,CT19#,ST19# |
90303-22049 |
from US $3.88 |
||
|
48603D
|
48603D
94182-11400 Nut(For Idler Arm Support)[08.1992 - 08.1996] AT19#,CT19#,ST19# |
94182-11400 |
US $4.96 |
||
|
48609
|
48609
48609-20360 Support Sub-Assy, Front Suspension, Rh[08.1992 - 11.1992] CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI |
48609-20360 |
US $82.99 |
||
| replacement | |||||
|
48609
|
48609
48609-20361 Support Sub-Assy, Front Suspension, Rh[08.1992 - 11.1992] CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI |
48609-20361 |
US $82.99 |
||
|
48609
|
48609
48609-20361 Support Sub-Assy, Front Suspension, Rh[11.1992 - 08.1996] CT19#,ST19#;AT19#..SEEXT,SX,SXI |
48609-20361 |
US $82.99 |
||
|
48609D
|
48609D
90303-22049 Seal, Dust(For Front Suspension Support)[08.1992 - 08.1996] AT19#,CT19#,ST19# |
90303-22049 |
from US $3.88 |
||
|
48609E
|
48609E
94182-11400 Nut(For Idler Arm Support)[08.1992 - 08.1996] AT19#,CT19#,ST19# |
94182-11400 |
US $4.96 |
||
|
48684A
|
48684A
48684-20060 Cover, Front Suspension Support Dust, Rh[08.1992 - 08.1996] CT19#,ST19#;AT19#..SEEXT,SX,SXI |
48684-20060 |
US $8.88 |
||
|
48684B
|
48684B
48684-20060 Cover, Front Suspension Support Dust, Rh[08.1992 - 08.1996] CT19#,ST19#;AT19#..SEEXT,SX,SXI |
48684-20060 |
US $8.88 |
||
|
48810
|
48810
48810-20020
Link Assy, Front Stabilizer, Lh
[08.1992 - 08.1994] CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI |
48810-20020 |
— | ||
| replacement | |||||
|
48810
|
48810
48810-44010 Link Assy, Front Stabilizer, Lh[08.1992 - 08.1994] CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI |
48810-44010 |
US $78.44 |
||
|
48811
|
48811
48811-20710
Bar, Stabilizer, Front
[08.1992 - 08.1996] ST190;AT191..SL |
48811-20710 |
— | ||
|
48815
|
48815
48815-30040 Bush, Front Stabilizer Bar, No.1[08.1992 - 08.1996] ST190;AT191,CT195,ST195..SE,SG,SL,SX |
48815-30040 |
from US $6.47 |
||
|
48820A
|
48820A
90179-10054 Nut, No.1 (For Center Support Bearing)[08.1992 - 08.1994] CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI |
90179-10054 |
from US $0.37 |
||
|
48820B
|
48820B
48820-20040
Link Assy, Front Stabilizer, Rh
[08.1992 - 08.1994] CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI |
48820-20040 |
— | ||
| replacement | |||||
|
48820B
|
48820B
48820-44010 Link Assy, Front Stabilizer, Rh[08.1992 - 08.1994] CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI |
48820-44010 |
from US $62.40 |
||
|
48824A
|
48824A
48824-12040 Bracket, Stabilizer, Front[08.1992 - 08.1994] CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI |
48824-12040 |
from US $4.74 |
||
|
48829A
|
48829A
48824-12040 Bracket, Stabilizer, Front[08.1992 - 08.1994] CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI |
48824-12040 |
from US $4.74 |
||
|
9017910095
|
9017910095
90179-10095 Nut(For Backing Plate To Rear Axle Housing Setting) |
90179-10095 |
US $1.76 |
||
|
9095001453
|
9095001453
90950-01453 New Genuine Part |
90950-01453 |
US $1.46 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.19 |
||
