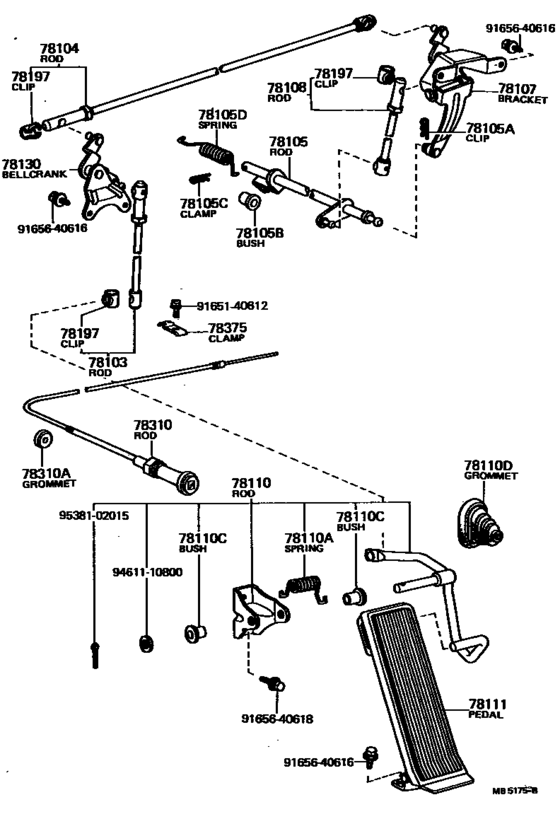

Accelerator Link ([10.1975 - 07.1977] (7510-7707)LHD..ST) Diagram Toyota CARINA
- Year
- 1975 - 1977
- Sales region
- Europe
- Frame
- TA14
- grade
- ST
- body
- 2DS
- ENGINE
- 2TB
- TRANSMISSION
- MTM
- Model
- CARINA
- From
- 10.1975
- To
- 07.1977
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Carina
- Driver's Position
- LHD
- Body
- SED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78103
|
78103
78103-14020
Rod Sub-Assy, Accelerator Connecting, No.1
[12.1970 - 03.1974] TA1#..LHD |
78103-14020 |
— | ||
|
78103
|
78103
78103-14021
Rod Sub-Assy, Accelerator Connecting, No.1
[03.1974 - 09.1975] TA1#..LHD |
78103-14021 |
— | ||
|
78103
|
78103
78103-14110 Rod Sub-Assy, Accelerator Connecting, No.1ACCELERATOR CONNECTING, NO.1 [10.1975 - 07.1977] TA14..LHD |
78103-14110 |
US $35.24 |
||
| replacement | |||||
|
78103
|
78103
78105-30250
Rod Sub-Assy, Accelerator Connecting, No.3
[10.1975 - 07.1977] TA14..LHD |
78105-30250 |
— | ||
|
78104
|
78104
78104-14110 Rod Sub-Assy, Accelerator Connecting, No.2ACCELERATOR CONNECTING, NO.2 [10.1975 - 07.1977] TA14..LHD..ST |
78104-14110 |
US $8.88 |
||
|
78105
|
78105
78105-14030
Rod Sub-Assy, Accelerator Connecting, No.3
[12.1970 - 07.1972] TA1#..LHD |
78105-14030 |
— | ||
|
78105
|
78105
78106-14070
Rod Sub-Assy, Accelerator Connecting, No.3
[10.1975 - 07.1977] TA14..LHD..ST |
78106-14070 |
— | ||
|
78105A
|
78105A
90468-12057 Clip (For Accelerator Torque Rod)[12.1970 - 07.1972] TA1#..LHD |
90468-12057 |
US $2.04 |
||
|
78105A
|
78105A
90468-16012 Pin, Sub Seat Cushion Pin[10.1975 - 07.1977] TA14 |
90468-16012 |
US $4.48 |
||
|
78105B
|
78105B
90386-08077 Bush (For Throttle Cam Shaft)[08.1972 - 07.1977] TA12,14..ST |
90386-08077 |
from US $1.44 |
||
|
78105C
|
78105C
90468-16012 Pin, Sub Seat Cushion Pin[08.1972 - 07.1977] TA12,14..ST |
90468-16012 |
US $4.48 |
||
|
78105D
|
78105D
90508-14002 Spring (For Accelerator Torque Rod)[10.1975 - 07.1977] TA14..ST |
90508-14002 |
US $3.79 |
||
|
78107
|
78107
78107-14030
Bracket Sub-Assy, Accelerator Torque Rod
[12.1970 - 07.1972] TA1#..LHD |
78107-14030 |
— | ||
|
78107
|
78107
78170-14070
Bracket Sub-Assy, Accelerator Torque Rod
[10.1975 - 07.1977] TA14..LHD..ST |
78170-14070 |
— | ||
|
78108
|
78108
78105-14230
Rod Sub-Assy, Accelerator Connecting, No.4
[10.1975 - 07.1977] TA14..LHD..ST |
78105-14230 |
— | ||
|
78110
|
78110
78110-14020
Rod Assy, Accelerator Pedal
[12.1970 - 09.1975] TA1#..LHD |
78110-14020 |
— | ||
|
78110
|
78110
78120-14050
Rod Assy, Accelerator Pedal
[10.1975 - 07.1977] TA14..LHD..ST |
78120-14050 |
— | ||
|
78110A
|
78110A
90508-20238
Spring (For Accelerator Pedal Rod)
[12.1970 - 09.1975] TA1#..LHD |
90508-20238 |
— | ||
|
78110A
|
78110A
90508-23001
Spring (For Accelerator Pedal Rod)
[10.1975 - 07.1977] TA14..LHD |
90508-23001 |
— | ||
|
78110C
|
78110C
90386-08155 Bush (For Accelerator Pedal Rod)[10.1975 - 07.1977] TA14..LHD |
90386-08155 |
US $1.14 |
||
|
78110D
|
78110D
78199-22020
Grommet (For Accelerator Pedal Rod)
[06.1973 - 07.1977] TA1#..LHD |
78199-22020 |
— | ||
|
78110D
|
78110D
90480-01318
Grommet (For Accelerator Pedal Rod)
[12.1970 - 06.1973] TA1#..LHD |
90480-01318 |
— | ||
|
78111
|
78111
78010-14011
Pedal, Accelerator
[12.1970 - 07.1977] TA1#..LHD |
78010-14011 |
— | ||
|
78130
|
78130
78015-14040
Bellcrank Assy, Accelerator
[10.1975 - 07.1977] TA14..LHD..ST |
78015-14040 |
— | ||
|
78197
|
78197
78197-10010 Clip(For Throttle Link Connecting Rod)[12.1970 - 07.1977] TA1# |
78197-10010 |
from US $1.27 |
||
|
78310
|
78310
78310-14071
Cable Assy, Choke
[10.1975 - 07.1977] TA14..LHD..ST |
78310-14071 |
— | ||
|
78310A
|
78310A
90480-13055 Grommet, Dash Panel, No.3[08.1972 - 07.1977] TA12,14..ST |
90480-13055 |
US $1.40 |
||
|
78375
|
78375
78375-14010
Clamp, Choke Rod Flexible Tube
[08.1972 - 07.1977] TA12,14..ST |
78375-14010 |
— | ||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9165640618
|
9165640618
91656-40618
Bolt (For Rear Differential Breather Plug Oil Deflector)
|
91656-40618 |
— | ||
| replacement | |||||
|
9165640618
|
9165640618
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
from US $0.88 |
||
|
9538102015
|
9538102015
95381-02015 New Genuine Part |
95381-02015 |
US $1.60 |
||
