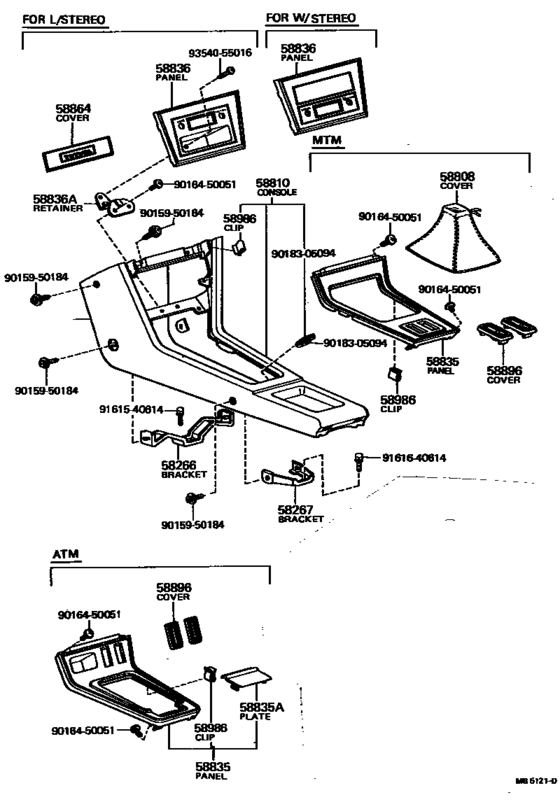

Console Box & Bracket ([10.1975 - ] (7510- )) Diagram Toyota CARINA
- Year
- 1975 - 1977
- Sales region
- Europe
- Frame
- TA14
- grade
- ST
- body
- 2DS
- ENGINE
- 2TB
- TRANSMISSION
- MTM
- Model
- CARINA
- From
- 10.1975
- To
- 07.1977
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Carina
- Driver's Position
- LHD
- Body
- SED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58266
|
58266
58266-14010
Bracket, Console Box Support, Front
[12.1970 - 07.1972] TA1# |
58266-14010 |
— | ||
|
58266
|
58266
58266-14011
Bracket, Console Box Support, Front
[08.1972 - 09.1975] TA1# |
58266-14011 |
— | ||
|
58266
|
58266
58851-14020
Bracket, Console Box Support, Front
[10.1975 - 07.1977] TA14 |
58851-14020 |
— | ||
|
58267
|
58267
58852-14010
Bracket, Console Box Support, Center
[10.1975 - 07.1977] TA14 |
58852-14010 |
— | ||
|
58808
|
58808
58808-14010
Cover Sub-Assy, Shifting Hole
[12.1970 - 07.1972] TA1#..4F |
58808-14010 |
— | ||
|
58808
|
58808
58808-14030
Cover Sub-Assy, Shifting Hole
[08.1972 - 09.1975] TA1#..MTM |
58808-14030 |
— | ||
|
58808
|
58808
58808-14050
Cover Sub-Assy, Shifting Hole
[10.1975 - 07.1977] TA14..MTM |
58808-14050 |
— | ||
|
58810
|
58810
58810-14010
Console Assy
[12.1970 - 07.1972] TA1#..4F |
58810-14010 |
— | ||
|
58810
|
58810
58810-14021-01
Console Assy
[01.1974 - 09.1975] TA1#..MTM BLACK W/HT.BST. L/CLOCK,BLACK,TRIM2# |
58810-14021-01 |
— | ||
|
58810
|
58810
58810-14021-06
Console Assy
[01.1974 - 09.1975] TA1#..MTM BROWN W/HT.BST. L/CLOCK,BROWN,TRIM0#,4# |
58810-14021-06 |
— | ||
|
58810
|
58810
58811-14050-01
Console Assy
[10.1975 - 07.1977] TA14 BLACK,BLACK,TRIM2# |
58811-14050-01 |
— | ||
|
58810
|
58810
58811-14050-06 Console Assy[10.1975 - 07.1977] TA14 BROWN,BROWN,TRIM0#,4# |
58811-14050-06 |
US $208.21 |
||
| replacement | |||||
|
58810
|
58810
58811-14050-16
Console Assy
[10.1975 - 07.1977] TA14 BROWN,BROWN,TRIM0#,4# |
58811-14050-16 |
— | ||
|
58835
|
58835
58826-14070
Panel, Console, Upper
[10.1975 - 07.1977] TA14..MTM..(DLX,ST) |
58826-14070 |
— | ||
|
58836
|
58836
58821-14020
Panel, Console, Upper Front
[10.1975 - 07.1977] TA14..DLX,ST |
58821-14020 |
— | ||
| replacement | |||||
|
58836
|
58836
58821-14010
Panel, Console, Upper Front
[10.1975 - 07.1977] TA14..DLX,ST |
58821-14010 |
— | ||
|
58836
|
58836
58821-14040
Panel, Console, Upper Front
[10.1975 - 07.1977] TA14..DLX,ST FOR STEREO |
58821-14040 |
— | ||
| replacement | |||||
|
58836
|
58836
58821-14030
Panel, Console, Upper Front
[10.1975 - 07.1977] TA14..DLX,ST FOR STEREO |
58821-14030 |
— | ||
|
58836A
|
58836A
58828-14010
Retainer(For Console Upper Front Panel)
[10.1975 - 07.1977] TA14 |
58828-14010 |
— | ||
|
58864
|
58864
55522-14010
Cover, Radio Tuner Opening
[10.1975 - 07.1977] TA14 |
55522-14010 |
— | ||
|
58896
|
58896
58896-14020 Cover, Switch Hole, No.2SWITCH HOLE, NO.2 [10.1975 - 07.1977] TA14..MTM |
58896-14020 |
US $9.03 |
||
|
58986
|
58986
58986-30010 Clip, Console, Finish PalteCONSOLE, FINISH PALTE [10.1975 - 07.1977] TA14 |
58986-30010 |
US $3.35 |
||
|
9015950184
|
9015950184
90159-50184 New Genuine Part |
90159-50184 |
US $1.60 |
||
|
9016450051
|
9016450051
90164-50051 New Genuine Part |
90164-50051 |
US $1.60 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.94 |
||
|
9161540614
|
9161540614
91615-40614 Screw Or Bolt(for Valve Rocker Shaft Lock) |
91615-40614 |
US $1.89 |
||
| replacement | |||||
|
9161540614
|
9161540614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9161640614
|
9161640614
91616-40614
Bolt(for Dust Cover To Steering Knuckle Arm Setting)
|
91616-40614 |
— | ||
| replacement | |||||
|
9161640614
|
9161640614
91611-G0612 Bolt |
91611-G0612 |
from US $0.78 |
||
|
9354055016
|
9354055016
93540-55016 SCREW |
93540-55016 |
US $1.12 |
||
