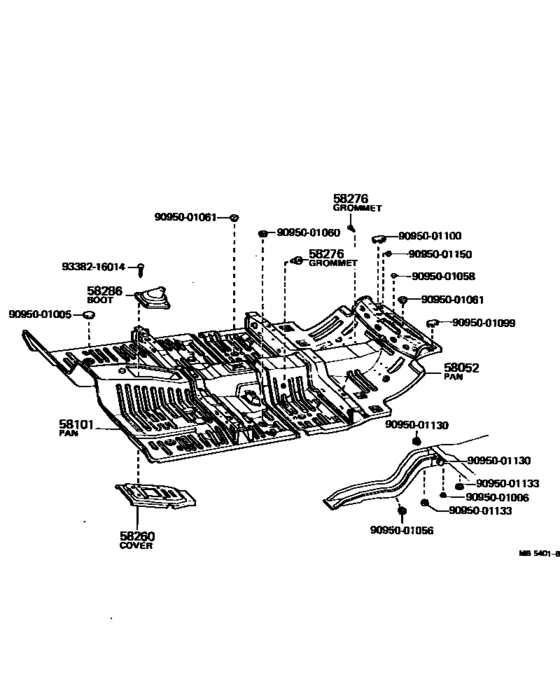

Floor Pan & Lower Back Panel ([10.1975 - 07.1977] (7510-7707)) Diagram Toyota CARINA
- Year
- 1975 - 1977
- Sales region
- Europe
- Frame
- TA14
- grade
- ST
- body
- 2DS
- ENGINE
- 2TB
- TRANSMISSION
- MTM
- Model
- CARINA
- From
- 10.1975
- To
- 07.1977
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Carina
- Driver's Position
- LHD
- Body
- SED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58052
|
58052
58202-14011
Pan Sub-Assy, Center Floor
[08.1972 - 01.1975] TA1# |
58202-14011 |
— | ||
|
58052
|
58052
58202-14030
Pan Sub-Assy, Center Floor
[01.1975 - 09.1975] TA1# |
58202-14030 |
— | ||
|
58052
|
58052
58202-14031
Pan Sub-Assy, Center Floor
[10.1975 - 07.1977] TA14 |
58202-14031 |
— | ||
|
58101
|
58101
58101-14011
Pan Sub-Assy, Front Floor
[08.1972 - 09.1975] TA1# |
58101-14011 |
— | ||
|
58101
|
58101
58101-14012
Pan Sub-Assy, Front Floor
[10.1975 - 07.1977] TA14 |
58101-14012 |
— | ||
|
58260
|
58260
58281-14021
Cover Assy, Transmission, Front
[08.1972 - 09.1975] TA1#..MTM |
58281-14021 |
— | ||
|
58260
|
58260
58281-14022
Cover Assy, Transmission, Front
[10.1975 - 07.1977] TA14..MTM |
58281-14022 |
— | ||
|
58276
|
58276
90950-01126 Grommet, Safety Band Anchorage Nut[12.1970 - 07.1977] TA1# OD=12 |
90950-01126 |
US $5.76 |
||
|
58286
|
58286
58280-14010
Boot, Shift & Select Lever, No.1
[10.1975 - 07.1977] TA14..MTM |
58280-14010 |
— | ||
|
58286
|
58286
58286-14010
Boot, Shift & Select Lever, No.1
[12.1970 - 09.1975] TA1#..MTM |
58286-14010 |
— | ||
|
9095001005
|
9095001005
90950-01005
PLUGHOLE
|
90950-01005 |
— | ||
| replacement | |||||
|
9095001005
|
9095001005
90950-01867 PLUG HOLE |
90950-01867 |
from US $2.71 |
||
|
9095001006
|
9095001006
90950-01006 Plug, Hole(For Front Fender) |
90950-01006 |
from US $2.16 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001058
|
9095001058
90950-01058
Plug, Hole(For Cowl Panel)
|
90950-01058 |
— | ||
|
9095001060
|
9095001060
90950-01060
Plug, Hole, No.1(For Dash Panel)
|
90950-01060 |
— | ||
| replacement | |||||
|
9095001060
|
9095001060
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9095001061
|
9095001061
90950-01061
Plug, Hole, No.3(For Dash Panel)
|
90950-01061 |
— | ||
| replacement | |||||
|
9095001061
|
9095001061
90950-01872 Plug, Hole, No.3(For Dash Panel) |
90950-01872 |
from US $2.29 |
||
|
9095001099
|
9095001099
90950-01099
New Genuine Part
|
90950-01099 |
— | ||
|
9095001100
|
9095001100
90950-01100
New Genuine Part
|
90950-01100 |
— | ||
|
9095001130
|
9095001130
90950-01130 Plug, Hole(For Rear Door Panel) |
90950-01130 |
US $5.24 |
||
| replacement | |||||
|
9095001130
|
9095001130
90950-01038 Plug, Hole(For Instrument Lower Panel) |
90950-01038 |
US $4.32 |
||
|
9095001133
|
9095001133
90950-01133 Plug, Hole(For Front Fender Apron) |
90950-01133 |
from US $2.42 |
||
|
9095001150
|
9095001150
90950-01150
Cover, Front Floor Hole
|
90950-01150 |
— | ||
| replacement | |||||
|
9095001150
|
9095001150
90950-01882 Cover, Hole |
90950-01882 |
from US $2.24 |
||
|
9338216014
|
9338216014
93382-16014 SCREW |
93382-16014 |
US $1.92 |
||
