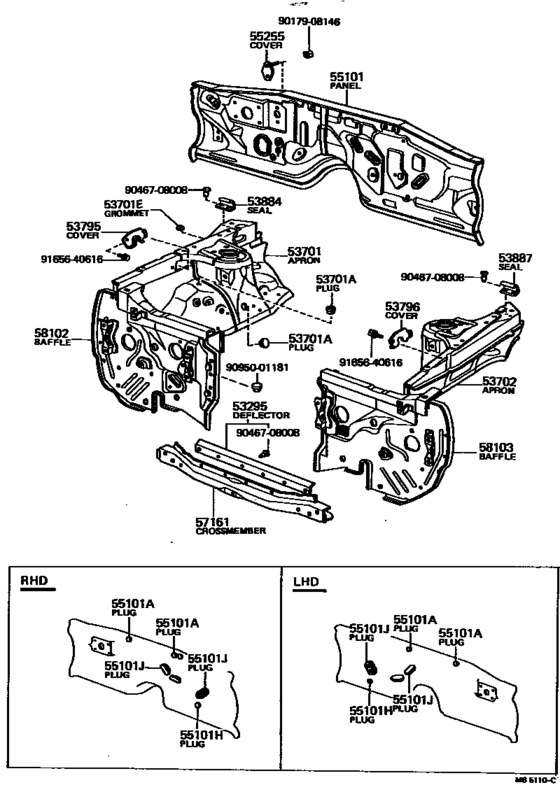

Front Fender Apron & Dash Panel ([10.1975 - 07.1977] (7510-7707)) Diagram Toyota CARINA
- Year
- 1975 - 1977
- Sales region
- Europe
- Frame
- TA14
- grade
- ST
- body
- 2DS
- ENGINE
- 2TB
- TRANSMISSION
- MTM
- Model
- CARINA
- From
- 10.1975
- To
- 07.1977
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Carina
- Driver's Position
- LHD
- Body
- SED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53295
|
53295
53295-14021
Deflector, Radiator Lower Air
[10.1975 - 04.1976] TA14 |
53295-14021 |
— | ||
|
53295
|
53295
53295-14901
Deflector, Radiator Lower Air
[01.1974 - 09.1975] TA1# |
53295-14901 |
— | ||
|
53701
|
53701
53701-14012 Apron Sub-Assy, Front Fender, RhFRONT FENDER, RH [10.1975 - 09.1976] TA14 |
53701-14012 |
US $398.94 |
||
| replacement | |||||
|
53701
|
53701
53701-14090
Apron Sub-Assy, Front Fender, Rh
[10.1975 - 09.1976] TA14 |
53701-14090 |
— | ||
|
53701
|
53701
53701-14020
Apron Sub-Assy, Front Fender, Rh
[12.1970 - 01.1974] TA1#..LHD |
53701-14020 |
— | ||
|
53701
|
53701
53701-14021 Apron Sub-Assy, Front Fender, RhFRONT FENDER, RH [01.1974 - 09.1975] TA1#..LHD |
53701-14021 |
US $502.32 |
||
| replacement | |||||
|
53701
|
53701
53701-14020
Apron Sub-Assy, Front Fender, Rh
[01.1974 - 09.1975] TA1#..LHD |
53701-14020 |
— | ||
|
53701
|
53701
53701-14090
Apron Sub-Assy, Front Fender, Rh
[09.1976 - 07.1977] TA14 |
53701-14090 |
— | ||
|
53701A
|
53701A
90950-01122
Plug, Hole(For Front Fender Apron)
[10.1975 - 07.1977] TA14 OD=25X30 |
90950-01122 |
— | ||
|
53701A
|
53701A
90950-01181 Plug, Hole(For Front Fender Apron)[09.1976 - 07.1977] TA14 FOR SQUAREID=8.5X8.5 |
90950-01181 |
US $3.52 |
||
|
53701E
|
53701E
90950-01133 Plug, Hole(For Front Fender Apron)[10.1975 - 06.1976] TA14 OD=13 |
90950-01133 |
from US $2.42 |
||
|
53702
|
53702
53702-14020 Apron Sub-Assy, Front Fender, LhFRONT FENDER, LH [12.1970 - 07.1972] TA1#..LHD |
53702-14020 |
US $398.94 |
||
| replacement | |||||
|
53702
|
53702
53702-14021
Apron Sub-Assy, Front Fender, Lh
[12.1970 - 07.1972] TA1#..LHD |
53702-14021 |
— | ||
|
53702
|
53702
53702-14021
Apron Sub-Assy, Front Fender, Lh
[08.1972 - 01.1974] TA1#..LHD |
53702-14021 |
— | ||
|
53702
|
53702
53702-14022
Apron Sub-Assy, Front Fender, Lh
[01.1974 - 09.1975] TA1#..LHD |
53702-14022 |
— | ||
|
53702
|
53702
53702-14101
Apron Sub-Assy, Front Fender, Lh
[10.1975 - 09.1976] TA14 |
53702-14101 |
— | ||
|
53702
|
53702
53702-14120
Apron Sub-Assy, Front Fender, Lh
[09.1976 - 07.1977] TA14 |
53702-14120 |
— | ||
|
53795
|
53795
53795-14010
Cover, Headlamp Wire Harness Hole, Rh
[10.1975 - 07.1977] TA14 |
53795-14010 |
— | ||
|
53796
|
53796
53796-14010
Cover, Headlamp Wire Harness Hole, Lh
[10.1975 - 07.1977] TA14 |
53796-14010 |
— | ||
|
53884
|
53884
53888-14011
Seal, Front Fender Splash Shield, Rh
[10.1975 - 07.1977] TA14 |
53888-14011 |
— | ||
|
53887
|
53887
53889-14011
Seal, Front Fender Splash Shield, Lh
[10.1975 - 07.1977] TA14 |
53889-14011 |
— | ||
|
55101
|
55101
55101-14020
Panel Sub-Assy, Dash
[12.1970 - 07.1972] TA1#..LHD |
55101-14020 |
— | ||
|
55101
|
55101
55101-14071
Panel Sub-Assy, Dash
[10.1975 - 07.1977] TA14..LHD |
55101-14071 |
— | ||
|
55101A
|
55101A
90950-01013 Plug, Hole, No.2(For Dash Panel)[10.1975 - 07.1977] TA14 OD=13 |
90950-01013 |
US $4.73 |
||
|
55101A
|
55101A
90950-01047 Plug, Hole, No.1(For Dash Panel)[12.1970 - 09.1975] TA1# L/HEATER OD=30X60 |
90950-01047 |
US $2.33 |
||
|
55101H
|
55101H
90950-01060
Plug, Hole, No.1(For Dash Panel)
[10.1975 - 07.1977] TA14 OD=25 |
90950-01060 |
— | ||
| replacement | |||||
|
55101H
|
55101H
90950-01866 Plug, Hole(For Front Door Panel)[10.1975 - 07.1977] TA14 OD=25 |
90950-01866 |
from US $1.92 |
||
|
55101H
|
55101H
90950-01105
Plug, Hole, No.2(For Dash Panel)
[12.1970 - 09.1975] TA1#..LHD OD=6 |
90950-01105 |
— | ||
|
55101J
|
55101J
90950-01189 Plug, Hole, No.3(For Dash Panel)[10.1975 - 07.1977] TA14 OD=34X74 |
90950-01189 |
US $3.79 |
||
|
57161
|
57161
57104-14010 Crossmember, FrontFRONT [12.1970 - 09.1975] TA1# |
57104-14010 |
US $317.41 |
||
|
57161
|
57161
57161-14902 Crossmember, FrontFRONT [10.1975 - 07.1977] TA14 |
57161-14902 |
US $165.98 |
||
| replacements | |||||
|
57161
|
57161
57113-14060 Extension, Front Side Member, RhFRONT SIDE MEMBER, RH [10.1975 - 07.1977] TA14 |
57113-14060 |
US $10.05 |
||
|
57161
|
57161
57165-14020 Reinforcement, Front Crossmember, Lower Rh[10.1975 - 07.1977] TA14 |
57165-14020 |
US $5.53 |
||
|
57161
|
57161
57161-14904
Crossmember, Front
[10.1975 - 07.1977] TA14 |
57161-14904 |
— | ||
|
58102
|
58102
53202-14010
Baffle Sub-Assy, Radiator Side, Rh
[10.1975 - 07.1977] TA14 |
53202-14010 |
— | ||
|
58102
|
58102
53203-14010
Baffle Sub-Assy, Radiator Side, Rh
[12.1970 - 07.1972] TA1# |
53203-14010 |
— | ||
|
58102
|
58102
53203-14011
Baffle Sub-Assy, Radiator Side, Rh
[08.1972 - 09.1975] TA1# |
53203-14011 |
— | ||
|
58103
|
58103
53203-14080
Baffle Sub-Assy,radiator Side, Lh
[10.1975 - 07.1977] TA14 |
53203-14080 |
— | ||
|
58103
|
58103
53204-14010
Baffle Sub-Assy,radiator Side, Lh
[12.1970 - 07.1972] TA1# |
53204-14010 |
— | ||
|
58103
|
58103
53204-14011
Baffle Sub-Assy,radiator Side, Lh
[08.1972 - 01.1974] TA1# |
53204-14011 |
— | ||
|
58103
|
58103
53204-14012
Baffle Sub-Assy,radiator Side, Lh
[01.1974 - 09.1975] TA1# |
53204-14012 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9046708008
|
9046708008
90467-08008 Clip, Step Plate Cover |
90467-08008 |
from US $2.51 |
||
|
9095001181
|
9095001181
90950-01181 Plug, Hole(For Front Fender Apron) |
90950-01181 |
US $3.52 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
