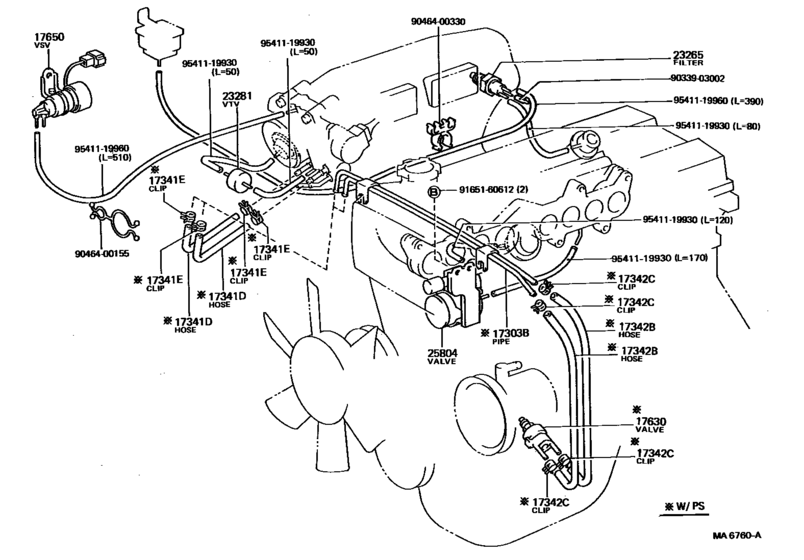

Vacuum Piping ([08.1983 - 07.1985] (8308-8507)4AGEU) Diagram Toyota CELICA
- Year
- 1983 - 1985
- Sales region
- Japan
- Frame
- AA63
- grade
- GT
- body
- LB
- ENGINE
- 4AGEU
- TRANSMISSION
- MTM
- From
- 08.1983
- To
- 07.1985
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-16020 Pipe Sub-Assy, Air, No.1[08.1983 - 07.1985] 4AGEU..AA63 W/PS |
17303-16020 |
US $58.24 |
||
|
17341D
|
17341D
17341-16030
Hose, No.1(For Idle-Up)
[08.1983 - 07.1985] 4AGEU..AA63 W/PS |
17341-16030 |
— | ||
|
17341E
|
17341E
96132-30400
Clip Or Clamp(For Ventilation Hose)
[02.1982 - 12.1985] 4AGEU..AA63 W/PS; 1GGEU..GA61 W/PS; 18RGEU..RA63 W/PS |
96132-30400 |
— | ||
| replacement | |||||
|
17341E
|
17341E
96132-51000 Clip Or Clamp(For Ventilation Hose)[02.1982 - 12.1985] 4AGEU..AA63 W/PS; 1GGEU..GA61 W/PS; 18RGEU..RA63 W/PS |
96132-51000 |
from US $1.62 |
||
|
17342B
|
17342B
17342-16020 Hose, No.2(For Idle-Up)[08.1983 - 09.1984] 4AGEU..AA63 W/PS |
17342-16020 |
US $28.39 |
||
|
17342B
|
17342B
17342-16040 Hose, No.2(For Idle-Up)[09.1984 - 07.1985] 4AGEU..AA63 W/PS |
17342-16040 |
US $16.02 |
||
|
17342C
|
17342C
96132-30400
Clip Or Clamp(For Ventilation Hose)
[02.1982 - 12.1985] 4AGEU..AA63 W/PS; 1GGEU..GA61 W/PS; 18RGEU..RA63 W/PS |
96132-30400 |
— | ||
| replacement | |||||
|
17342C
|
17342C
96132-51000 Clip Or Clamp(For Ventilation Hose)[02.1982 - 12.1985] 4AGEU..AA63 W/PS; 1GGEU..GA61 W/PS; 18RGEU..RA63 W/PS |
96132-51000 |
from US $1.62 |
||
|
17630
|
17630
17630-70010 Valve Assy, Air Control[05.1983 - 07.1985] 4AGEU..AA63 W/PS; 3TGTEU..TA63 W/PS |
17630-70010 |
US $202.38 |
||
|
17650
|
17650
89570-14191 Valve Assy, Vacuum Switching[08.1983 - 07.1985] 4AGEU..AA63 |
89570-14191 |
US $144.14 |
||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[08.1983 - 07.1985] 4AGEU..AA63 |
90917-11027 |
from US $23.71 |
||
|
23281
|
23281
90925-01014
Valve, Vacuum Transmitting, No.1
[07.1981 - 12.1985] 4AGEU..AA63; 5MGEU..MA61; 18RGEU..RA63; 3TGTEU,4TGTEU..TA63,64; 1SU..SA60..4FC |
90925-01014 |
— | ||
|
25804
|
25804
25804-16010
Valve Set, Vacuum Control
[08.1983 - 07.1985] 4AGEU..AA63 |
25804-16010 |
— | ||
|
9033903002
|
9033903002
90339-03002 PLUG |
90339-03002 |
US $2.88 |
||
|
9046400155
|
9046400155
90464-00155
New Genuine Part
|
90464-00155 |
— | ||
|
9046400330
|
9046400330
90464-00330
New Genuine Part
|
90464-00330 |
— | ||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.44 |
||
|
9541119930
|
9541119930
95411-19930
Hose(For Carburetor To Manifold)
|
95411-19930 |
— | ||
| replacement | |||||
|
9541119930
|
9541119930
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541119960
|
9541119960
95411-19960
Hose, Vacuum, No.2 (For Front Drive Shift)
|
95411-19960 |
— | ||
| replacement | |||||
|
9541119960
|
9541119960
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
