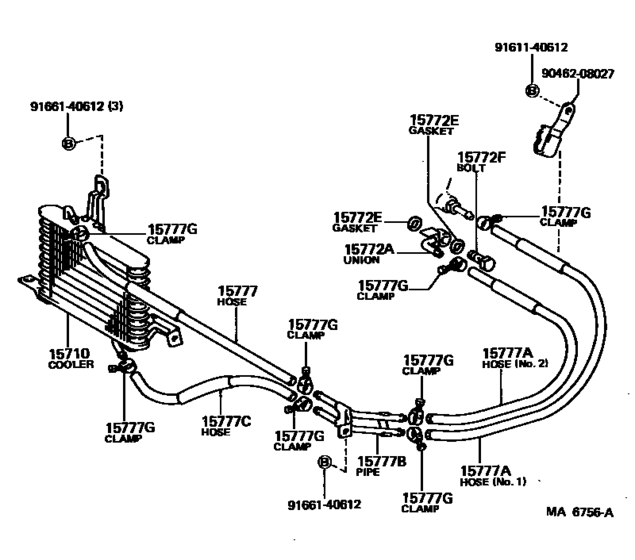

Engine Oil Cooler ([08.1983 - 07.1985] (8308-8507)4AGE..EUG) Diagram Toyota CELICA
- Year
- 1983 - 1985
- Sales region
- General
- Frame
- AA63
- grade
- GTS
- body
- LB
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- From
- 08.1983
- To
- 07.1985
- Gear Shift Type
- 5F
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- EUG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15710
|
15710
15710-14010
Cooler Assy, Oil
[08.1983 - 07.1985] 4AGE..AA63..EUG |
15710-14010 |
— | ||
|
15772A
|
15772A
90405-12004
Union(For Oil Pipe)
[08.1983 - 07.1985] 4AGE..AA63..EUG |
90405-12004 |
— | ||
|
15772E
|
15772E
90430-12009 Gasket(For Oil Pan Drain Plug)[08.1983 - 07.1985] 4AGE..AA63..EUG |
90430-12009 |
US $2.33 |
||
|
15772F
|
15772F
90401-12009 Bolt, Union, No.1[08.1983 - 07.1985] 4AGE..AA63..EUG |
90401-12009 |
US $4.16 |
||
|
15777
|
15777
15779-14010
Hose, Oil Cooler
[08.1983 - 07.1985] 4AGE..AA63..EUG |
15779-14010 |
— | ||
|
15777A
|
15777A
15776-16010 Hose, Oil CoolerOIL COOLER [08.1983 - 07.1985] 4AGE..AA63..EUG NO.2 |
15776-16010 |
US $106.29 |
||
|
15777A
|
15777A
15777-16020
Hose, Oil Cooler
[08.1983 - 07.1985] 4AGE..AA63..EUG NO.1 |
15777-16020 |
— | ||
|
15777B
|
15777B
15767-16010
Pipe, Oil Cooler
[08.1983 - 07.1985] 4AGE..AA63..EUG |
15767-16010 |
— | ||
|
15777C
|
15777C
15778-14010
Hose, Oil Cooler
[08.1983 - 07.1985] 4AGE..AA63..EUG |
15778-14010 |
— | ||
|
15777G
|
15777G
90460-01001 Clamp, Oil Cooler Hose[08.1983 - 07.1985] 4AGE..AA63..EUG |
90460-01001 |
US $9.28 |
||
|
9046208027
|
9046208027
90462-08027 New Genuine Part |
90462-08027 |
US $5.53 |
||
|
9161140612
|
9161140612
91611-40612
Bolt(for Dust Cover To Steering Knuckle Arm Setting)
|
91611-40612 |
— | ||
| replacement | |||||
|
9161140612
|
9161140612
91611-G0612 Bolt |
91611-G0612 |
from US $0.82 |
||
|
9166140612
|
9166140612
91661-40612 New Genuine Part |
91661-40612 |
US $2.08 |
||
