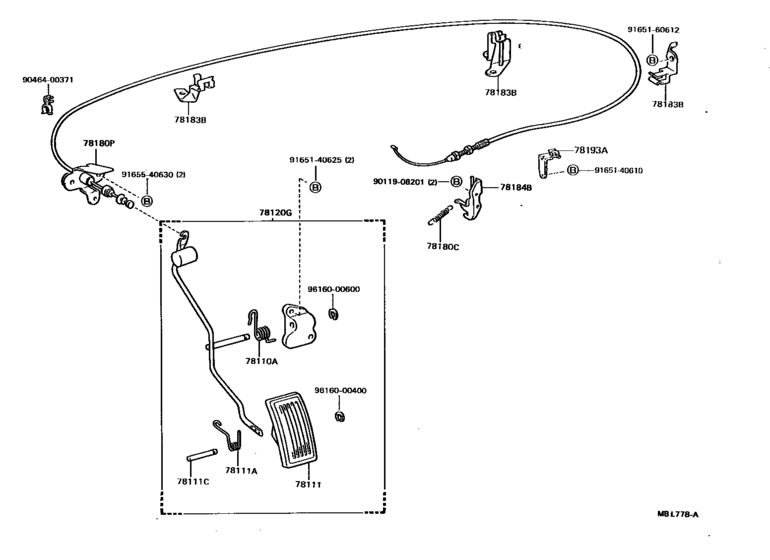

Accelerator Link ([08.1987 - ] (8708- )AT160..LHD..TWC) Diagram Toyota CELICA
- Year
- 1987 - 1989
- Sales region
- General
- Frame
- AT160
- grade
- GT
- body
- LB
- ENGINE
- 4AGEL
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 5F
- Driver's Position
- LHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78110A
|
78110A
90508-26062 Spring (For Accelerator Pedal Rod)[08.1987 - 08.1989] AT160,ST162..LHD..5F |
90508-26062 |
US $3.20 |
||
|
78111
|
78111
78111-20030
Pedal, Accelerator
[08.1987 - 08.1989] AT160,ST162 |
78111-20030 |
— | ||
|
78111A
|
78111A
90508-18050
Spring (For Accelerator Pedal Rod)
[08.1987 - 08.1989] ST162..4FC..ME;AT160,ST162..5F |
90508-18050 |
— | ||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[08.1987 - 08.1989] AT160,ST162 |
90249-05001 |
US $3.32 |
||
|
78120G
|
78120G
78120-20280 Rod Assy, Accelerator PedalACCELERATOR PEDAL [08.1987 - 08.1989] AT160,ST162..LHD..5F |
78120-20280 |
US $41.79 |
||
|
78180C
|
78180C
90507-10016
Spring, Tension (For Accelerator Wire)
[08.1987 - 08.1989] AT160..TWC |
90507-10016 |
— | ||
|
78180P
|
78180P
78180-20580 Wire Assy, AcceleratorACCELERATOR [08.1987 - 08.1989] AT160..LHD..TWC |
78180-20580 |
US $54.31 |
||
|
78183B
|
78183B
78183-12070 Clamp, Accelerator Control CableACCELERATOR CONTROL CABLE [08.1987 - 08.1989] AT160..LHD..TWC HEAD COVER LH |
78183-12070 |
US $11.79 |
||
|
78183B
|
78183B
78183-12080 Clamp, Accelerator Control Cable[08.1987 - 08.1989] AT160..TWC SURGE TANK |
78183-12080 |
US $11.65 |
||
|
78183B
|
78183B
78183-12090 Clamp, Accelerator Control CableACCELERATOR CONTROL CABLE [08.1987 - 08.1989] AT160..LHD..TWC HEAD COVER RH |
78183-12090 |
US $17.33 |
||
|
78184B
|
78184B
78184-12220 Bracket, Accelerator Control Cable[08.1987 - 08.1989] AT160..TWC |
78184-12220 |
US $15.58 |
||
|
9011908201
|
9011908201
90119-08201
Bolt (for Transmission Control Cable Bracket)
|
90119-08201 |
— | ||
| replacements | |||||
|
9011908201
|
9011908201
91611-60814 Bolt |
91611-60814 |
from US $0.88 |
||
|
9011908201
|
9011908201
90119-A0310 Bolt (For Transmission Control Cable Bracket) |
90119-A0310 |
US $1.95 |
||
|
9046400371
|
9046400371
90464-00371 New Genuine Part |
90464-00371 |
US $4.37 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.56 |
||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.12 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.44 |
||
|
9165540630
|
9165540630
91655-40630 New Genuine Part |
91655-40630 |
US $1.89 |
||
| replacement | |||||
|
9165540630
|
9165540630
91652-60630 New Genuine Part |
91652-60630 |
US $1.60 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
