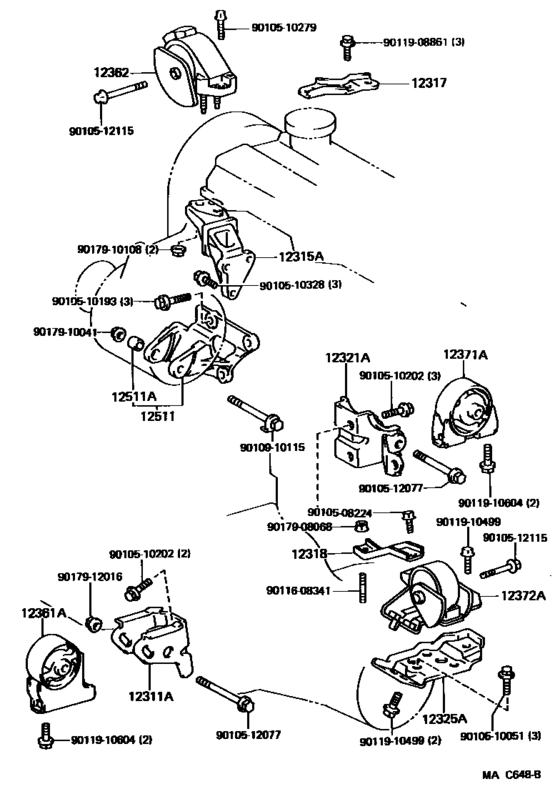

Mounting ([09.1989 - ] (8909- )4AFE..ATM) Diagram Toyota CELICA
- Year
- 1989 - 1993
- Sales region
- Europe
- Frame
- AT180
- grade
- ST
- body
- CP
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 09.1989
- To
- 09.1993
- Body Shape
- NOB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311A
|
12311A
12311-16080 Bracket, Engine Mounting, Front(For Transverse Engine)ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) [09.1989 - 09.1993] 4AFE..AT180 |
12311-16080 |
US $30.87 |
||
|
12315A
|
12315A
12315-15070
Bracket, Engine Mounting, Rh(For Transverse Engine)
[09.1989 - 09.1993] 4AFE..AT180 |
12315-15070 |
— | ||
|
12317
|
12317
12317-15020 Stay, Engine Mounting, Rh[09.1989 - 12.1989] 4AFE..AT180 |
12317-15020 |
US $19.36 |
||
|
12317
|
12317
12317-16040
Stay, Engine Mounting, Rh
[12.1989 - 09.1993] 4AFE..AT180 |
12317-16040 |
— | ||
|
12318
|
12318
12318-16090 Stay, Engine Mounting, LhENGINE MOUNTING, LH [09.1989 - 09.1993] 4AFE..AT180..ATM |
12318-16090 |
US $30.87 |
||
|
12321A
|
12321A
12321-16170 Bracket, Engine Mounting, Rear(For Transverse Engine)ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) [09.1989 - 09.1993] 4AFE..AT180..ATM |
12321-16170 |
US $30.87 |
||
|
12325A
|
12325A
12325-16110 Bracket, Engine Mounting, Lh(For Transverse Engine)ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) [09.1989 - 09.1993] 4AFE..AT180..ATM |
12325-16110 |
US $40.91 |
||
|
12361A
|
12361A
12361-16180
Insulator, Engine Mounting, Front(For Transverse Engine)
[09.1989 - 09.1993] 4AFE..AT180..ATM |
12361-16180 |
— | ||
|
12362
|
12362
12362-16180
Insulator, Engine Mounting, Rh(For Transverse Engine)
[09.1989 - 12.1989] 4AFE..AT180 |
12362-16180 |
— | ||
| replacements | |||||
|
12362
|
12362
12317-15020 Stay, Engine Mounting, Rh[09.1989 - 12.1989] 4AFE..AT180 |
12317-15020 |
US $19.36 |
||
|
12362
|
12362
12317-16040
Stay, Engine Mounting, Rh
[09.1989 - 12.1989] 4AFE..AT180 |
12317-16040 |
— | ||
|
12362
|
12362
12362-16181
Insulator, Engine Mounting, Rh(For Transverse Engine)
[09.1989 - 12.1989] 4AFE..AT180 |
12362-16181 |
— | ||
|
12362
|
12362
12362-16181
Insulator, Engine Mounting, Rh(For Transverse Engine)
[12.1989 - 09.1993] 4AFE..AT180 |
12362-16181 |
— | ||
|
12371A
|
12371A
12371-16180
Insulator, Engine Mounting, Rear
[09.1989 - 09.1993] 4AFE..AT180..ATM |
12371-16180 |
— | ||
|
12372A
|
12372A
12372-16190
Insulator, Engine Mounting, Lh(For Transverse Engine)
[09.1989 - 09.1993] 4AFE..AT180..ATM |
12372-16190 |
— | ||
|
12511
|
12511
12511-15040 Bracket, Alternator, No.1[09.1989 - 09.1993] 4AFE..AT180 |
12511-15040 |
US $80.08 |
||
|
12511A
|
12511A
90387-10013 Bush, Alternator Bracket[09.1989 - 09.1993] 4AFE..AT180 |
90387-10013 |
US $4.22 |
||
|
9010508224
|
9010508224
90105-08224 Bolt (For Rear Differential Carrier) |
90105-08224 |
US $2.18 |
||
| replacement | |||||
|
9010508224
|
9010508224
90105-08328 Bolt |
90105-08328 |
US $1.76 |
||
|
9010510051
|
9010510051
90105-10051
Bolt (For Drive Shaft Bearing Bracket Setting No.1)
|
90105-10051 |
— | ||
| replacement | |||||
|
9010510051
|
9010510051
91512-81022 Bolt (For Drive Shaft Bearing Bracket Setting No.1) |
91512-81022 |
US $2.56 |
||
|
9010510193
|
9010510193
90105-10193
Bolt(For Torque Arm Setting)
|
90105-10193 |
— | ||
| replacement | |||||
|
9010510193
|
9010510193
91512-81025 Bolt(For Torque Arm Setting) |
91512-81025 |
from US $1.60 |
||
|
9010510202
|
9010510202
90105-10202
Bolt (For Front Differential Carrier Cover Setting)
|
90105-10202 |
— | ||
| replacement | |||||
|
9010510202
|
9010510202
90105-10361 Bolt (For Rear Differential Carrier Cover Setting) |
90105-10361 |
from US $1.01 |
||
|
9010510279
|
9010510279
90105-10279 New Genuine Part |
90105-10279 |
US $2.48 |
||
|
9010510328
|
9010510328
90105-10328 Bolt (For Rear Differential Carrier Cover Setting) |
90105-10328 |
US $2.04 |
||
|
9010512077
|
9010512077
90105-12077 New Genuine Part |
90105-12077 |
US $4.66 |
||
|
9010512115
|
9010512115
90105-12115
New Genuine Part
|
90105-12115 |
— | ||
|
9010910115
|
9010910115
90109-10115 New Genuine Part |
90109-10115 |
US $5.39 |
||
|
9011608341
|
9011608341
90116-08341 New Genuine Part |
90116-08341 |
US $4.08 |
||
|
9011908861
|
9011908861
90119-08861
New Genuine Part
|
90119-08861 |
— | ||
| replacement | |||||
|
9011908861
|
9011908861
90119-08A12 New Genuine Part |
90119-08A12 |
US $1.28 |
||
|
9011910499
|
9011910499
90119-10499 BOLT WWASHER |
90119-10499 |
US $3.20 |
||
|
9011910604
|
9011910604
90119-10604 New Genuine Part |
90119-10604 |
US $3.20 |
||
|
9017908068
|
9017908068
90179-08068 NUT |
90179-08068 |
US $1.60 |
||
|
9017910041
|
9017910041
90179-10041 Nut(For Backing Plate To Rear Axle Housing Setting) |
90179-10041 |
US $2.08 |
||
|
9017910108
|
9017910108
90179-10108 NUT |
90179-10108 |
US $2.40 |
||
|
9017912016
|
9017912016
90179-12016 NUT |
90179-12016 |
US $2.24 |
||
