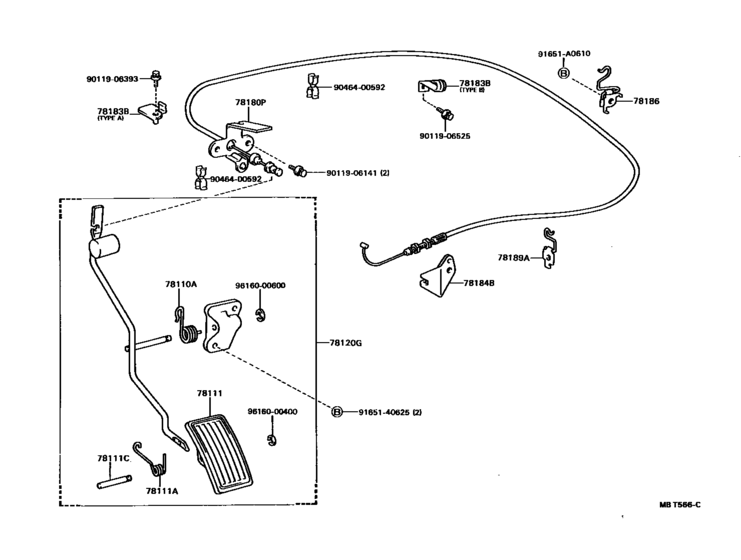

Accelerator Link ([11.1989 - ] (8911- )AT180..LHD) Diagram Toyota CELICA
- Year
- 1989 - 1993
- Sales region
- General
- Frame
- AT180
- body
- LB
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 11.1989
- To
- 11.1993
- Body Shape
- NOB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78110A
|
78110A
90508-26062 Spring (For Accelerator Pedal Rod)[11.1989 - 11.1993] AT180..LHD |
90508-26062 |
US $3.20 |
||
|
78111
|
78111
78111-20030
Pedal, Accelerator
[10.1989 - 11.1993] AT180,ST18# |
78111-20030 |
— | ||
|
78111A
|
78111A
90508-18050
Spring (For Accelerator Pedal Rod)
[10.1989 - 11.1993] AT180,ST18#..MTM |
90508-18050 |
— | ||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[10.1989 - 11.1993] AT180,ST18# |
90249-05001 |
US $3.32 |
||
|
78120G
|
78120G
78120-20420 Rod Assy, Accelerator PedalACCELERATOR PEDAL [11.1989 - 11.1993] AT180..LHD |
78120-20420 |
US $40.77 |
||
|
78180P
|
78180P
78180-2B470
Cable Assy, Accelerator Control
[11.1989 - 11.1993] AT180..LHD |
78180-2B470 |
— | ||
|
78183B
|
78183B
78183-20040 Clamp, Accelerator Control CableACCELERATOR CONTROL CABLE [11.1989 - 12.1989] AT180..LHD TYPE A |
78183-20040 |
US $11.65 |
||
|
78183B
|
78183B
78183-20140 Clamp, Accelerator Control CableACCELERATOR CONTROL CABLE [11.1989 - 11.1993] AT180..LHD TYPE B |
78183-20140 |
US $5.24 |
||
|
78184B
|
78184B
78184-12260 Bracket, Accelerator Control Cable[11.1989 - 11.1993] AT180 |
78184-12260 |
US $10.05 |
||
|
78186
|
78186
78186-20130 Support, Accelerator Control Cable, No.1ACCELERATOR CONTROL CABLE, NO.1 [11.1989 - 11.1993] AT180..LHD |
78186-20130 |
US $4.08 |
||
|
78189A
|
78189A
78186-12260 Support, Accelerator Control Cable, No.1[11.1989 - 11.1993] AT180 |
78186-12260 |
US $3.64 |
||
|
91651A0610
|
91651A0610
91651-A0610 BOLT WWASHER |
91651-A0610 |
US $1.60 |
||
|
9011906141
|
9011906141
90119-06141
New Genuine Part
|
90119-06141 |
— | ||
| replacement | |||||
|
9011906141
|
9011906141
91651-40628 New Genuine Part |
91651-40628 |
US $0.61 |
||
|
9011906393
|
9011906393
90119-06393 Bolt(For Suspension Control Oil Cooler) |
90119-06393 |
from US $1.28 |
||
|
9011906525
|
9011906525
90119-06525
New Genuine Part
|
90119-06525 |
— | ||
| replacement | |||||
|
9011906525
|
9011906525
90119-06311 BOLT |
90119-06311 |
US $1.60 |
||
|
9046400592
|
9046400592
90464-00592
Clamp, Throttle Cable, No.3
|
90464-00592 |
— | ||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.12 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
