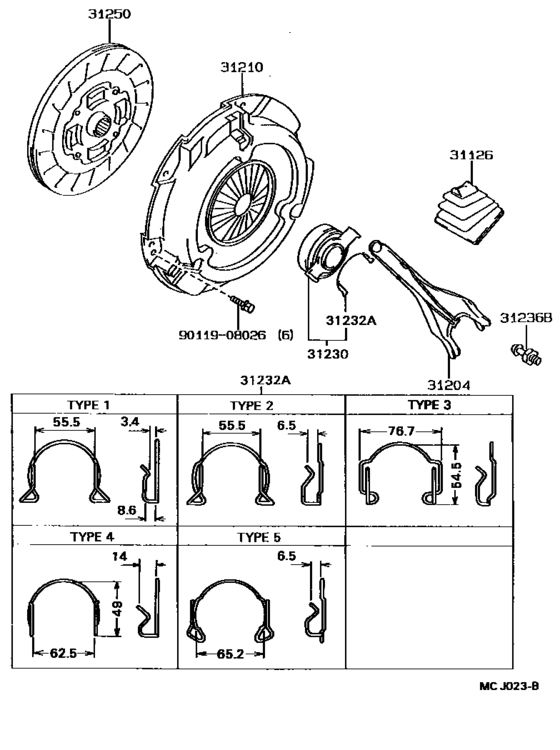

Clutch & Release Fork ([11.1989 - ] C52 (8911- )AT180) Diagram Toyota CELICA
- Year
- 1989 - 1993
- Sales region
- General
- Frame
- AT180
- body
- LB
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 11.1989
- To
- 11.1993
- Body Shape
- NOB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-12051 Boot, Clutch Release Fork[11.1989 - 08.1993] AT180 |
31126-12051 |
from US $10.08 |
||
|
31204
|
31204
31204-12050 Fork Sub-Assy, Clutch Release[11.1989 - 05.1991] AT180 |
31204-12050 |
from US $39.98 |
||
|
31204
|
31204
31204-17010 Fork Sub-Assy, Clutch Release[05.1991 - 08.1993] AT180 |
31204-17010 |
from US $44.23 |
||
|
31210
|
31210
31210-12141 Cover Assy, Clutch[11.1989 - 04.1991] AT180 |
31210-12141 |
US $179.09 |
||
| replacement | |||||
|
31210
|
31210
31210-52071
Cover Assy, Clutch
[11.1989 - 04.1991] AT180 |
31210-52071 |
— | ||
|
31210
|
31210
31210-12190
Cover Assy, Clutch
[04.1991 - 08.1991] AT180 |
31210-12190 |
— | ||
| replacement | |||||
|
31210
|
31210
31210-52071
Cover Assy, Clutch
[04.1991 - 08.1991] AT180 |
31210-52071 |
— | ||
|
31210
|
31210
31210-20290 Cover Assy, ClutchCLUTCH [08.1991 - 11.1993] AT180 |
31210-20290 |
US $179.09 |
||
| replacement | |||||
|
31210
|
31210
31210-52053 Cover Assy, Clutch[08.1991 - 11.1993] AT180 |
31210-52053 |
from US $137.10 |
||
|
31230
|
31230
31230-12140
Bearing Assy, Clutch Release
[11.1989 - 05.1991] AT180 |
31230-12140 |
— | ||
| replacement | |||||
|
31230
|
31230
31230-16061 Bearing Assy, Clutch Release[11.1989 - 05.1991] AT180 |
31230-16061 |
US $67.94 |
||
|
31230
|
31230
31230-12170
Bearing Assy, Clutch Release
[05.1991 - 08.1993] AT180 |
31230-12170 |
— | ||
| replacement | |||||
|
31230
|
31230
31230-12191 Bearing Assy, Clutch Release[05.1991 - 08.1993] AT180 |
31230-12191 |
from US $37.65 |
||
|
31232A
|
31232A
31232-12040
Clip, Release Bearing Hub
[11.1989 - 05.1991] AT180 TYPE 1 |
31232-12040 |
— | ||
|
31232A
|
31232A
31232-12050
Clip, Release Bearing Hub
[05.1991 - 08.1991] AT180 TYPE 3 |
31232-12050 |
— | ||
|
31232A
|
31232A
31232-12060
Clip, Release Bearing Hub
[05.1991 - 08.1991] AT180 TYPE 4 |
31232-12060 |
— | ||
|
31232A
|
31232A
31232-12070 Clip, Release Bearing Hub[05.1991 - 08.1991] AT180 TYPE 5 |
31232-12070 |
US $3.20 |
||
|
31232A
|
31232A
31232-16031
Clip, Release Bearing Hub
[11.1989 - 05.1991] AT180 TYPE 2 |
31232-16031 |
— | ||
|
31236B
|
31236B
31236-12011 Ball, Release Fork[11.1989 - 05.1991] AT180 |
31236-12011 |
from US $11.36 |
||
|
31236B
|
31236B
31236-12020 Support, Release Fork[05.1991 - 08.1993] AT180 |
31236-12020 |
US $8.16 |
||
|
31250
|
31250
31250-12155 Disc Assy, Clutch[11.1989 - 06.1990] AT180 |
31250-12155 |
US $151.42 |
||
| replacement | |||||
|
31250
|
31250
31250-12570 Disc Assy, Clutch[11.1989 - 06.1990] AT180 |
31250-12570 |
from US $146.88 |
||
|
31250
|
31250
31250-12156 Disc Assy, Clutch[06.1990 - 04.1991] AT180 |
31250-12156 |
US $151.42 |
||
| replacement | |||||
|
31250
|
31250
31250-12570 Disc Assy, Clutch[06.1990 - 04.1991] AT180 |
31250-12570 |
from US $146.88 |
||
|
31250
|
31250
31250-12310
Disc Assy, Clutch
[04.1991 - 11.1993] AT180 |
31250-12310 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-12570 Disc Assy, Clutch[04.1991 - 11.1993] AT180 |
31250-12570 |
from US $146.88 |
||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
