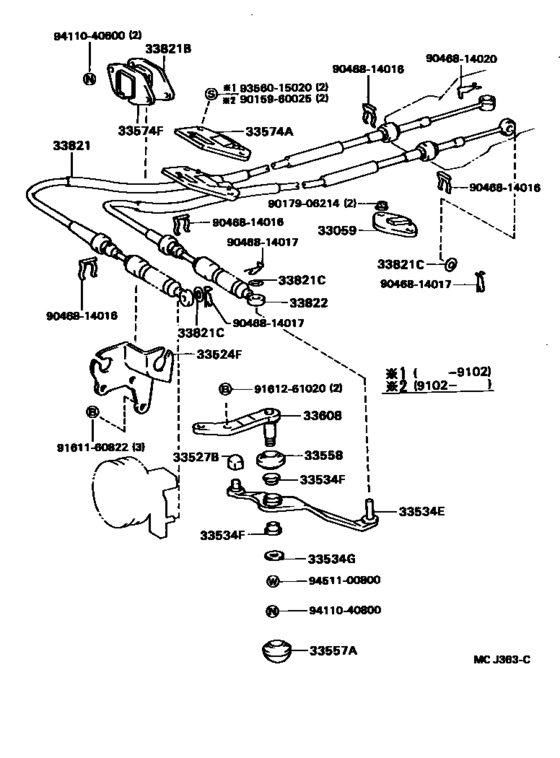

Shift Lever & Retainer ([11.1989 - ] C52 (8911- )AT180) Diagram Toyota CELICA
- Year
- 1989 - 1993
- Sales region
- General
- Frame
- AT180
- body
- LB
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 11.1989
- To
- 11.1993
- Body Shape
- NOB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33059
|
33059
33059-20020 Retainer Sub-Assy, Dust Seal[10.1989 - 11.1993] AT180,ST182,184..MTM |
33059-20020 |
US $12.81 |
||
|
33524F
|
33524F
33524-12010 Bracket, Control Lever Housing Support (For Floor Shift)[11.1989 - 08.1990] AT180 |
33524-12010 |
US $13.69 |
||
|
33524F
|
33524F
33524-12011 Bracket, Control Lever Housing Support (For Floor Shift)[08.1990 - 08.1993] AT180 |
33524-12011 |
US $74 |
||
|
33527B
|
33527B
90389-10009 Bush (For Shift & Select Lever)[10.1989 - 05.1992] AT180,ST18#..MTM |
90389-10009 |
from US $9.92 |
||
|
33534E
|
33534E
33534-10030 Crank, Selecting Bell, No.2[11.1989 - 08.1990] AT180 |
33534-10030 |
US $43.68 |
||
|
33534E
|
33534E
33534-16050 Crank, Selecting Bell, No.2[08.1990 - 08.1993] AT180 |
33534-16050 |
US $41.20 |
||
|
33534F
|
33534F
90386-12022 Bush (For Selecting Bellcrank No.1)[10.1989 - 08.1993] AT180,ST18#..MTM |
90386-12022 |
from US $2.08 |
||
|
33534G
|
33534G
90201-08028 Washer, Plate (For Selecting Bellcrank No.2)[10.1989 - 08.1993] AT180,ST18#..MTM |
90201-08028 |
US $0.96 |
||
|
33557A
|
33557A
33557-32010 Cover, Selecting Bellcrank Dust, No.1[10.1989 - 08.1993] AT180,ST18#..MTM |
33557-32010 |
from US $4.48 |
||
|
33558
|
33558
33558-10030 Cover, Selecting Bellcrank Dust, No.2[11.1989 - 08.1993] AT180 |
33558-10030 |
from US $3.68 |
||
|
33574A
|
33574A
33574-20320
Retainer, Shift Cable Grommet, No.1
[10.1989 - 08.1990] AT180,ST182,184..MTM |
33574-20320 |
— | ||
| replacements | |||||
|
33574A
|
33574A
33574-20321 Retainer, Shift Cable Grommet, No.1[10.1989 - 08.1990] AT180,ST182,184..MTM |
33574-20321 |
US $10.19 |
||
|
33574A
|
33574A
90159-60025 SCREW W-WASHER[10.1989 - 08.1990] AT180,ST182,184..MTM |
90159-60025 |
US $3.20 |
||
|
33574A
|
33574A
33574-20321 Retainer, Shift Cable Grommet, No.1[03.1991 - 08.1991] AT180,ST182,184..MTM |
33574-20321 |
US $10.19 |
||
|
33574F
|
33574F
33574-20340 Retainer, Dust Seal (For Floor Shift)[10.1989 - 11.1993] AT180,ST18# |
33574-20340 |
US $6.70 |
||
|
33608
|
33608
33608-12021 Support Sub-Assy, Selecting Bellcrank[11.1989 - 08.1990] AT180 |
33608-12021 |
US $12.52 |
||
|
33608
|
33608
33608-16020 Support Sub-Assy, Selecting Bellcrank[08.1990 - 08.1993] AT180 |
33608-16020 |
US $12.81 |
||
|
33821
|
33821
33821-20671 Cable Transmission Control Shift (For Floor Shift)[11.1989 - 08.1991] AT180 |
33821-20671 |
US $206.75 |
||
|
33821
|
33821
33821-20890
Cable Transmission Control Shift (For Floor Shift)
[08.1991 - 11.1993] AT180 |
33821-20890 |
— | ||
|
33821B
|
33821B
90480-01538
Grommet, No.2 (For Transmission Control Cable)
[10.1989 - 11.1993] AT180,ST18#..MTM |
90480-01538 |
— | ||
|
33821C
|
33821C
90201-08077 Washer, Plate (For Transmission Control Cable)[09.1990 - 11.1993] AT180,ST18#..MTM OD=30,TRANSAXLE SIDE,OD=30 |
90201-08077 |
from US $1.74 |
||
|
33821C
|
33821C
90201-08267 Washer, Plate (For Transfer Control Cable)[10.1989 - 09.1990] AT180,ST18#..MTM OD=28,TRANSAXLE SIDE |
90201-08267 |
from US $0.92 |
||
|
33821C
|
33821C
90201-10113 Washer, Plate (For Transmission Control Cable)[10.1989 - 11.1993] AT180,ST18#..MTM OD=18,SHIFT LEVER SIDE |
90201-10113 |
US $1.31 |
||
|
33822
|
33822
33822-20241 Cable Transmission Control Select (For Floor Shift)[11.1989 - 08.1991] AT180 |
33822-20241 |
US $206.75 |
||
|
33822
|
33822
33822-20410
Cable Transmission Control Select (For Floor Shift)
[08.1991 - 11.1993] AT180 |
33822-20410 |
— | ||
|
9015960025
|
9015960025
90159-60025 SCREW W-WASHER |
90159-60025 |
US $3.20 |
||
|
9017906214
|
9017906214
90179-06214 NUT |
90179-06214 |
from US $0.96 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9046814017
|
9046814017
90468-14017 Clip, No.2(For Parking Brake) |
90468-14017 |
from US $0.94 |
||
|
9046814020
|
9046814020
90468-14020 New Genuine Part |
90468-14020 |
US $2.48 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.50 |
||
|
9161261020
|
9161261020
91612-61020
Bolt (For Transfer Case)Cover No.2
|
91612-61020 |
— | ||
| replacement | |||||
|
9161261020
|
9161261020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9356015020
|
9356015020
93560-15020 SCREW |
93560-15020 |
from US $0.52 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.70 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
