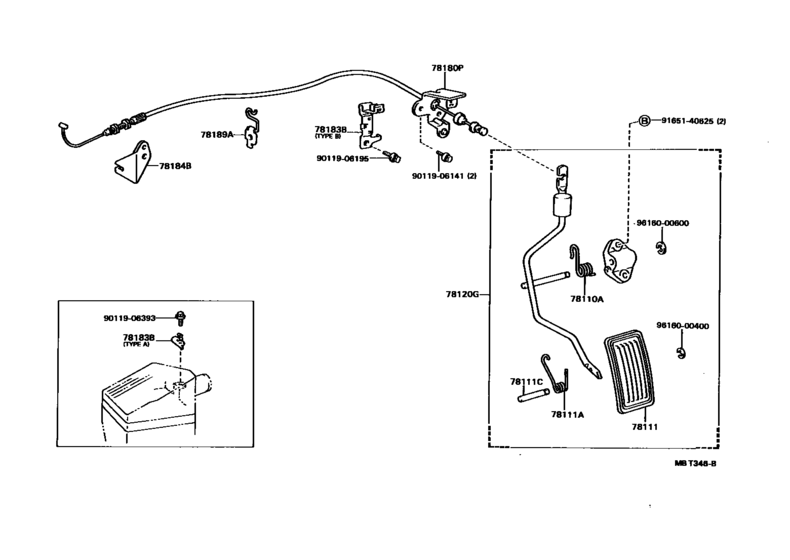

Accelerator Link ([11.1989 - ] (8911- )AT180..RHD) Diagram Toyota CELICA
- Year
- 1989 - 1993
- Sales region
- General
- Frame
- AT180
- body
- LB
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 11.1989
- To
- 11.1993
- Body Shape
- NOB
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78110A
|
78110A
90508-26054 Spring, Torsion (For Accelerator Link)[10.1989 - 11.1993] ST182;AT180,ST184,185..RHD..MTM |
90508-26054 |
US $6.99 |
||
|
78111
|
78111
78111-20030
Pedal, Accelerator
[10.1989 - 11.1993] AT180,ST18# |
78111-20030 |
— | ||
|
78111A
|
78111A
90508-18050
Spring (For Accelerator Pedal Rod)
[10.1989 - 11.1993] AT180,ST18#..MTM |
90508-18050 |
— | ||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[10.1989 - 11.1993] AT180,ST18# |
90249-05001 |
US $3.32 |
||
|
78120G
|
78120G
78120-20440 Rod Assy, Accelerator Pedal[10.1989 - 11.1993] AT180,ST184..RHD..MTM |
78120-20440 |
US $40.77 |
||
|
78180P
|
78180P
78180-2B450 Cable Assy, Accelerator ControlACCELERATOR CONTROL [11.1989 - 11.1993] AT180..RHD |
78180-2B450 |
US $52.71 |
||
|
78183B
|
78183B
78183-20040 Clamp, Accelerator Control CableACCELERATOR CONTROL CABLE [12.1989 - 11.1993] AT180 TYPE A |
78183-20040 |
US $11.65 |
||
|
78183B
|
78183B
78183-20130 Clamp, Accelerator Control Cable[10.1989 - 12.1989] AT180,ST184,185..RHD |
78183-20130 |
US $12.23 |
||
|
78184B
|
78184B
78184-12260 Bracket, Accelerator Control Cable[11.1989 - 11.1993] AT180 |
78184-12260 |
US $10.05 |
||
|
78189A
|
78189A
78186-12260 Support, Accelerator Control Cable, No.1[11.1989 - 11.1993] AT180 |
78186-12260 |
US $3.64 |
||
|
9011906141
|
9011906141
90119-06141
New Genuine Part
|
90119-06141 |
— | ||
| replacement | |||||
|
9011906141
|
9011906141
91651-40628 New Genuine Part |
91651-40628 |
US $0.61 |
||
|
9011906195
|
9011906195
90119-06195 New Genuine Part |
90119-06195 |
US $1.92 |
||
|
9011906393
|
9011906393
90119-06393 Bolt(For Suspension Control Oil Cooler) |
90119-06393 |
from US $1.28 |
||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.12 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
