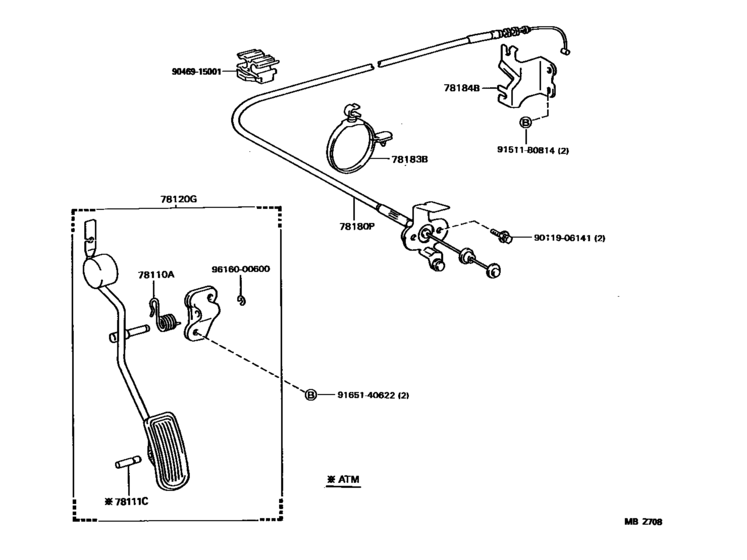

Accelerator Link ([08.1995 - ] (9508- )AT200) Diagram Toyota CELICA
- Year
- 1993 - 1997
- Sales region
- Europe
- Frame
- AT200
- grade
- ST
- body
- LB
- ENGINE
- 7AFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 09.1993
- To
- 12.1997
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78110A
|
78110A
90959-03039
Spring (For Accelerator Pedal Rod)
[09.1993 -] AT200,ST204..MTM |
90959-03039 |
— | ||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[09.1993 - 08.1995] AT200,ST204 |
90249-05001 |
US $3.32 |
||
|
78120G
|
78120G
78120-20610 Rod Assy, Accelerator PedalACCELERATOR PEDAL [09.1993 - 08.1995] AT200,ST204..MTM |
78120-20610 |
US $40.77 |
||
|
78120G
|
78120G
78120-20650 Rod Assy, Accelerator PedalACCELERATOR PEDAL [08.1995 - 10.1995] AT200,ST204..(CP,LB)..MTM |
78120-20650 |
US $40.91 |
||
|
78180P
|
78180P
78180-2D230
Cable Assy, Accelerator Control
[09.1993 - 08.1995] AT200 |
78180-2D230 |
— | ||
|
78180P
|
78180P
78180-2D470 Cable Assy, Accelerator ControlACCELERATOR CONTROL [08.1995 - 12.1997] AT200 |
78180-2D470 |
US $58.24 |
||
|
78183B
|
78183B
78183-20270 Clamp, Accelerator Control Cable[09.1993 - 12.1997] AT200 |
78183-20270 |
US $3.64 |
||
|
78184B
|
78184B
78184-20250 Bracket, Accelerator Control CableACCELERATOR CONTROL CABLE [09.1993 - 12.1997] AT200 |
78184-20250 |
US $14.41 |
||
|
91511B0814
|
91511B0814
91511-B0814 BOLT |
91511-B0814 |
US $1.60 |
||
|
9011906141
|
9011906141
90119-06141
New Genuine Part
|
90119-06141 |
— | ||
| replacement | |||||
|
9011906141
|
9011906141
91651-40628 New Genuine Part |
91651-40628 |
US $0.61 |
||
|
9046915001
|
9046915001
90469-15001 New Genuine Part |
90469-15001 |
US $6.12 |
||
|
9165140622
|
9165140622
91651-40622 New Genuine Part |
91651-40622 |
US $0.67 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
