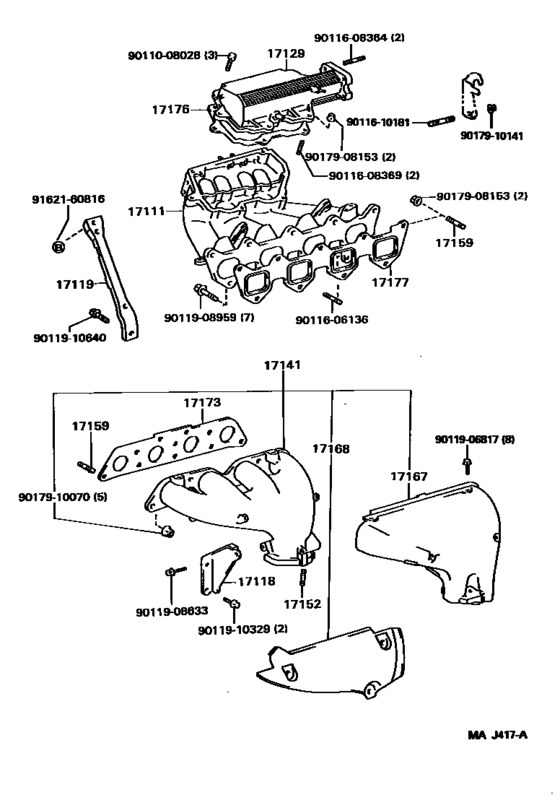

Manifold ([08.1995 - 12.1997] (9508-9712)7AFE) Diagram Toyota CELICA
- Year
- 1993 - 1997
- Sales region
- Europe
- Frame
- AT200
- grade
- ST
- body
- LB
- ENGINE
- 7AFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 09.1993
- To
- 12.1997
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17101-16190 Manifold, Intake[12.1993 - 08.1995] 7AFE..AT200 |
17101-16190 |
US $570.75 |
||
|
17111
|
17111
17101-16200 Manifold, IntakeINTAKE [09.1993 - 12.1993] 7AFE..AT200 |
17101-16200 |
US $650.83 |
||
| replacement | |||||
|
17111
|
17111
17101-16190 Manifold, Intake[09.1993 - 12.1993] 7AFE..AT200 |
17101-16190 |
US $570.75 |
||
|
17111
|
17111
17101-16240 Manifold, IntakeINTAKE [08.1995 - 08.1997] 7AFE..AT200 |
17101-16240 |
US $652.29 |
||
| replacement | |||||
|
17111
|
17111
17101-16260 Manifold, IntakeINTAKE [08.1995 - 08.1997] 7AFE..AT200 |
17101-16260 |
US $653.74 |
||
|
17111
|
17111
17101-16260 Manifold, IntakeINTAKE [08.1997 - 12.1997] 7AFE..AT200 |
17101-16260 |
US $653.74 |
||
|
17118
|
17118
17118-16120 Stay, ManifoldMANIFOLD [09.1993 - 05.1995] 7AFE..AT200 |
17118-16120 |
US $14.27 |
||
| replacement | |||||
|
17118
|
17118
17118-16160 Stay, ManifoldMANIFOLD [09.1993 - 05.1995] 7AFE..AT200 |
17118-16160 |
US $14.41 |
||
|
17118
|
17118
17118-16130 Stay, ManifoldMANIFOLD [08.1995 - 12.1997] 7AFE..AT200 |
17118-16130 |
US $32.47 |
||
|
17118
|
17118
17118-16160 Stay, ManifoldMANIFOLD [05.1995 - 08.1995] 7AFE..AT200 |
17118-16160 |
US $14.41 |
||
|
17119
|
17119
17012-16040 Stay, Manifold, No.2MANIFOLD, NO.2 [09.1993 - 08.1995] 7AFE..AT200 |
17012-16040 |
US $46.01 |
||
|
17119
|
17119
17139-16130 Stay, Manifold, No.2MANIFOLD, NO.2 [08.1995 - 12.1997] 7AFE..AT200 |
17139-16130 |
US $32.47 |
||
|
17129
|
17129
17109-16020 Tank, Intake Air Surge[09.1993 - 08.1995] 7AFE..AT200 |
17109-16020 |
US $484.85 |
||
|
17129
|
17129
17109-16050
Tank, Intake Air Surge
[08.1995 - 12.1997] 7AFE..AT200 |
17109-16050 |
— | ||
|
17141
|
17141
17141-16290
Manifold, Exhaust
[09.1993 - 08.1995] 7AFE..AT200 |
17141-16290 |
— | ||
|
17141
|
17141
17141-19015
Manifold, Exhaust
[08.1995 - 03.1996] 7AFE..AT200 |
17141-19015 |
— | ||
| replacements | |||||
|
17141
|
17141
17141-19016 Manifold, ExhaustEXHAUST [08.1995 - 03.1996] 7AFE..AT200 |
17141-19016 |
US $429.52 |
||
|
17141
|
17141
90119-06817 BOLT WWASHER[08.1995 - 03.1996] 7AFE..AT200 |
90119-06817 |
US $1.12 |
||
|
17141
|
17141
17141-19016 Manifold, ExhaustEXHAUST [03.1996 - 12.1997] 7AFE..AT200 |
17141-19016 |
US $429.52 |
||
|
17152
|
17152
90116-10146 Bolt, Stud(For Manifold To Exhaust Pipe)[09.1993 - 12.1997] 7AFE..AT200 |
90116-10146 |
from US $1.91 |
||
|
17159
|
17159
92112-60825 Bolt, Stud(For Oil Filter)[09.1993 - 12.1997] 7AFE..AT200 INTAKE MANIFOLD |
92112-60825 |
from US $1.56 |
||
|
17159
|
17159
92112-61028 Bolt, Stud(For Manifold To Cylinder Head)[09.1993 - 12.1997] 7AFE..AT200 EXHAUST MANIFOLD |
92112-61028 |
US $3.84 |
||
|
17167
|
17167
17167-15080 Insulator, Exhaust Manifold Heat, No.1[08.1995 - 12.1997] 7AFE..AT200 |
17167-15080 |
US $109.20 |
||
|
17167
|
17167
17167-16140 Insulator, Exhaust Manifold Heat, No.1[09.1993 - 03.1995] 7AFE..AT200 |
17167-16140 |
US $126.67 |
||
| replacement | |||||
|
17167
|
17167
17167-16141 Insulator, Exhaust Manifold Heat, No.1EXHAUST MANIFOLD HEAT, NO.1 [09.1993 - 03.1995] 7AFE..AT200 |
17167-16141 |
US $104.83 |
||
|
17167
|
17167
17167-16141 Insulator, Exhaust Manifold Heat, No.1EXHAUST MANIFOLD HEAT, NO.1 [03.1995 - 08.1995] 7AFE..AT200 |
17167-16141 |
US $104.83 |
||
|
17168
|
17168
17168-16071 Insulator, Exhaust Manifold Heat, No.2[08.1995 - 12.1997] 7AFE..AT200 |
17168-16071 |
US $30.14 |
||
|
17168
|
17168
17168-16110 Insulator, Exhaust Manifold Heat, No.2[09.1993 - 08.1995] 7AFE..AT200 |
17168-16110 |
US $24.90 |
||
|
17173
|
17173
17173-15040 Gasket, Exhaust Manifold To Head[09.1993 - 12.1997] 7AFE..AT200 |
17173-15040 |
from US $22.64 |
||
|
17176
|
17176
17176-15010 Gasket, Air Surge Tank To Intake Manifold[09.1993 - 08.1995] 7AFE..AT200 |
17176-15010 |
from US $7.08 |
||
|
17176
|
17176
17176-16020
Gasket, Air Surge Tank To Intake Manifold
[08.1995 - 12.1997] 7AFE..AT200 |
17176-16020 |
— | ||
|
17177
|
17177
17171-15030 Gasket, Intake Manifold To Head, No.1[09.1993 - 12.1997] 7AFE..AT200 |
17171-15030 |
from US $10.86 |
||
|
9011008028
|
9011008028
90110-08028 New Genuine Part |
90110-08028 |
US $1.14 |
||
|
9011606136
|
9011606136
90116-06136 BOLT |
90116-06136 |
US $2.08 |
||
|
9011608364
|
9011608364
90116-08364 New Genuine Part |
90116-08364 |
US $2.97 |
||
|
9011608369
|
9011608369
90116-08369
New Genuine Part
|
90116-08369 |
— | ||
|
9011610181
|
9011610181
90116-10181 New Genuine Part |
90116-10181 |
US $1.75 |
||
|
9011906817
|
9011906817
90119-06817 BOLT WWASHER |
90119-06817 |
US $1.12 |
||
|
9011908633
|
9011908633
90119-08633 New Genuine Part |
90119-08633 |
from US $1.60 |
||
|
9011908959
|
9011908959
90119-08959 New Genuine Part |
90119-08959 |
US $1.22 |
||
|
9011910329
|
9011910329
90119-10329 New Genuine Part |
90119-10329 |
US $1.60 |
||
|
9011910640
|
9011910640
90119-10640 New Genuine Part |
90119-10640 |
US $4 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $1.15 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.92 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $33.80 |
||
|
9017910141
|
9017910141
90179-10141
Nut(For Counter Gear Shaft)
|
90179-10141 |
— | ||
| replacement | |||||
|
9017910141
|
9017910141
90179-10132 Nut |
90179-10132 |
from US $0.99 |
||
|
9162160816
|
9162160816
91621-60816
New Genuine Part
|
91621-60816 |
— | ||
| replacement | |||||
|
9162160816
|
9162160816
91621-B0816 BOLT WWASHER |
91621-B0816 |
US $1.44 |
||
