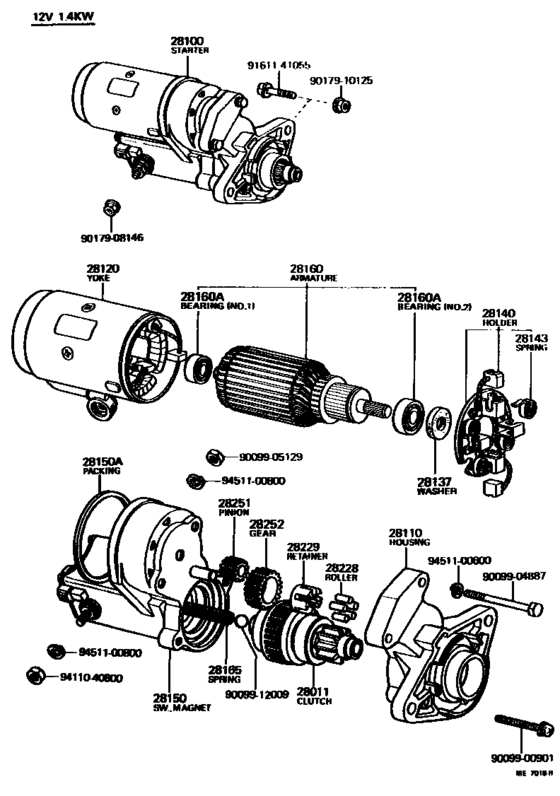

Starter ([01.1979 - ] (7901- )4ME,5ME) Diagram Toyota CELICA
- Year
- 1979 - 1980
- Sales region
- U.S.A.
- Frame
- MA46
- grade
- SPR
- body
- LB
- ENGINE
- 4ME
- TRANSMISSION
- ATM
- From
- 01.1979
- To
- 08.1980
- Gear Shift Type
- 4FC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
9009900901
|
9009900901
90099-00901
New Genuine Part
|
90099-00901 |
— | ||
|
9009904887
|
9009904887
90099-04887
New Genuine Part
|
90099-04887 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9017910125
|
9017910125
90179-10125
Nut(For Counter Gear Shaft)
|
90179-10125 |
— | ||
| replacement | |||||
|
9017910125
|
9017910125
90179-10132 Nut |
90179-10132 |
from US $0.94 |
||
|
9161141055
|
9161141055
91611-41055
Bolt(For Clutch Release Cylinder Setting)
|
91611-41055 |
— | ||
| replacement | |||||
|
9161141055
|
9161141055
91611-61055 Bolt(For Clutch Release Cylinder Setting) |
91611-61055 |
US $2.72 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.94 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
